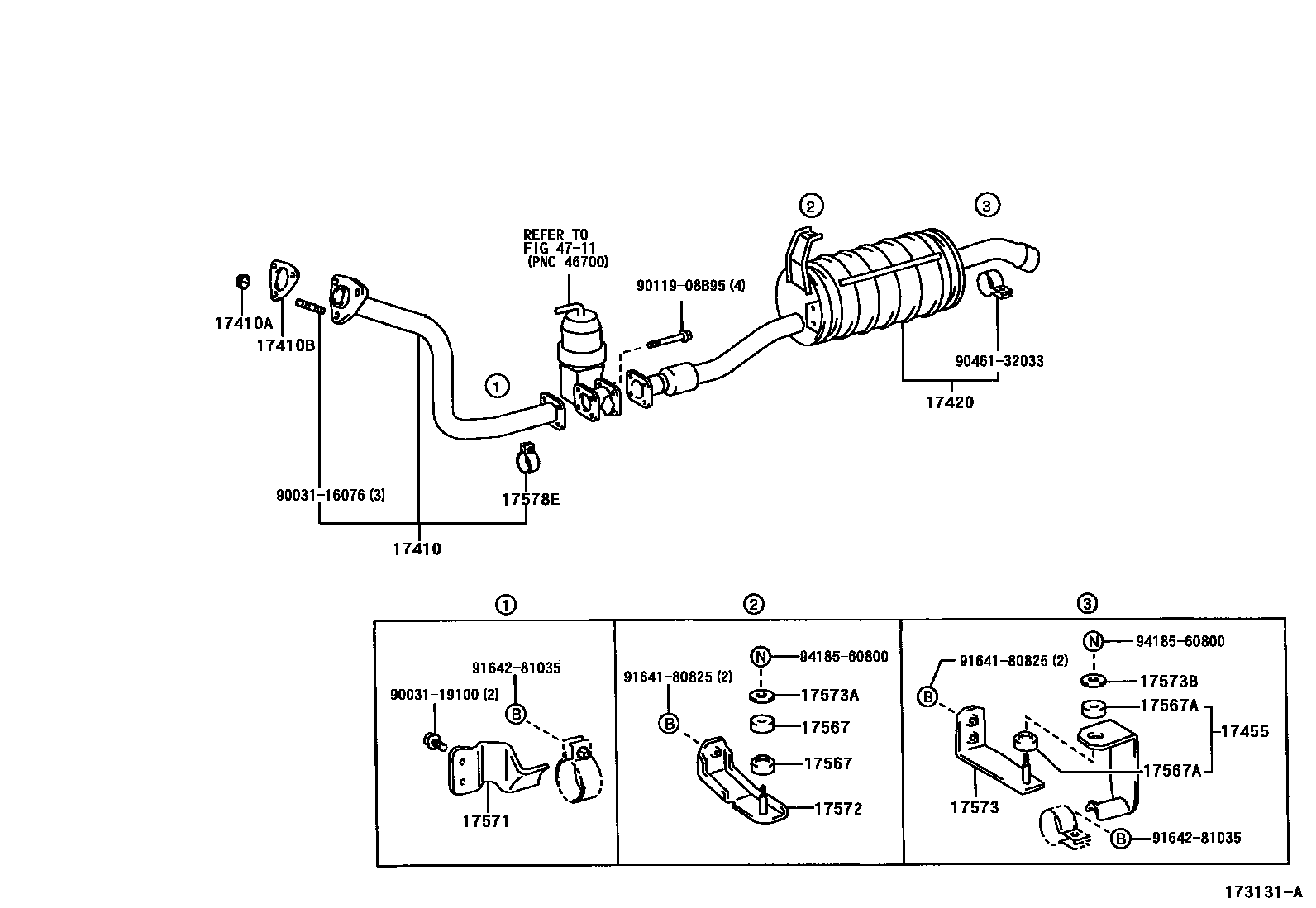

EXHAUST PIPE

0001 1SHORT TAIL PIPE 0002 1SHORT TAIL PIPE 0005 1LONG TAIL PIPE 0007 1LONG TAIL PIPE 0008 1VERTICAL TAIL PIPE 0009 1VERTICAL TAIL PIPE 0010 1 0011 1 0012 1 0013 1 0015 1VERTICAL TAIL PIPE 0016 1SHORT TAIL PIPE 0017 1LONG TAIL PIPE 0019 1 0020 1

17410PIPE ASSY, EXHAUST, FRONT

main17401-58320i15BFTE..BU410,420200411-200701

main17401-78050iJ05C..XZU420,430200304-200802

main17401-78060iS05C..XZU412,422..GEN..DSL200212-200610

main17401-78090iS05C..XZU412,422..GCC200302-200610

main17401-78100iS05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN200110-200802

main17401-78140iW04D..WU410,420..SA200212-200802

sub17401-78340

main17401-78201iN04C..XZU415,425,435200608-200708

main17401-78310iN04C..XZU417,427200701-200901

main17401-78320iN04C..XZU413,423,433200610-201106

main17401-78330iW04D..WU412,422200610-201106

main17401-78340iW04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN200610-201106

main17410-78050iN04C..XZU415,419,425,429,435,439200708-201208

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070iW04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,415,417,419,423,425,427,429,433,435,439..DCRTJ,DCRTK,DSL200110-201208

17410BGASKET, EXHAUST PIPE

main90917-06067i15BFTE..BU410,420200411-200701

main90917-06087iS05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN200110-200802

17420PIPE ASSY, EXHAUST, CENTER

main17403-58580i15BFTE..BU410,420200411-200506

sub17403-58630

main17403-58630i15BFTE..BU410,420200506-200701

main17403-78210iS05C..XZU414,424,434..EUR200110-200610

LONG TAIL PIPE

main17403-78210iS05C..XZU412,422..6F200401-200802

main17403-78220iS05C..XZU414,424..RHD..GEN;S05C..XZU404,412,422..5F..GEN..TD200110-200610

SHORT TAIL PIPE

main17403-78260iS05C..XZU412,422..GCC200302-200610

main17403-78390iS05C..XZU422..85T..DSL200212-200610

VERTICAL TAIL PIPE

main17403-78460iS05C..XZU412,422..GEN..DSL200212-200610

main17403-78480iW04D..WU410..GCC,GEN200212-201106

main17403-78520iS05C..XZU404,414,424,434..ARL;S05C..XZU412,422..5F..(75T,85T)..TD200212-200610

VERTICAL TAIL PIPE

main17403-78600iN04C..XZU415,425,435200608-200708

main17403-78840iN04C..XZU413,423..GEN200610-201106

main17403-78840iW04D..WU412,422..GCC200801-201106

EXHAUST TAIL PIPE=REAR

main17403-78860iN04C,W04D..WU412,422,XZU413,423,433200610-201106

SHORT TAIL PIPE

main17403-78880iN04C..XZU417,427200701-200901

main17403-78A30iW04D..WU422..GCC;W04D..WU412..GCC..IV3200610-201106

main17403-78A40iW04D..WU410..GCC200801-201106

EXHAUST TAIL PIPE=REAR

main17420-78340iN04C..XZU415,425,435200708-200905

*114=TOYOTA/7811/Y

main17420-78610iN04C..XZU419,429,439200908-201208

*114=TOYOTA/7828/Y

17455BRACKET, EXHAUST PIPE

main17455-78020iS05C..XZU412,422..6F;S05C..XZU412..RHD..TD;S05C..XZU414,424..LHD..GEN;S05C..XZU404,414,424,434..ARL,EUR200110-200802

LONG TAIL PIPE

main17455-78030iS05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD200212-200610

VERTICAL TAIL PIPE,NO.1

main17455-78030iW04D..WU422..GCC;W04D..WU412..GCC..IV3200610-201106

main17455-78040iS05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD200212-200610

VERTICAL TAIL PIPE,NO.2

main17455-78040iW04D..WU422..GCC;W04D..WU412..GCC..IV3200610-201106

NO.2

main17455-78060iS05C..XZU414,424..RHD..GEN;S05C..XZU404,412,422..5F..GEN..TD200110-200610

SHORT TAIL PIPE

main17455-78060iS05C..XZU412,422..6F;S05C..XZU414,424..LHD..GEN200501-200802

main17455-78070iS05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL200302-200610

SHORT TAIL PIPE

main17455-78070iW04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433200610-201106

NO.1

main17455-78070iJ05C,W04D..WU410,420,XZU420,430..SA200304-200802

main17455-78100iW04D..WU422..GCC;W04D..WU412..GCC..IV3200610-201106

NO.3

main17455-78100iS05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD200212-200610

VERTICAL TAIL PIPE,NO.3

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-78010iS05C..XZU414,424,434..EUR200110-200802

main17567-78030iN04C..XZU415,425,435200608-201208

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-78010iS05C..XZU414,424..ARL;S05C..XZU412,434..RHD..TD;S05C..XZU414,424..LHD..GEN200110-200610

LONG TAIL PIPE

main17567-78010iS05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD200110-200610

SHORT TAIL & VERTICAL TAIL PIPE

main17567-78010i15BFTE..BU410,420200304-200802

main17567-78010iW04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433200610-201106

EXHAUST TAIL PIPE=REAR

main17567-78040iN04C..XZU415,419,425,429,435,439200608-201208

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-58391i15BFTE..BU410,420200411-200701

main17571-78030iS05C..XZU414,424,434..EUR200110-200802

main17571-78040iW04D..WU410,420..SA200212-201106

sub17571-E0230

main17571-78050iN04C..XZU415,425,435200608-201208

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-78071iJ05C,S05C,W04D..WU410,420,XZU412,420,422,430..DSL200302-200401

main17572-78072iS05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL200401-201106

main17572-78130iS05C..XZU404,41#,422,424,434..TD200110-200401

main17572-78131iS05C..XZU414,424,434..EUR200401-200802

main17572-78181i15BFTE..BU410,420200411-200701

NO.1

main17572-78190i15BFTE..BU410,420200411-200505

NO.2

sub17572-78191

main17572-78191i15BFTE..BU410,420200506-200701

NO.2

main17572-78210iN04C..XZU415,425,435200608-201208

17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER

main17573-78082iW04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433200610-201106

EXHAUST TAIL PIPE=REAR

main17573-78082iS05C..XZU422..85T..DSL200212-200802

main17573-78130iS05C..XZU404200110-200610

main17573-78140iS05C..XZU414,434..ARL;S05C..XZU412..RHD..TD200212-200610

VERTICAL TAIL PIPE

main17573-78140iS05C..XZU414,434..EUR200110-200802

LONG TAIL PIPE,NO.1

main17573-78140iS05C..XZU414,434..ARL;S05C..XZU412..RHD..TD200212-200701

NO.1

main17573-78140iS05C..XZU414,434..ARL;S05C..XZU412..RHD..TD200212-200610

SHORT TAIL PIPE

main17573-78140iS05C..XZU414,434..ARL;S05C..XZU412..RHD..TD200212-200610

SHORT TAIL & VERTICAL TAIL PIPE

main17573-78140iS05C..XZU414..LHD..GEN200501-200802

main17573-78150iS05C..XZU422..5F..TD200212-200610

VERTICAL TAIL PIPE

main17573-78150iS05C..XZU424..LHD..GEN200110-200802

LONG TAIL PIPE,NO.1

main17573-78150iS05C..XZU424..ARL200212-200610

NO.1

main17573-78150iS05C..XZU422..6F200501-200802

main17573-78150iS05C..XZU424..ARL200212-200610

SHORT TAIL & VERTICAL TAIL PIPE

main17573-78160iS05C..XZU412,422..6F200110-200802

LONG TAIL PIPE,NO.2

main17573-78160i15BFTE..BU410200411-200701

NO.2

main17573-78230iN04C..XZU415,425,435200608-201208

NO.1

main17573-78240iN04C..XZU415,419,425,429,435,439200608-201208

NO.2

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main16721-78010iS05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL200110-201106

17573BBRACKET, EXHAUST PIPE SUPPORT, NO.5

main16721-78010iS05C..XZU414,424,434..EUR200110-200802

LONG TAIL PIPE

main16721-78010iS05C..XZU422..85T;S05C..XZU412..5F..TD;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..RHD200110-200610

SHORT TAIL & VERTICAL TAIL PIPE

main16721-78010i15BFTE..BU410200304-200802

main16721-78010iW04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433200610-201106

EXHAUST TAIL PIPE=REAR

17578CLAMP, PIPE

main17578-78010iW04D..WU410..65T;W04D..WU410..75T..GEN;N04C,W04D..WU412,42#,XZU413,423,433200304-201106

main17578-78010iS05C,W04D..WU410,XZU412,422..(GCC,GEN)..DSL200212-200610

SHORT TAIL PIPE

main17578-78030iN04C..XZU413,417,423,427..LHD200610-201106

NO.1

main17578-78030iW04D..WU422..GCC;W04D..WU412..GCC..IV3200610-201106

EXHAUST TAIL PIPE=REAR

main17578-78060iS05C..XZU414,424..ARL;S05C..XZU412,434..RHD..TD;S05C..XZU414,424..LHD..GEN200110-200802

LONG TAIL PIPE

main17578-78060iS05C..XZU422..85T;S05C..XZU422..5F..75T..TD;S05C..XZU404,414,424,434..ARL;S05C..XZU412..5F..(75T,85T)..TD200212-200701

main17578-78060iW04D..WU422..GCC;W04D..WU412..GCC..IV3200610-201106

NO.2

17578ECLAMP, PIPE(FOR FRONT EXHAUST PIPE)

main17578-78010iS05C..XZU414,424,434..EUR200212-201208

4711

9003116076

main90031-16076

9003119100

main90031-19100

9011908B95

main90119-08B95

9046132033

main90461-32033

9164180825

main91641-80825

9164281035

main91642-81035

9418560800

main94185-60800

22 parts on this diagram · 15 diagrams in section
