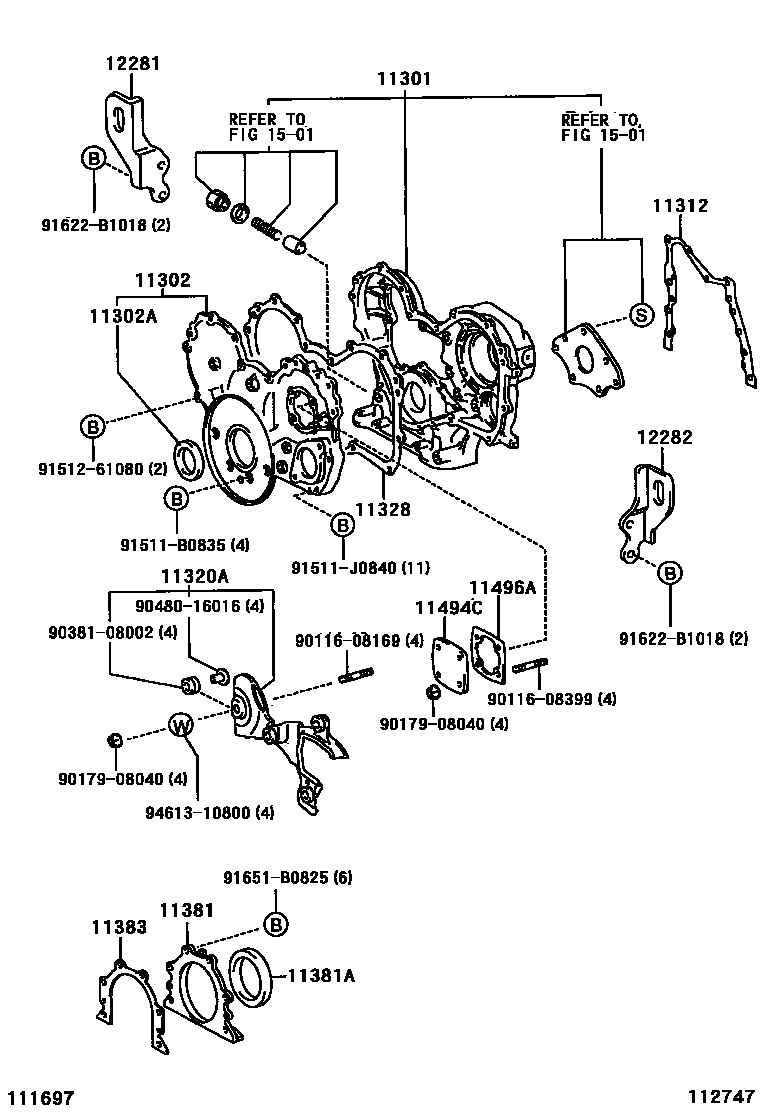

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0012 1 0013 1 0014 1 0015 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-58040i15BFTE..BU410,420200411-200701

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-58060i15BFTE..BU410,420200411-200701

main11302-78040iW04D..WU420;W04D..WU410..65T..SA200212-201106

NO.1

subS1369-01210

main11302-78050iW04D..WU412,422200610-201106

NO.1

subS1369-01220

main11321-78042iW04D..WU420;W04D..WU410..65T..SA200212-201106

NO.2

sub11310-78021

main11321-78072iW04D..WU412,422200610-201106

NO.2

sub11310-78031

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90033-11040iW04D..WU410..GCC,GEN200212-201106

main90311-50013i15BFTE..BU410,420200411-200701

11312GASKET, FRONT END PLATE

main11312-58010i15BFTE..BU410,420200411-200701

main11312-78011iW04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN200212-201106

subS1131-21170

11320ACOVER ASSY, TIMING GEAR, NO.2

main11320-58030i15BFTE..BU410,420200411-200701

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-58020i15BFTE..BU410,420200411-200701

11381RETAINER, ENGINE REAR OIL SEAL

main11309-89101iS05C..XZU414,424,434..EUR200110-200802

sub11309-E0010

main11381-58011i15BFTE..BU410,420200411-200701

11381ASEAL, ENGINE REAR OIL

main90033-19007iS05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN200110-200802

subSZ311-01045

main90311-95011i15BFTE..BU410,420200411-200701

main90311-99002iN04C..XZU415,425,435200212-201106

subSZ311-00004

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-56040i15BFTE..BU410,420200411-200701

11494CPLATE, OIL HOLE COVER

main11494-58020i15BFTE..BU410,420200411-200701

11496AGASKET, OIL HOLE COVER

main11496-58010i15BFTE..BU410,420200411-200701

12281HANGER, ENGINE, NO.1

main12281-58010i15BFTE..BU410,420200411-200701

main12281-78010iW04D..WU412,422200610-201106

subS1228-11320

main12281-78040iS05C..XZU404,412,422..5F;S05C..XZU414,424,434..ARL,GEN200110-200802

subS1228-11901

main12281-78050iW04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN200212-201106

subS1228-12240

12282HANGER, ENGINE, NO.2

main12282-58030i15BFTE..BU410,420200411-200701

1501

9011608169

main90116-08169

9011608399

main90116-08399

9017908040

main90179-08040

9038108002

main90381-08002

9048016016

main90480-16016

91511B0835

main91511-B0835

91511J0840

main91511-J0840

9151261080

main91512-61080

91622B1018

main91622-B1018

91651B0825

main91651-B0825

9461310800

main94613-10800
