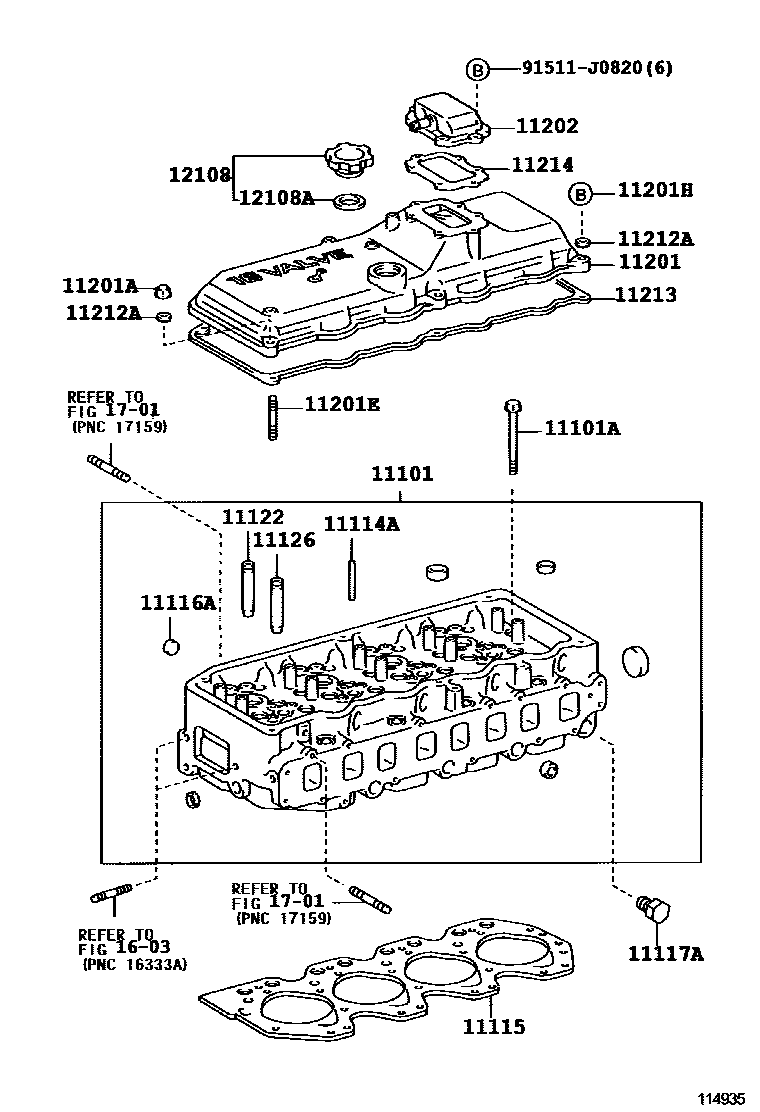

CYLINDER HEAD

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1 0009 1

11101HEAD SUB-ASSY, CYLINDER

main11101-58100i15BFTE..BU410,420200411-200701

main11101-78030iW04D..WU410,420200212-200403

main11101-78031iW04D..WU41#,422201007-201106

sub11101-E0A31

main11101-78051iJ05C..XZU420,430200304-200411

sub11101-78052

main11101-78052iJ05C..XZU420,430200411-200704

sub11101-78053

main11101-78053iJ05C..XZU420,430200704-200802

sub11101-78054

main11101-78061iS05C..XZU412,422..DSL200212-200411

sub11101-78062

main11101-78062iS05C..XZU412,422..DSL200411-200610

sub11101-78063

main11101-78090iS05C..XZU404,414,424,434200110-200202

sub11101-78091

main11101-78091iS05C..XZU404,41#,422,424,434..TD200202-200411

sub11101-78092

main11101-78092iS05C..XZU412,422..5F..TD;S05C..XZU404,414,424,434..ARL,GEN200411-200704

sub11101-78093

main11101-78093iS05C..XZU412,422200704-200802

sub11101-78094

main11101-78170iN04C..XZU415,425,435200608-200811

sub11101-78171

sub17107-78162

sub17505-78162

main11101-78171iN04C..XZU41#,42#,43#200811-201009

sub11101-78210

main11101-78172iN04C..XZU41#,42#,439201009-201106

sub11101-78210

main11101-78210iN04C..XZU419,429,439201106

sub11101-78221

subSN411-02216

main11110-78180iW04D..WU420;W04D..WU410..65T;W04D..WU410..75T..GEN200403-201007

sub11110-78181

sub11101-78030

sub90031-16069

sub90116-08173

main11110-78190iW04D..WU412,422200610-201007

sub11110-78191

11101ABOLT(FOR CYLINDER HEAD SET)

main90031-01199iW04D..WU410..75T..SA200610-201106

NO.1

main90031-01200iW04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN200610-201106

NO.2

main90031-05144iN04C..XZU415,425,435200608-200708

NO.1

main90031-09051iJ05C,S05C..XZU412,420,422,430..6F200110-200802

NO.1

subS1118-52261

main90038-01023iJ05C,S05C..XZU412,420,422,430..6F200110-200802

NO.2

subS1118-52450

main90038-01024iS05C..XZU414,424,434..EUR200110-200802

NO.3

subS1118-52460

main90105-12073iW04D..WU410,420200212-200610

NO.1

sub90031-01199

main90105-12074iW04D..WU410,420200212-200610

NO.2

sub90031-01200

main90910-02084i15BFTE..BU410,420200411-200701

main90910-02155iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200608-200708

NO.2

11114APIN, STRAIGHT

main90250-09007i15BFTE..BU410,420200411-200701

L=53.5,OD=9

11115GASKET, CYLINDER HEAD

main11115-58160i15BFTE..BU410,420200411-200701

T=1.20

main11115-58170i15BFTE..BU410,420200411-200701

T=1.30

main11115-58210i15BFTE..BU410,420200411-200701

T=1.40

main11115-78012iW04D..WU410,420200212-200610

subS1111-52340

main11115-78021iS05C..XZU404,414,424,434200110-200112

sub11115-78030

main11115-78030iJ05C,S05C..XZU404,41#,42#,43#200112-200312

sub11115-78060

main11115-78051iN04C..XZU415,425,435200608-201105

sub11115-78080

main11115-78060iS05C..XZU414,424,434..EUR200312-200802

sub11115-78090

main11115-78080iW04D..WU410..75T..SA200610-201106

sub11115-E0030

main11115-E0030iN04C..XZU41#,42#,439201105

sub11115-E0031

11116APLUG, TIGHT, NO.1

main90033-31028iW04D..WU41#,422201007-201106

TYPE B:REFER ILLUST.

subSN411-01412

main90331-14005iW04D..WU420;W04D..WU410..65T..SA200212-200802

main90331-14005iW04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN200610-201106

TYPE A:REFER ILLUST.

main90331-14006i15BFTE..BU410,420200411-200701

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90345-54005i15BFTE..BU410,420200411-200701

11122BUSH, INTAKE VALVE GUIDE

main11122-58020i15BFTE..BU410,420200411-200701

STD

main11122-89101iJ05C,S05C..XZU412,420,422,430..6F200110-201106

STD

subS1112-21220

main11122-89102iW04D..WU410,420200212-201106

STD

subS1112-21250

mainS111221220iN04C..XZU419,429,439201106

STD

11126BUSH, EXHAUST VALVE GUIDE

main11122-58020i15BFTE..BU410,420200411-200701

STD

main11122-89101iJ05C,S05C..XZU412,420,422,430..6F200110-201106

STD

subS1112-21220

main11122-89102iW04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN200212-201106

STD

subS1112-21250

mainS111221220iN04C..XZU419,429,439201106

STD

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-58070i15BFTE..BU410,420200411-200701

main11201-78030iN04C..XZU415,425,435200608-200708

sub11201-E0051

main11211-78010iW04D..WU410..75T..SA200212-201106

sub11211-E0240

main11211-78021iS05C..XZU412,422..DSL200212-200802

subS1121-12993

main11211-78030iS05C..XZU414,424,434..EUR200110-200802

subS1121-13170

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90179-08040i15BFTE..BU410,420200411-200701

11201EBOLT, STUD(FOR CYLINDER HEAD COVER SET)

main92112-80835i15BFTE..BU410,420200411-200701

11201HBOLT(FOR CYLINDER HEAD COVER)

main90031-05123iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200608-200708

NO.1

main90031-05128iJ05C,S05C..XZU412,420,422,430..6F200110-200802

main90031-05133iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200608-200708

NO.2

main91511-B0835i15BFTE..BU410,420200411-200701

sub90105-08200

11202COVER SUB-ASSY, CYLINDER HEAD, LH

main11202-58010i15BFTE..BU410,420200411-200701

11212ACUSHION, CYLINDER HEAD COVER

main11228-56010i15BFTE..BU410,420200411-200701

11213GASKET, CYLINDER HEAD COVER

main11213-58021i15BFTE..BU410,420200411-200701

main11213-78010iW04D..WU420;W04D..WU410..65T..SA200212-201106

subS1121-31550

main11213-78020iJ05C,S05C..XZU412,420,422,430..6F200110-200802

subS1121-32020

main11213-78030iN04C..XZU415,425,435200608-201107

sub11213-78070

main11213-78070iN04C..XZU419,429,439201107

sub11213-78071

11214GASKET, CYLINDER HEAD COVER, NO.2

main11214-58010i15BFTE..BU410,420200411-200701

main11214-78011iN04C..XZU413,415,417,419,423,425,427,429,433,435,439..DCRTK200608-200708

subS1121-32092

12108CAP SUB-ASSY, OIL FILLER

main12108-78010iW04D..WU412,42#;W04D..WU410..65T;W04D..WU410..75T..GEN200110-200901

sub12180-78010

main12180-55010i15BFTE..BU410,420200411-200701

main12180-78010iW04D..WU41#,422200901-201106

sub12180-E0010

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140i15BFTE..BU410,420200411-200701

1603

1701

91511J0820

main91511-J0820

21 parts on this diagram · 7 diagrams in section
