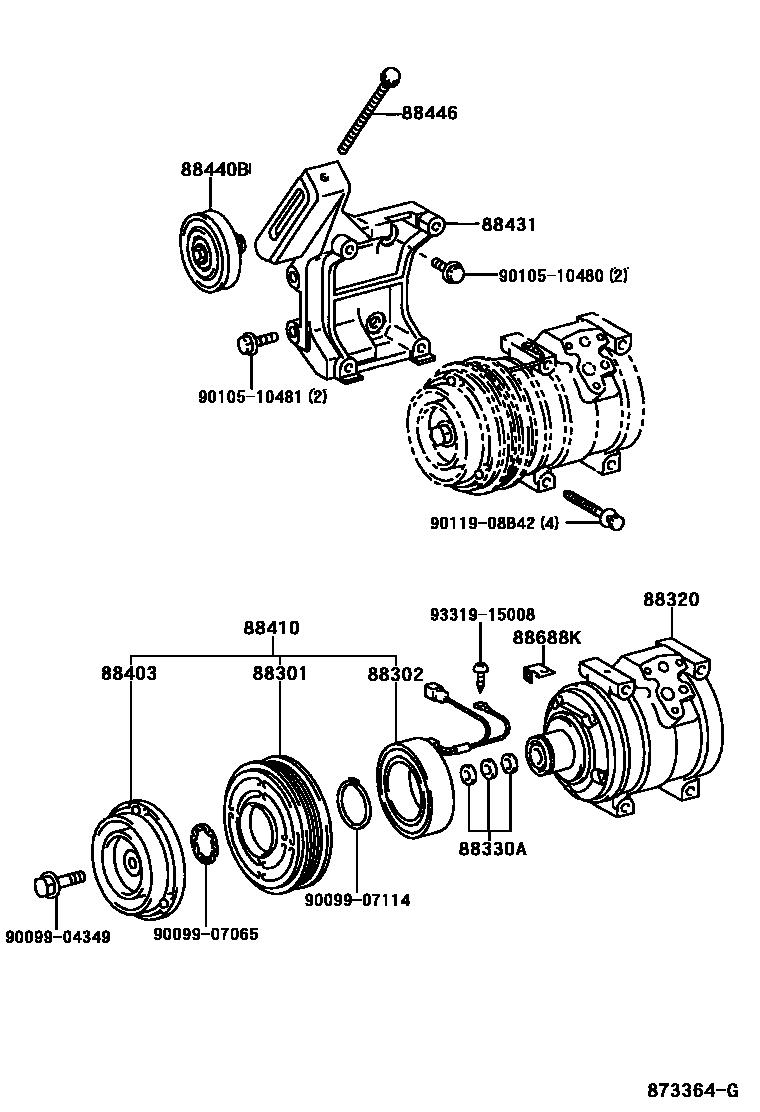

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1REFRIGERATOR CAR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-37010iXZU402,41#,420,430200010-200206

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-60090iXZU402,41#,420,430200010-200206

88320COMPRESSOR ASSY, COOLER

main88320-37070iXZU402,41#,420,430200010-200206

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iXZU402,41#,420,430200010-200206

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iXZU402,41#,420,430200010-200206

88410CLUTCH ASSY, MAGNET

main88410-37080iXZU402,41#,420,430200010-200206

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88345-37020iXZU402,411,412200010-200206

REFRIGERATOR CAR

main88345-37040iXZU410,420,430200010-200206

REFRIGERATOR CAR

main88345-37080iXZU410,420,430200010-200206

sub88345-37090

main88345-37090iXZU402,411,412200010-200206

88440BPULLEY ASSY, IDLE

main88440-37020iXZU402,41#,420,430200010-200206

88446BOLT, IDLE PULLEY

main90099-04306iXZU410,420,430200010-200206

main90105-08099iXZU402,411,412200010-200206

88688KBRACKET, COOLER COMPRESSOR

main88688-37800iXZU402,41#,420,430200010-200206

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9010510480

main90105-10480

9010510481

main90105-10481

9011908B42

main90119-08B42

9331915008

main93319-15008

17 parts on this diagram · 2 diagrams in section
