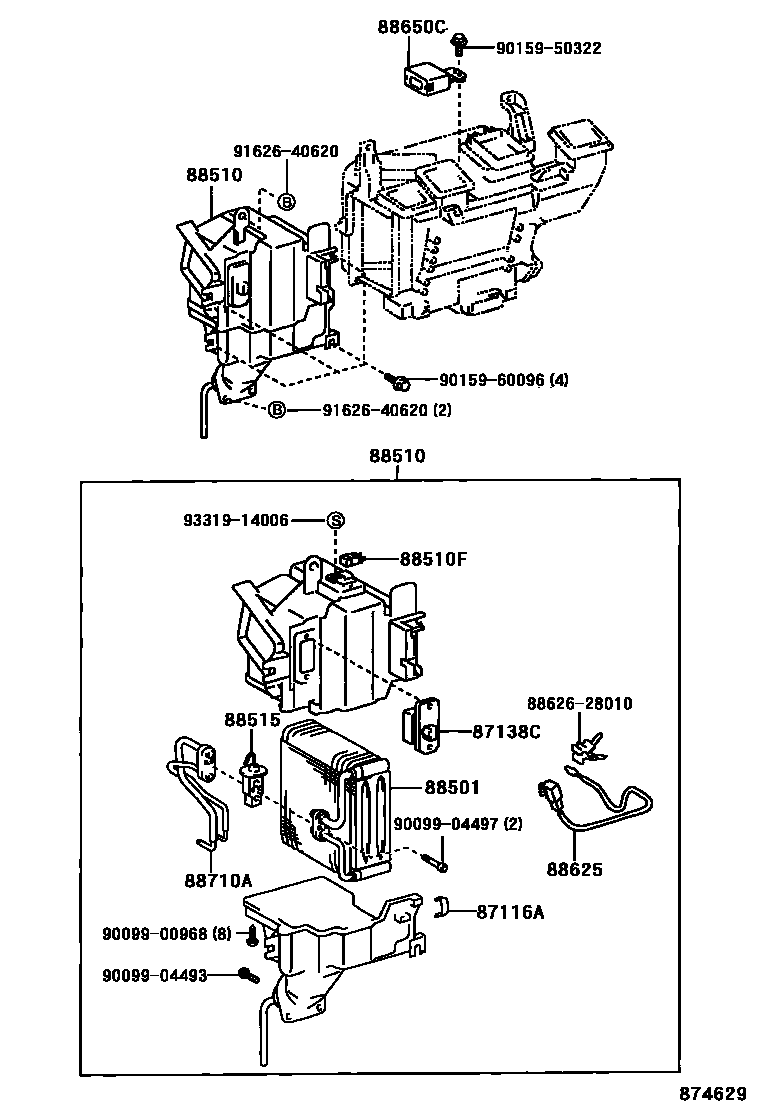

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1LEVER TYPE MANUAL A/C 0002 1AUTO A/C OR PUSH TYPE MANUAL 0003 1O-RING

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iXZU402,41#,420,430200010-200206

87138CRESISTOR, BLOWER

main87138-37090iXZU402,41#,420,430200010-200206

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37060iXZU402,41#,420,430200010-200206

88510UNIT ASSY, COOLER

main88510-37120iXZU402,41#,420,430200010-200206

main88510-37150iXZU402,41#,420,430200010-200206

W(AUTO AIR CONDITIONER) OR W(PUSH TYPE MANUAL AIR CONDITIONER)

88510FHOLDER, FUSE

main82630-95J03iXZU402,41#,420,430200010-200206

88515VALVE, COOLER EXPANSION

main88515-48040iXZU402,41#,420,430200010-200206

88625THERMISTOR, COOLER, NO.1

main88625-20460iXZU402,41#,420,430200010-200206

sub88625-32150

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-37150iXZU402,41#,420,430200010-200206

W(AUTO AIR CONDITIONER)

main88650-37170iXZU402,41#,420,430200010-200206

W(PUSH TYPE MANUAL AIR CONDITIONER)

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-37120iXZU402,41#,420,430200010-200206

88710ATUBE ASSY, AIR CONDITIONER

main88710-37340iXZU402,41#,420,430200010-200206

8862628010CASE, BLOWER DRIVE SHAFT BEARING

main88626-28010

9009900968

main90099-00968

9009904493

main90099-04493

9009904497

main90099-04497

9015950322

main90159-50322

9015960096

main90159-60096

9162640620

main91626-40620

9331914006

main93319-14006

18 parts on this diagram · 3 diagrams in section
