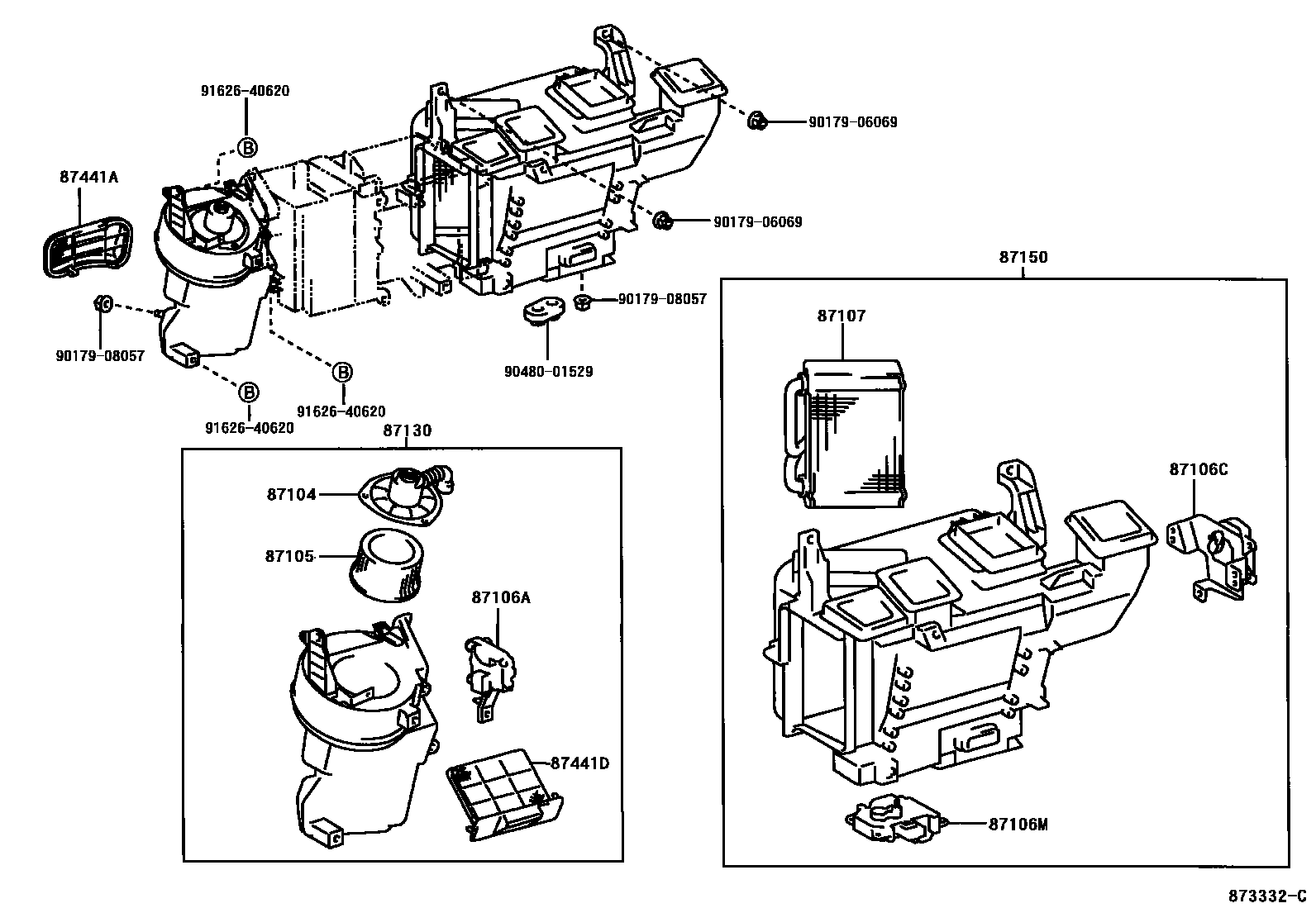

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-37140iXZU402,41#,420,430200010-200206

87105FAN SUB-ASSY, HEATER BLOWER

main87105-37030iXZU402,41#,420,430200010-200206

87106ASERVO SUB-ASSY, DAMPER

main87106-37010iXZU402,41#,420,430200010-200206

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-37020iXZU402,41#,420,430200010-200206

87106MSERVO SUB-ASSY, DAMPER, NO.2

main87106-37030iXZU402,41#,420,430200010-200206

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-37040iXZU402,41#,420,430200010-200206

87130BLOWER ASSY, HEATER, FRONT

main87130-37100iXZU402,41#,420,430200010-200206

sub87130-37101

main87130-37120iXZU402,41#,420,430200010-200206

W(AUTO AIR CONDITIONER) OR W(PUSH TYPE MANUAL AIR CONDITIONER)

87150RADIATOR ASSY, HEATER

main87150-37230iXZU402,41#,420,430200010-200206

sub87150-37310

main87150-37240iXZU402,41#,420,430200010-200206

W(AUTO AIR CONDITIONER)

main87150-37260iXZU402,41#,420,430200010-200206

W(PUSH TYPE MANUAL AIR CONDITIONER)

87441AFILTER, HEATER AIR

main87441-37010iXZU402,41#,420,430200010-200206

87441DFILTER, HEATER AIR, NO.2

main87441-37030iXZU402,41#,420,430200010-200110

main87441-37031iXZU402,41#,420,430200110-200206

9017906069

main90179-06069

9017908057

main90179-08057

9048001529

main90480-01529

9162640620

main91626-40620

14 parts on this diagram · 1 diagram in section
