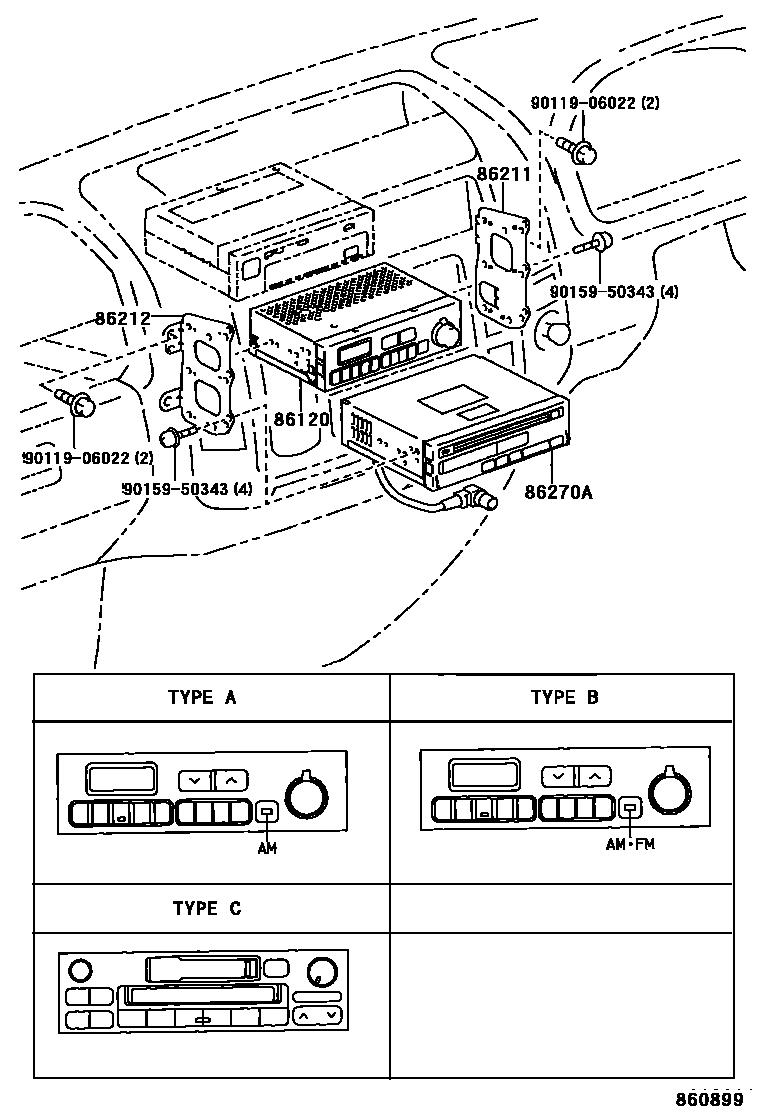

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-37090iXZU402,41#,420,430200010-200206

MATSUSHITA, ID=50170,TYPE A:REFER TO ILLUSTRATION

main86120-37100iXZU402,41#,420,430200010-200206

MATSUSHITA, ID=50270,TYPE B:REFER TO ILLUSTRATION

main86120-37110iXZU402,41#,420,430200010-200206

MATSUSHITA, ID=55270,TYPE C:REFER TO ILLUSTRATION

main86120-37160iXZU402,41#,420,430200010-200206

HINOJIDOU,TYPE C:REFER TO ILLUSTRATION, AUSTRALIA SPEC

86211BRACKET, RADIO, NO.1

main86211-37050iXZU402,41#,420,430200010-200206

86212BRACKET, RADIO, NO.2

main86212-37030iXZU402,41#,420,430200010-200206

sub86212-37031

86270ADISC PLAYER ASSY

main86270-37010iXZU402,41#,420,430200010-200206

9011906022

main90119-06022

9015950343

main90159-50343

6 parts on this diagram · 1 diagram in section
