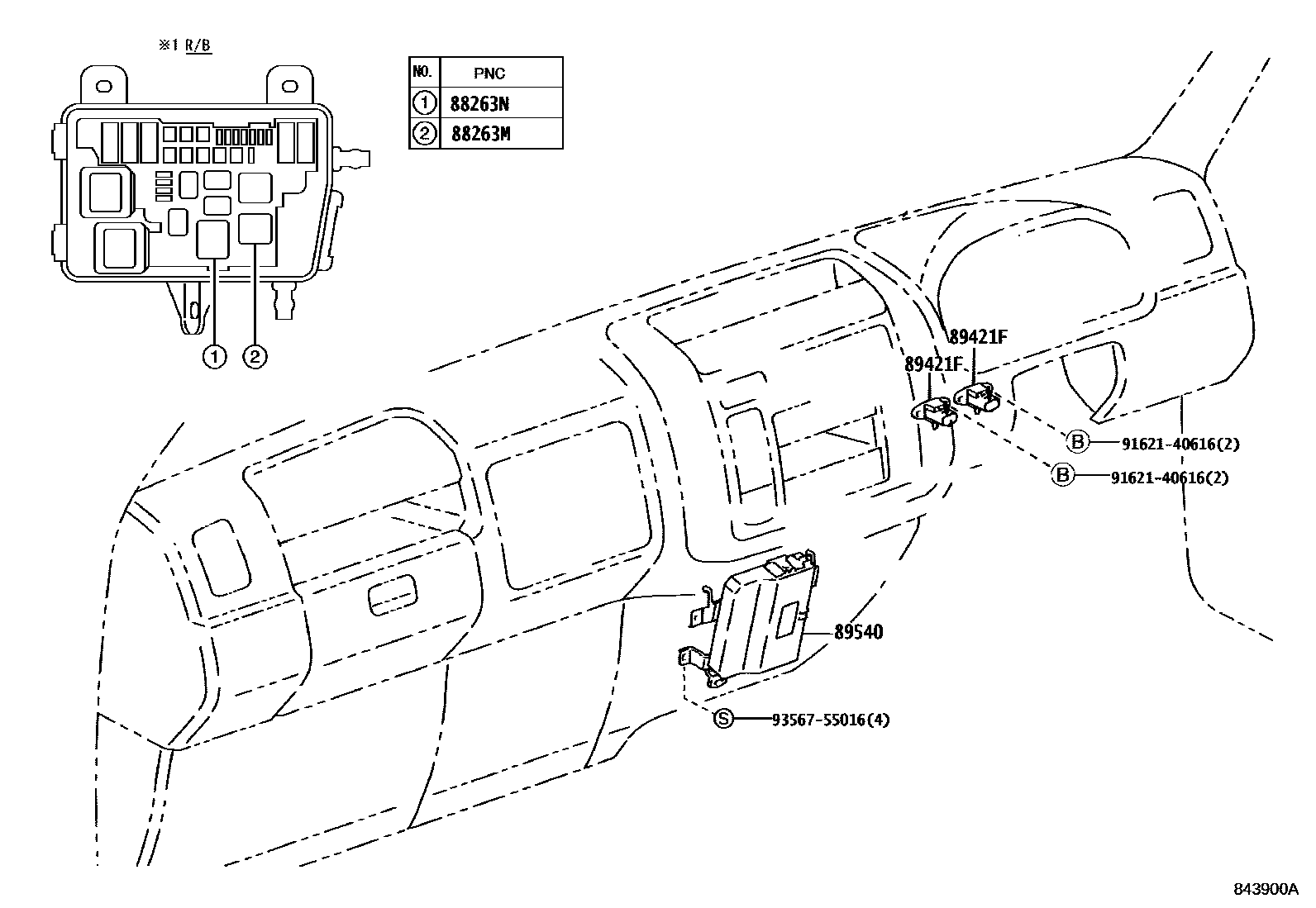

ABS & VSC

0001 1 0002 1FRONT SPEED SENSOR 0003 1REAR SPEED SENSOR

88263MRELAY, ABS SOLENOID

main88263-36050iXZU402,41#,420,430200010-200206

88263NRELAY, ABS MOTOR

main88263-36040iXZU402,41#,420,430200010-200206

89421FSENSOR, VACUUM (FOR SKID CONTROL)

main89421-37010iXZU402,41#,420,430200010-200206

sub89421-37030

89540COMPUTER ASSY, SKID CONTROL

main89540-37030iXZU402200010-200111

sub89540-37031

main89540-37031iXZU402200111-200206

main89540-37060iXZU412200010-200111

sub89540-37061

main89540-37061iXZU412200111-200206

main89540-37080iXZU410,411,420,430200010-200111

sub89540-37081

main89540-37081iXZU410,411,420,430200111-200206

sub89540-37082

9162140616

main91621-40616

9356755016

main93567-55016

6 parts on this diagram · 3 diagrams in section
