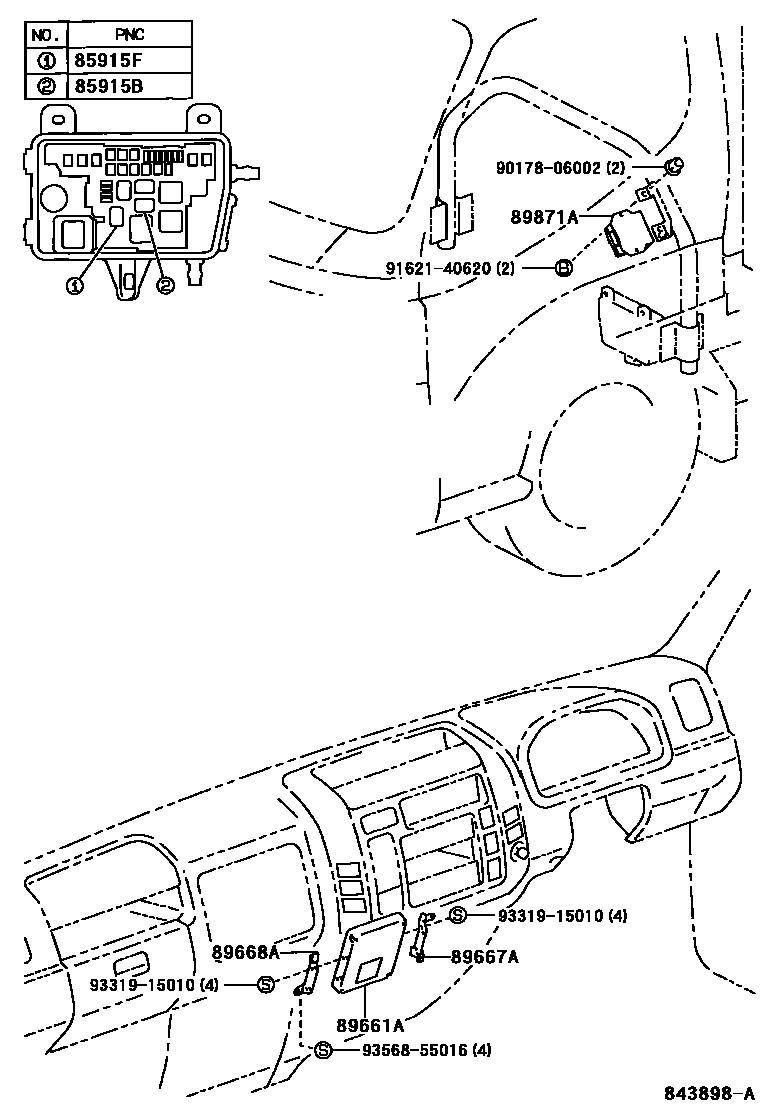

ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02017iXZU402,411,412200010-200206

85915FRELAY, SPILL VALVE

main90987-02017iXZU402,411,412200010-200206

89661ACOMPUTER, ENGINE CONTROL

main89561-37012iXZU411..MTM200010-200206

main89561-37022iXZU402,412200010-200206

main89561-37032iXZU411..ATM200010-200206

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-37010iXZU402,411,412200010-200206

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-37010iXZU402,411,412200010-200206

89871ADRIVER, INJECTOR

main89871-36010iXZU402,411,412200010-200206

9017806002

main90178-06002

9162140620

main91621-40620

9331915010

main93319-15010

9356855016

main93568-55016

10 parts on this diagram · 1 diagram in section
