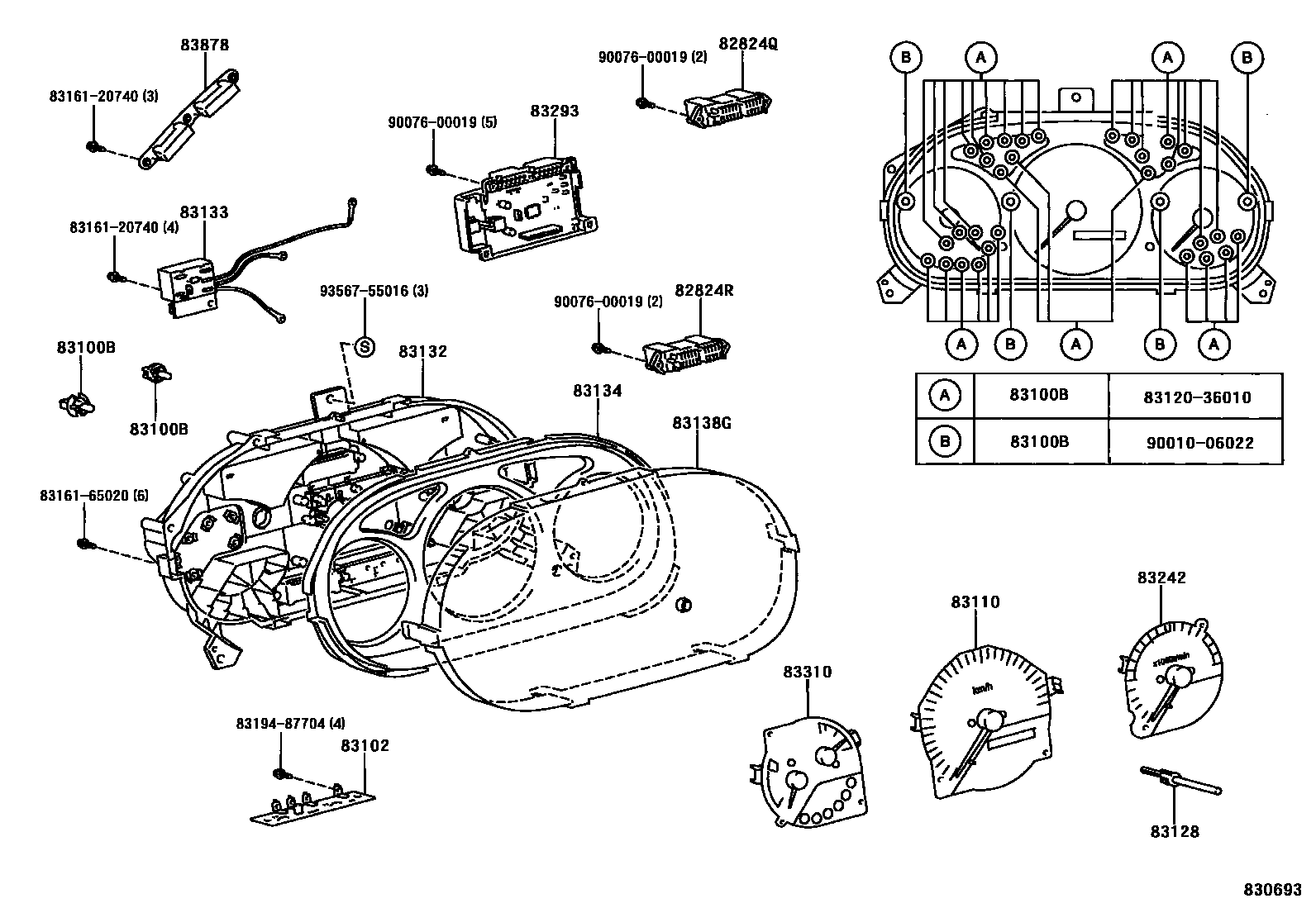

METER
82824QCONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER)
82824RCONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER)
83100BBULB, COMBINATION METER, NO.1
24V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION
24V 3W,W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83110SPEEDOMETER ASSY
AUSTRALIA SPEC
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
W(BRAKE LOCK LAMP) OR W(*80)
AUSTRALIA SPEC
AUSTRALIA SPEC
AUSTRALIA SPEC
83133PLATE, COMBINATION METER, NO.1
83134COVER, COMBINATION METER, NO.1
83138GGLASS, COMBINATION METER
83242TACHOMETER ASSY, ENGINE
83293COMPUTER, TOTAL COUNTER MODULE
AUSTRALIA SPEC
83310GAGE ASSY, FUEL RECEIVER
W(BRAKE LOCK LAMP) OR W(*80)
83878RESISTOR, COMBINATION METER
8316120740CASE, COMBINATION METER MIRROR, NO.1
main83161-20740
8316165020CASE, COMBINATION METER MIRROR, NO.1
main83161-65020
8319487704
main83194-87704
9007600019
main90076-00019
9356755016
main93567-55016
19 parts on this diagram · 3 diagrams in section
