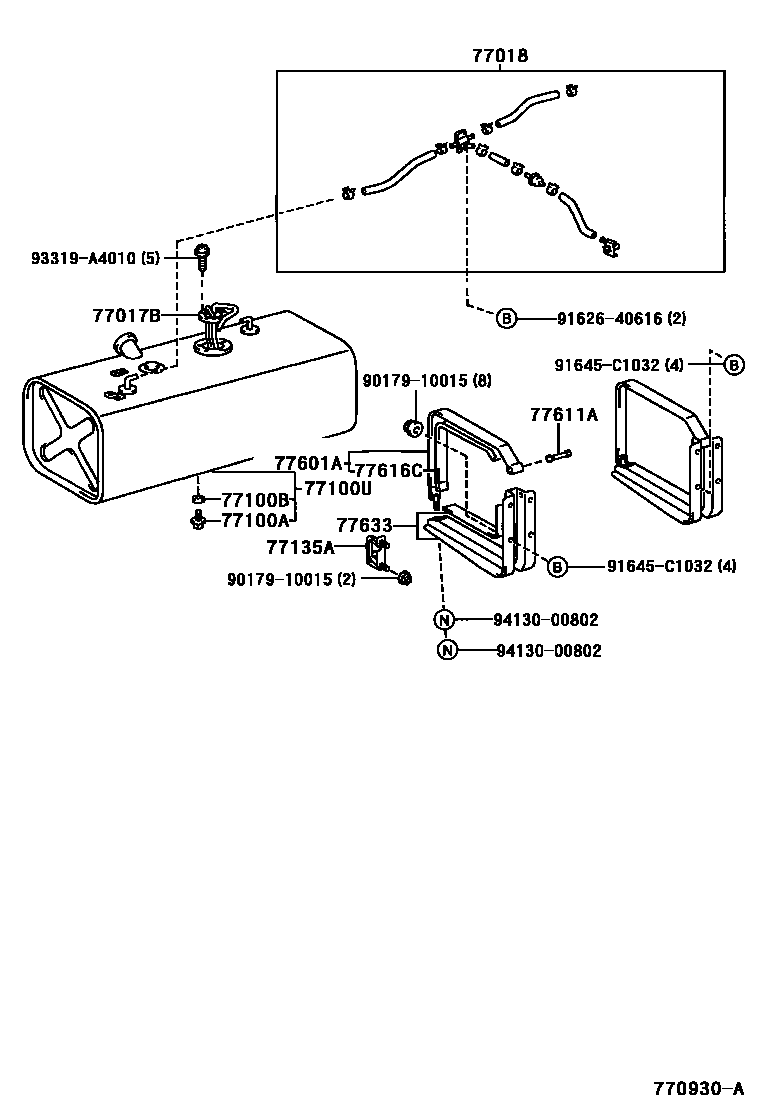

FUEL TANK & TUBE

0001 1FUEL TANK,AUSTRALIA SPEC 0002 1FUEL TANK 0003 1FUEL TANK W(SUB FUEL TANK) 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL CLAMP

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-37010iXZU402200010-200206

AUSTRALIA SPEC

main77017-37020iXZU402,411,412200010-200206

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-37040iXZU402,411,412200010-200206

main77018-37050iXZU410,420,430200010-200206

main77018-37060iXZU410,420,430200010-200206

W(SUB FUEL TANK)

sub77018-37061

main77018-37070iXZU402,41#,420,430200010-200206

AUSTRALIA SPEC

77100APLUG(FOR FUEL TANK)

main90105-12116iXZU402,41#,420,430200010-200206

77100BGASKET(FOR FUEL TANK)

main90430-12245iXZU402,41#,420,430200010-200206

77100UTANK SUB-ASSY, FUEL

main77001-36660iXZU402200010-200206

998X385X310,AUSTRALIA SPEC

main77001-37200iXZU402,411,412200010-200206

967X355X265

sub77001-37201

main77001-37220iXZU410,420,430200010-200206

960X310X385

sub77001-37221

main77001-37400iXZU41#,420,430200010-200206

1164X310X385,AUSTRALIA SPEC

sub77001-37401

77135APROTECTOR, FUEL TANK SIDE

main77135-37100iXZU402200010-200206

main77135-37110iXZU41#,420200010-200206

W(SUB FUEL TANK),MAIN TANK

main77135-37120iXZU420200010-200206

W(SUB FUEL TANK),SUB TANK

main77135-37130iXZU430200010-200206

W(SUB FUEL TANK),MAIN TANK

main77135-37140iXZU430200010-200206

main77135-37150iXZU430200010-200206

W(SUB FUEL TANK),SUB TANK

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-36090iXZU402,411,412200010-200206

main77601-36140iXZU402,41#,420,430200010-200206

AUSTRALIA SPEC

sub77601-37030

main77601-36140iXZU402,41#,420,430200010-200206

W(SUB FUEL TANK)

sub77601-37030

main77601-36150iXZU410,420,430200010-200206

sub77601-37040

77611BAND, FUEL TANK

main77616-36030iXZU410,420,430200010-200206

77611APIN (FOR FUEL TANK BAND)

main77629-36010iXZU402,41#,420,430200010-200206

77616CSEAT, FUEL TANK BAND

main77616-36010iXZU402,411,412200010-200206

main77616-36030iXZU402,411,412200010-200206

AUSTRALIA SPEC

77633STAY, FUEL TANK

main77501-37080iXZU410,420,430200010-200206

main77633-37100iXZU410,420,430200010-200206

AUSTRALIA SPEC

main77633-37100iXZU410,420,430200010-200206

W(SUB FUEL TANK)

main77633-37110iXZU402,411,412200010-200206

9017910015

main90179-10015

9162640616

main91626-40616

91645C1032

main91645-C1032

93319A4010

main93319-A4010

9413000802

main94130-00802
