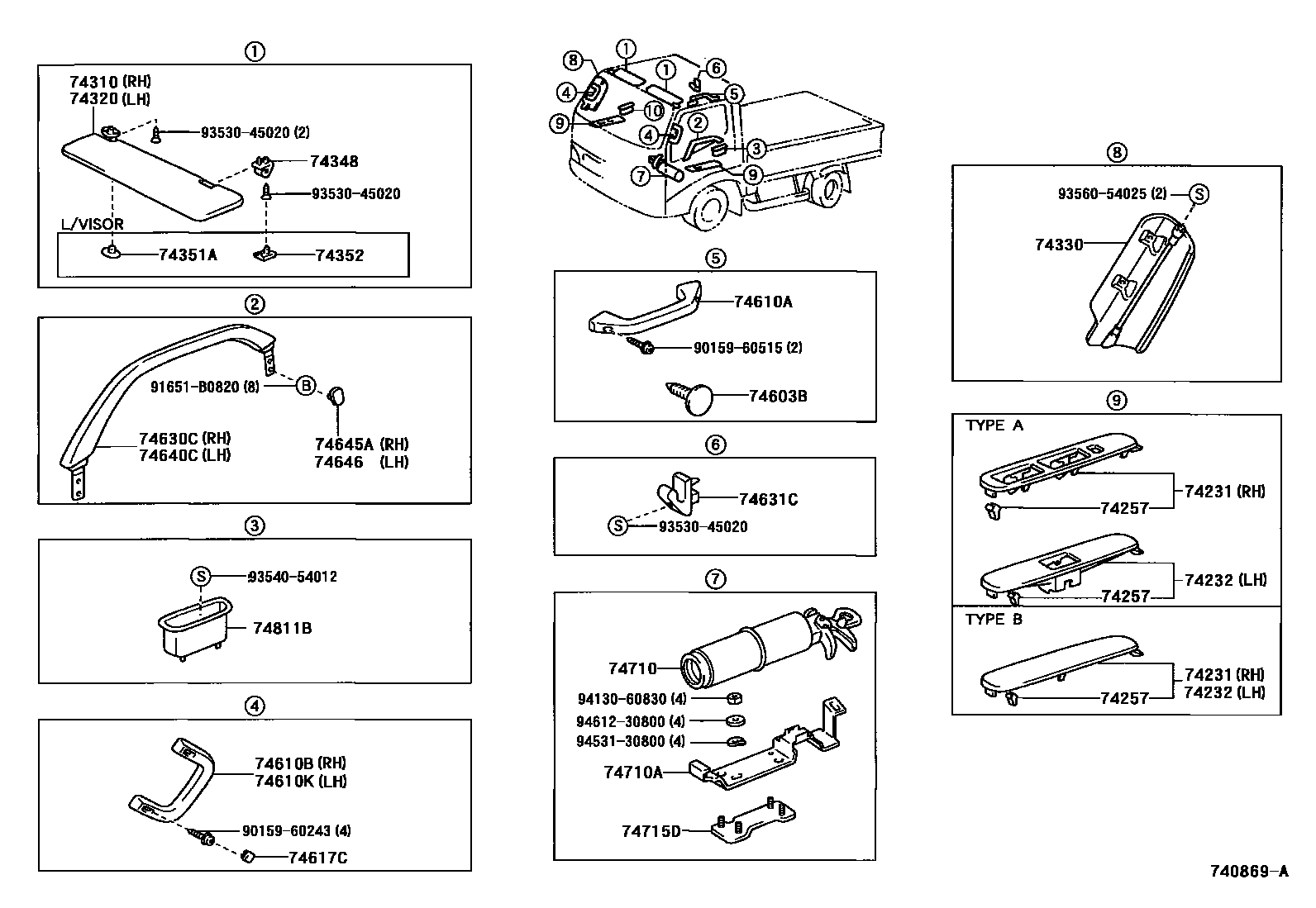

ARMREST & VISOR
74231PANEL, FRONT ARMREST BASE, UPPER RH
TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#
TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION, WOOD GRAIN
TYPE A:REFER TO ILLUSTRATION, WOOD GRAIN
TYPE A:REFER TO ILLUSTRATION, WOOD GRAIN
74232PANEL, FRONT ARMREST BASE, UPPER LH
TYPE B:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION,MD.CHARCOAL,TRIM1#
TYPE A:REFER TO ILLUSTRATION, WOOD GRAIN
74257SPRING, ARMREST, NO.1
74310VISOR ASSY, RH
MD.CHARCOAL,TRIM1#
W(*80),MD.CHARCOAL,TRIM1#
AUSTRALIA SPEC,MD.CHARCOAL,TRIM1#
74320VISOR ASSY, LH
MD.CHARCOAL,TRIM1#
W(*80,DRIVER SIDE & PASSENGER SIDE),MD.CHARCOAL,TRIM1#
AUSTRALIA SPEC,MD.CHARCOAL,TRIM1#
74330VISOR ASSY, FRONT PILLAR
MD.CHARCOAL,TRIM1#
74348HOLDER, VISOR
MD.CHARCOAL,TRIM1#
74351ACOVER, VISOR, NO.1
74352COVER, VISOR, NO.2
74603BCLIP (FOR ASSIST GRIP)
MD.CHARCOAL,TRIM1#
74610AGRIP SUB-ASSY, ASSIST
MD.CHARCOAL,TRIM1#
74610BGRIP ASSY, ASSIST, NO.2 RH
74610KGRIP ASSY, ASSIST, NO.2 LH
74617CPLUG, ASSIST GRIP
MD.CHACOAL,TRIM1#
74630CGRIP ASSY, DOOR ASSIST, RH
MD.CHARCOAL,TRIM1#
74631CHOOK, COAT
MD.CHARCOAL,TRIM1#
74640CGRIP ASSY, DOOR ASSIST, LH
MD.CHARCOAL,TRIM1#
74645ACOVER, DOOR ASSIST GRIP, RH
MD.CHARCOAL,TRIM1#
74646COVER, DOOR ASSIST GRIP, LH
MD.CHARCOAL,TRIM1#
74710EXTINGUISHER ASSY
74710ABRACKET, EXTINGUISHER
74715DRETAINER, EXTINGUISHER, NO.1
74811BHANDLE, DOOR PULL
MD.CHARCOAL,TRIM1#
9015960243
main90159-60243
9015960515
main90159-60515
91651B0820
main91651-B0820
9353045020
main93530-45020
9354054012
main93540-54012
9356054025
main93560-54025
9413060830
main94130-60830
9453130800
main94531-30800
9461230800
main94612-30800
32 parts on this diagram · 1 diagram in section
