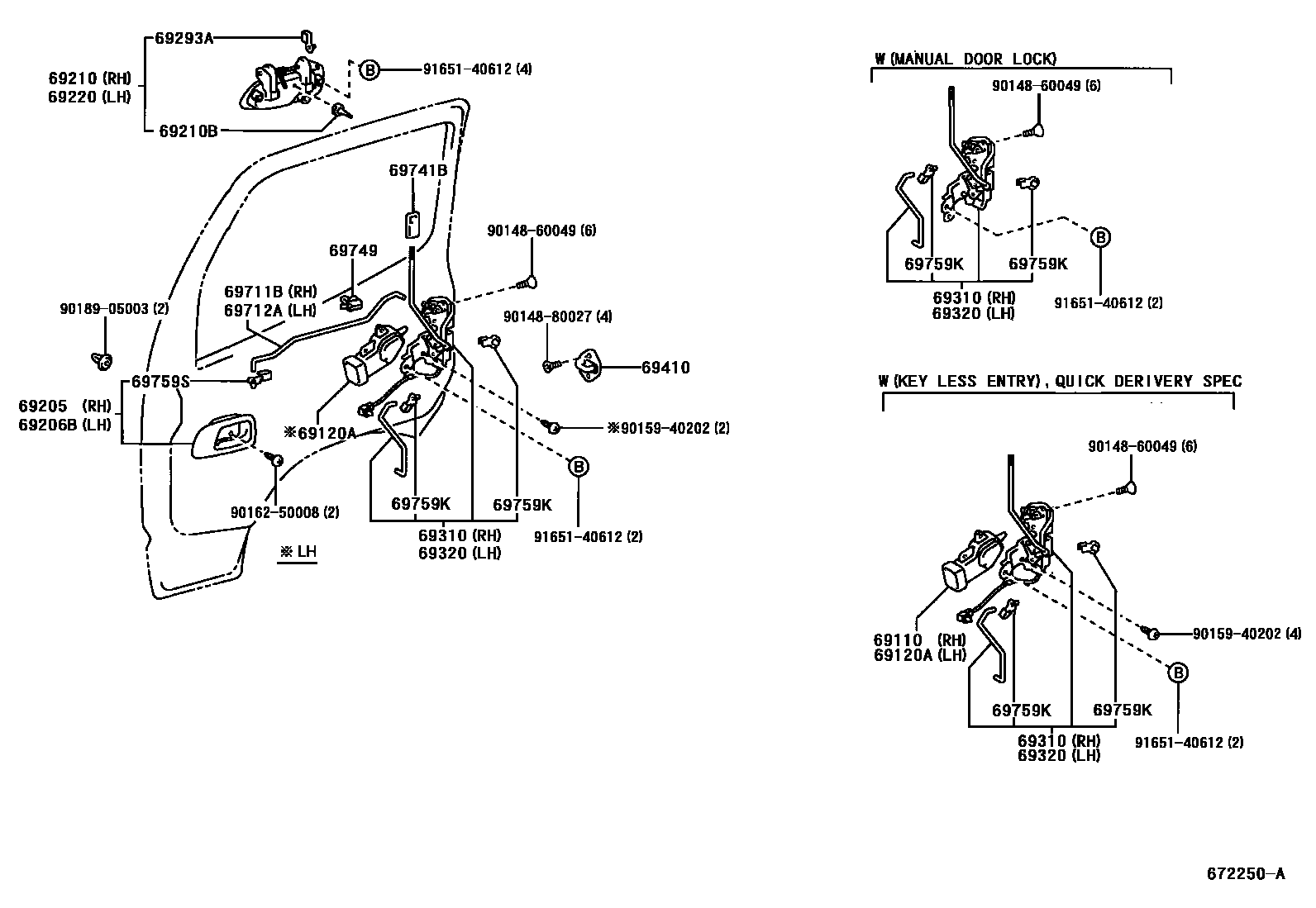

FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
MD.CHARCOAL,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
MD.CHARCOAL,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(MANUAL DOOR LOCK)
W(KEY LESS ENTRY)
69320LOCK ASSY, FRONT DOOR, LH
QUICK DELIVERY SPEC
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
69749CLAMP, FRONT DOOR LOCK LINK
69759KSNAP, DOOR LOCK CONTROL LINK
YELLOW
BROWN
NATURAL
BLUE
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH
RH
9014860049
main90148-60049
9014880027
main90148-80027
9015940202
main90159-40202
9016250008
main90162-50008
9018905003
main90189-05003
9165140612
main91651-40612
23 parts on this diagram · 1 diagram in section
