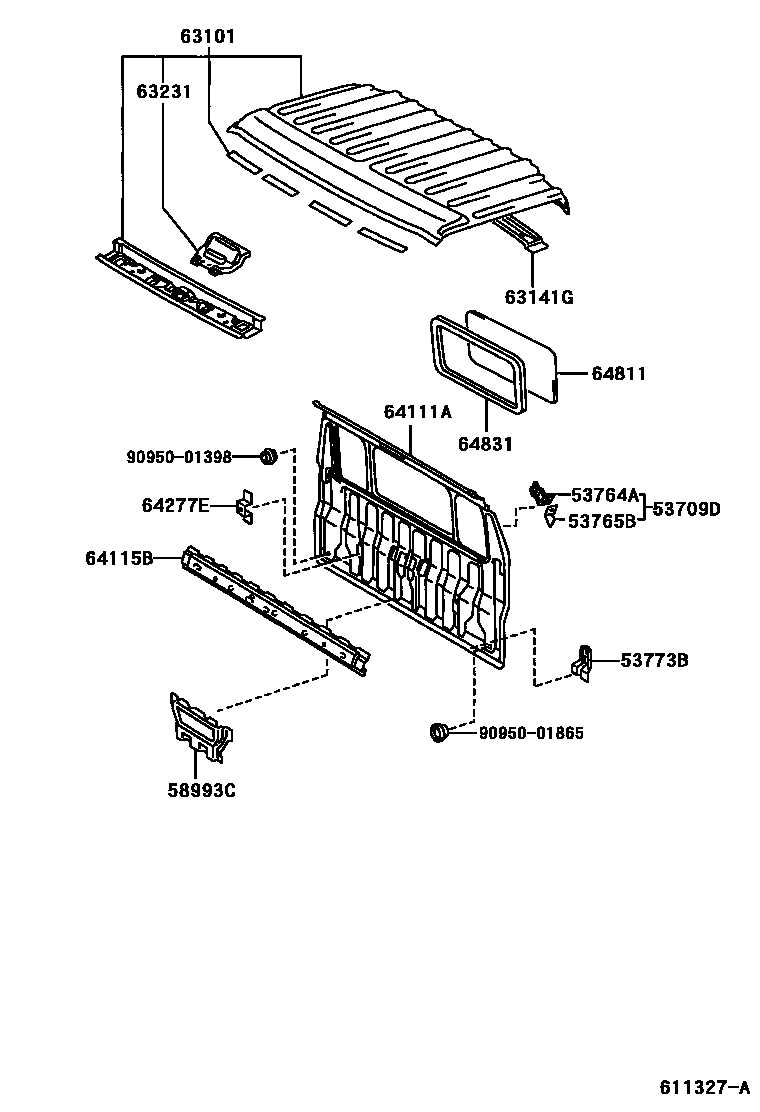

ROOF PANEL & BACK PANEL

0001 1 0002 1W(ROOF AIR DEFLECTOR) 0003 1W(ROOF RACK)

53709DBRACKET SUB-ASSY, AIR CLEANER INLET SEAL

main53709-37070iXZU402,41#,420,430200010-200206

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-37060iXZU402,41#,420,430200010-200206

53765BBRACKET, AIR CLEANER INLET, NO.2

main53765-37070iXZU402,41#,420,430200010-200206

53773BBRACKET, AIR CLEANER INLET, NO.2

main53773-37100iXZU402,41#,420,430200010-200206

58993CBRACKET, CONSOLE BOX MOUNTING, REAR

main58993-37030iXZU402,41#,420,430200010-200206

63101PANEL SUB-ASSY, ROOF

main63101-37900iXZU402,41#,420,430200010-200109

sub63101-37310

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37120iXZU402,41#,420,430200010-200206

63231BRACKET, ROOM LAMP

main63231-37010iXZU402,41#,420,430200010-200206

64111APANEL, BACK

main64111-37530iXZU402,41#,420,430200010-200206

sub64111-37531

64115BREINFORCEMENT, BACK PANEL

main64115-37130iXZU402,41#,420,430200010-200206

sub64115-37131

64277EBRACKET, BACK PANEL TRIM, LOWER

main64277-37010iXZU402,41#,420,430200010-200206

64811GLASS, BACK WINDOW

main64811-37150iXZU402,41#,420,430200010-200206

*TEM,T=3.5,GREEN

main64811-37160iXZU402,41#,420,430200010-200206

*TEM,T=3.5,BRONZE

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37060iXZU402,41#,420,430200010-200206

9095001398

main90950-01398

9095001865

main90950-01865

15 parts on this diagram · 3 diagrams in section
