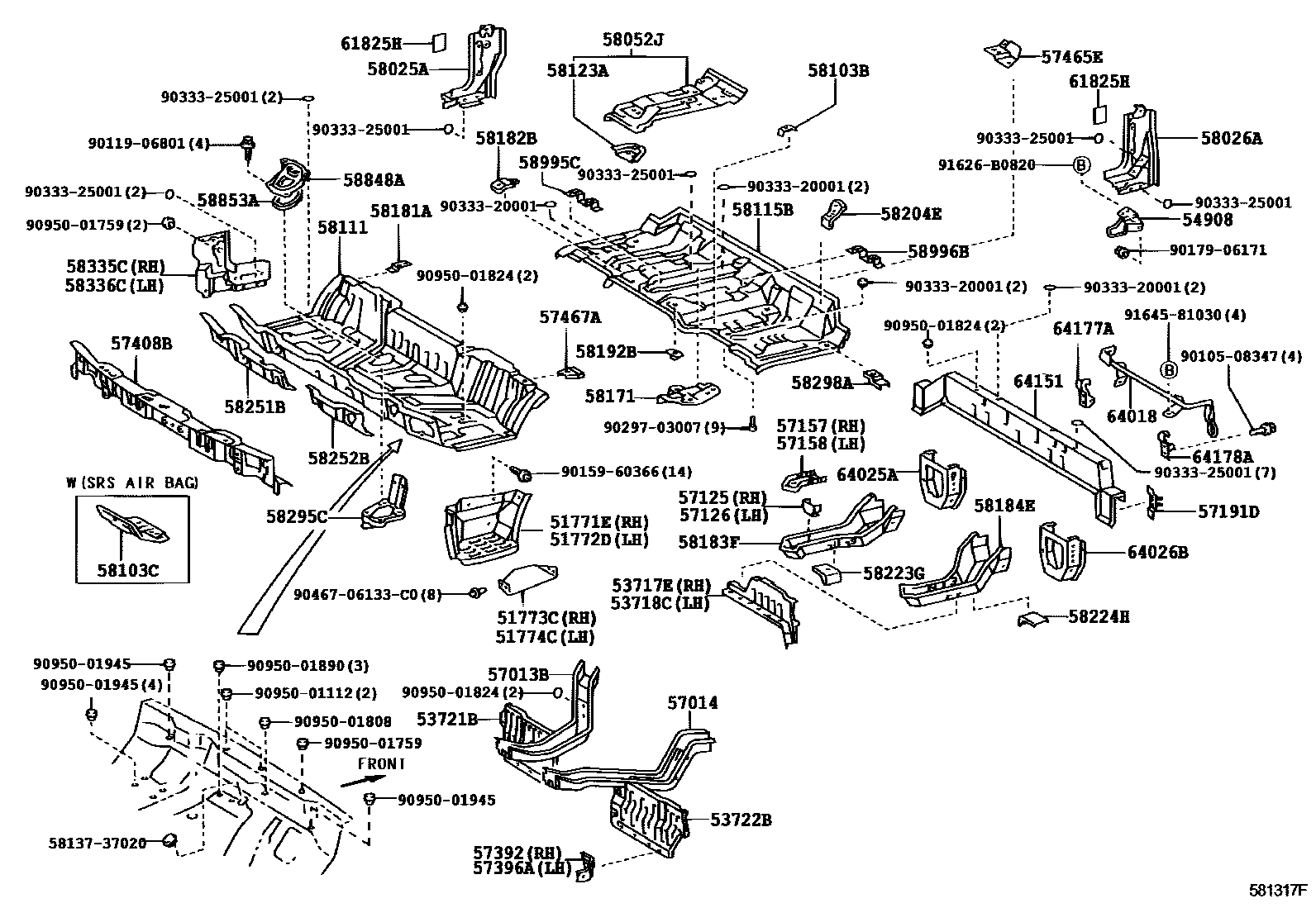

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1

51771EPLATE, STEP, RH

main51771-37110iXZU402,41#,420,430¥13,900200010-200206

sub51771-37111¥8,700

51772DPLATE, STEP, LH

main51772-37090iXZU402,41#,420,430¥13,900200010-200206

sub51772-37091¥8,700

51773CCOVER, STEP PLATE, RH

main51773-37030iXZU402,41#,420,430¥650200010-200206

51774CCOVER, STEP PLATE, LH

main51773-37030iXZU402,41#,420,430¥650200010-200206

53717EAPRON, FRONT FENDER, NO.2 RH

main53717-37180iXZU402,41#,420,430¥2,150200010-200206

53718CAPRON, FRONT FENDER, NO.2 LH

main53718-37140iXZU402,41#,420,430¥2,150200010-200206

53721BAPRON SUB-ASSY, FENDER SIDE, RH

main53721-37070iXZU402,41#,420,430¥6,100200010-200206

53722BAPRON SUB-ASSY, FENDER SIDE, LH

main53722-37050iXZU402,41#,420,430¥6,100200010-200206

54908BRACKET SUB-ASSY, TILT CAB GRIP

main54908-37020iXZU402,41#,420,430¥2,140200010-200206

57013BMEMBER SUB-ASSY, FLOOR, FRONT RH

main57013-37150iXZU402,41#,420,430¥23,300200010-200206

57014MEMBER SUB-ASSY, FLOOR, FRONT LH

main57014-37070iXZU402,41#,420,430¥14,600200010-200206

57125BRACKET, FRONT SIDE MEMBER, RH

main57125-37010iXZU402,41#,420,430¥390200010-200206

57126BRACKET, FRONT SIDE MEMBER, LH

main57126-37020iXZU402,41#,420,430¥390200010-200206

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-37030iXZU402,41#,420,430¥1,180200010-200206

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-37030iXZU402,41#,420,430¥1,180200010-200206

57191DBRACKET, FLOOR NO.1 CROSSMEMBER

main57191-37010iXZU402,41#,420,430¥590200010-200206

57392PLATE, FRONT STEP, NO.2 RH

main57392-37020iXZU402,41#,420,430¥1,010200010-200206

57396APLATE, FRONT STEP, NO.2 LH

main57396-37020iXZU402,41#,420,430¥1,010200010-200206

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-37311iXZU402,41#,420,430¥39,300200010-200206

sub57408-37312¥39,300

57465ERETAINER, BELT ANCHOR, NO.2

main57405-37060iXZU402,41#,420,430¥2,950200010-200206

57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH

main57467-37010iXZU402,41#,420,430¥760200010-200206

sub57467-37011¥480

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58043-37070iXZU402,41#,420,430¥6,500200010-200206

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58044-37080iXZU402,41#,420,430¥6,500200010-200206

58052JREINFORCEMENT SUB-ASSY, ENGINE SUB COVER

main58052-37010iXZU402,41#,420,430¥10,700200010-200206

58103BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INNER RH

main58103-37070iXZU402,41#,420,430¥1,290200010-200206

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-37040iXZU402,41#,420,430¥6,500200010-200206

58111PAN, FRONT FLOOR

main58111-37340iXZU402,41#,420,430¥44,700200010-200011

sub58111-37341¥44,800

main58111-37341iXZU402,41#,420,430¥44,800200011-200206

main58111-37360iXZU402,41#,420,430¥44,700200010-200011

W(SRS AIR BAG)

sub58111-37361¥44,800

main58111-37361iXZU402,41#,420,430¥44,800200011-200206

W(SRS AIR BAG)

sub58111-37362¥44,800

58115BPANEL, FRONT FLOOR, REAR

main58115-37030iXZU402,41#,420,430¥40,700200010-200011

W(FRONT SEAT=02S)

sub58115-37031¥40,700

main58115-37031iXZU402,41#,420,430¥40,700200011-200206

W(FRONT SEAT=02S)

sub58115-37032¥40,700

main58115-37040iXZU402,41#,420,430¥40,700200010-200011

W(FRONT SEAT=03S)

sub58115-37041¥40,700

main58115-37041iXZU402,41#,420,430¥40,700200011-200206

W(FRONT SEAT=03S)

sub58115-37042¥40,700

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-37010iXZU402,41#,420,430¥1,000200010-200206

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-37030iXZU402,41#,420,430¥5,100200010-200206

58181ARETAINER, SEAT RAIL, FRONT

main58181-37070iXZU402,41#,420,430¥1,520200010-200206

58182BRETAINER, SEAT RAIL, FRONT LH

main58182-37010iXZU402,41#,420,430¥430200010-200206

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-37080iXZU402,41#,420,430¥9,300200010-200206

sub58183-37081¥9,300

58184EREINFORCEMENT, REAR MOUNTING, LH

main58184-37100iXZU402,41#,420,430¥10,000200010-200206

sub58184-37101¥10,000

58192BPLATE, FRONT FLOOR, REAR

main58192-37020iXZU402,41#,420,430¥220200010-200206

58204EBRACKET SUB-ASSY, FRONT SEAT

main58204-37020iXZU402,41#,420,430¥2,530200010-200206

58223GREINFORCEMENT, SEAT SET, NO.1

main58223-37030iXZU402,41#,420,430¥2,620200010-200206

58224HREINFORCEMENT, SEAT SET, NO.2

main58224-37010iXZU402,41#,420,430¥2,560200010-200206

58251BBRACE, FLOOR PANEL, FRONT

main58251-37040iXZU402,41#,420,430¥7,100200010-200206

sub58251-37041¥7,700

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-37050iXZU402,41#,420,430¥6,700200010-200206

58295CBRACKET, FLOOR SHIFT LEVER, NO.1

main58295-37060iXZU402,41#,420,430¥1,820200010-200206

58298AREINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH

main58298-37010iXZU402,41#,420,430¥990200010-200206

58335CPLATE, FLOOR SIDE, FRONT RH

main58335-37040iXZU402,41#,420,430¥4,260200010-200206

sub58335-37041¥3,550

58336CPLATE, FLOOR SIDE, FRONT LH

main58336-37030iXZU402,41#,420,430¥4,180200010-200101

sub58336-37031¥3,480

main58336-37031iXZU402,41#,420,430¥3,480200101-200206

sub58336-37032¥2,430

58848ACOVER, SHIFT LEVER HOLE

main58840-37010iXZU402,41#,420,430¥1,150200010-200206

58853APACKING, SHIFT LEVER HOLE

main58853-37020iXZU402,41#,420,430¥230200010-200206

58995CBRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-37030iXZU402,41#,420,430¥500200010-200206

58996BBRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-37040iXZU402,41#,420,430¥670200010-200206

61825HPAD, NOISE SHUTTER, NO.2

main61825-34010iXZU402,41#,420,430¥1,170200010-200206

64018BAR SUB-ASSY, BODY

main64018-37100iXZU402,41#,420,430¥9,000200010-200206

64025ABRACKET SUB-ASSY, REAR MOUNTING, RH

main64171-37010iXZU402,41#,420,430¥7,200200010-200206

sub64171-37011¥7,100

64026BBRACKET SUB-ASSY, REAR MOUNTING, LH

main64026-37100iXZU402,41#,420,430¥2,780200010-200206

W(CONSOLE BOX = FOR 02S)

main64172-37020iXZU402,41#,420,430¥7,200200010-200111

sub64172-37021¥7,200

main64172-37021iXZU402,41#,420,430¥7,200200111-200206

sub64172-37022¥7,100

64151FRAME, BACK

main64151-37270iXZU402,41#,420,430¥21,700200010-200206

64177ASTOPPER, REAR MOUNTING BRACKET, RH

main64177-37030iXZU402,41#,420,430¥2,620200010-200206

sub64177-37031¥1,650

64178ASTOPPER, REAR MOUNTING BRACKET, LH

main64178-37030iXZU402,41#,420,430¥2,620200010-200206

sub64178-37031¥1,650

5813737020BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4

main58137-37020¥220

9010508347

main90105-08347¥80

9011906801

main90119-06801¥60

9015960366

main90159-60366¥120

9017906171

main90179-06171¥100

9029703007

main90297-03007¥60

9033320001

main90333-20001¥70

9033325001

main90333-25001¥140

9046706133C0

main90467-06133C0

9095001112

main90950-01112¥190

9095001759

main90950-01759¥120

9095001808

main90950-01808¥110

9095001824

main90950-01824¥110

9095001890

main90950-01890¥170

9095001945

main90950-01945¥100

91626B0820

main91626-B0820¥130

9164581030

main91645-81030¥180

72 parts on this diagram · 2 diagrams in section
