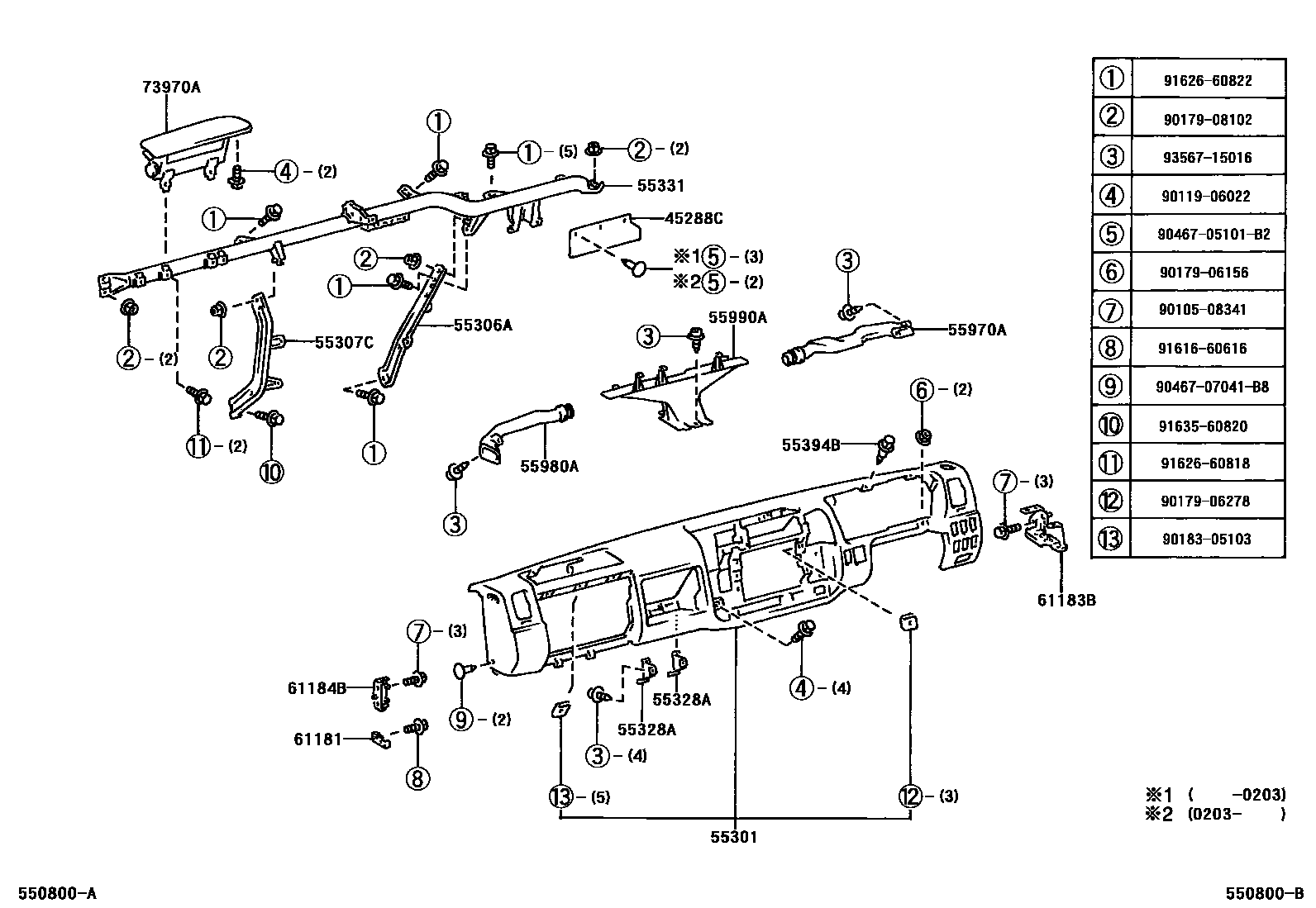

INSTRUMENT PANEL & GLOVE COMPARTMENT
45288CPLATE, STEERING COLUMN COVER
55301PANEL SUB-ASSY, INSTRUMENT
W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG),MD.CHARCOAL,TRIM1#
sub55301-37041
W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG),MD.CHARCOAL,TRIM1#
W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE),MD.CHARCOAL,TRIM1#
sub55301-37051
W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE),MD.CHARCOAL,TRIM1#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
sub55307-37071
55328ASTAY, INSTRUMENT PANEL, NO.3
55331REINFORCEMENT, INSTRUMENT PANEL
W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG)
sub55330-37055
W(SRS AIR BAG,DRIVER SIDE ONLY) OR W/O(SRS AIR BAG)
sub55330-37056
W(SRS AIR BAG,DRIVER SIDE & SRS AIR BAG,PASSENGER SIDE)
sub55330-37064
55394BBOLT, INSTRUMENT PANEL
55970ADUCT ASSY, SIDE DEFROSTER, RH
55980ADUCT ASSY, SIDE DEFROSTER, LH
55990ANOZZLE ASSY, DEFROSTER, LOWER
61181BRACKET, INSTRUMENT PANEL SIDE
61183BBRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
61184BBRACKET, INSTRUMENT PANEL SIDE, NO.2 LH
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
9010508341
main90105-08341
9011906022
main90119-06022
9017906156
main90179-06156
9017906278
main90179-06278
9017908102
main90179-08102
9018305103
main90183-05103
9046705101B2
main90467-05101B2
9046707041B8
main90467-07041B8
9161660616
main91616-60616
9162660818
main91626-60818
9162660822
main91626-60822
9163560820
main91635-60820
9356715016
main93567-15016
27 parts on this diagram · 2 diagrams in section
