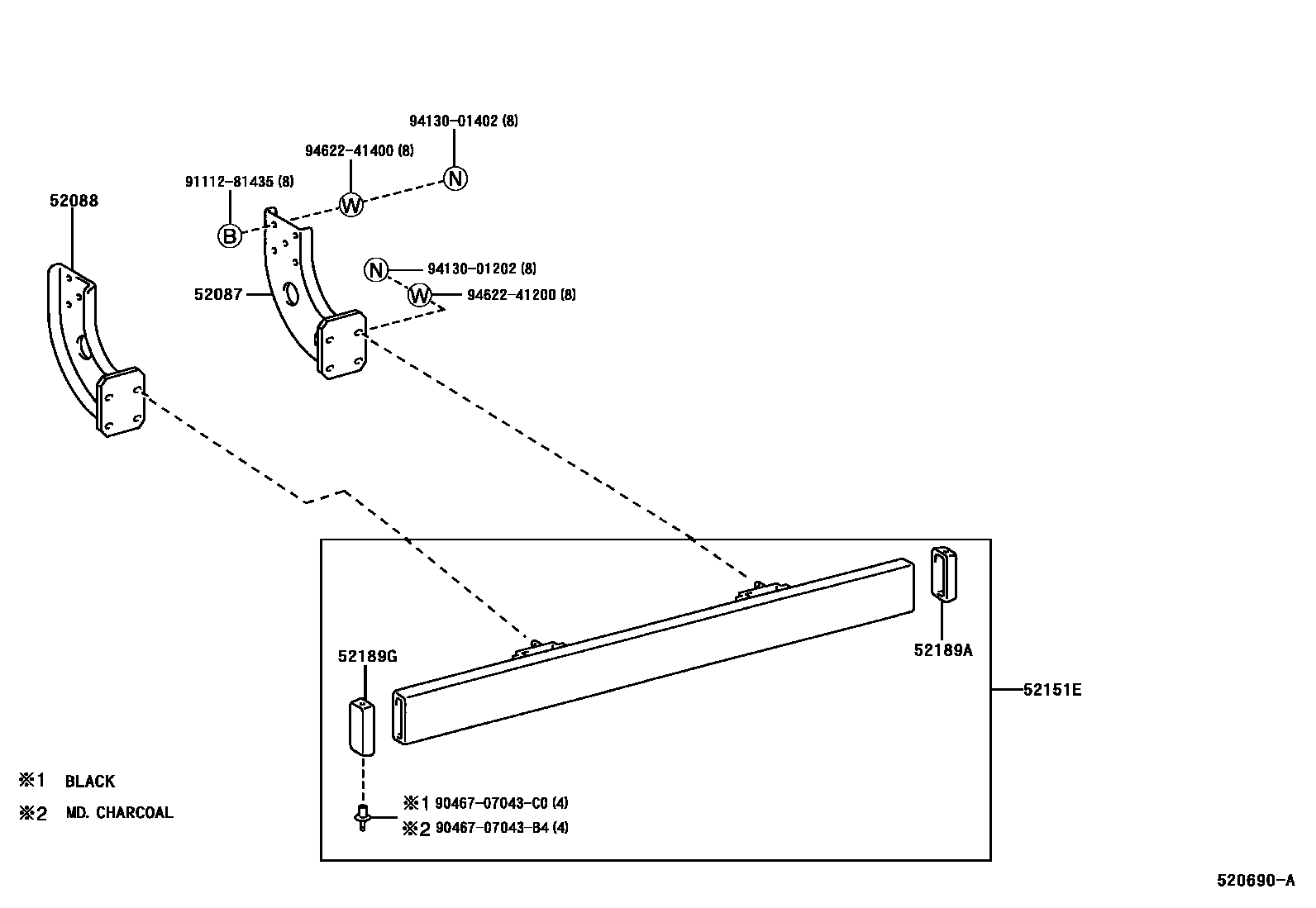

REAR BUMPER & BUMPER STAY

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52151-37090iXZU410,411,420,430200010-200206

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52152-37060iXZU410,411,420,430200010-200206

52151EBAR, REAR BUMPER

main52105-37120iXZU410,411,420,430200010-200206

sub52105-37140

52189APROTECTOR, REAR BUMPER ARM EDGE, RH

main52189-37030iXZU410,411,420,430200010-200206

52189GPROTECTOR, REAR BUMPER ARM EDGE, LH

main52189-37030iXZU410,411,420,430200010-200206

9046707043B4

main90467-07043B4

9046707043C0

main90467-07043C0

9111281435

main91112-81435

9413001202

main94130-01202

9413001402

main94130-01402

9462241200

main94622-41200

9462241400

main94622-41400

12 parts on this diagram · 1 diagram in section
