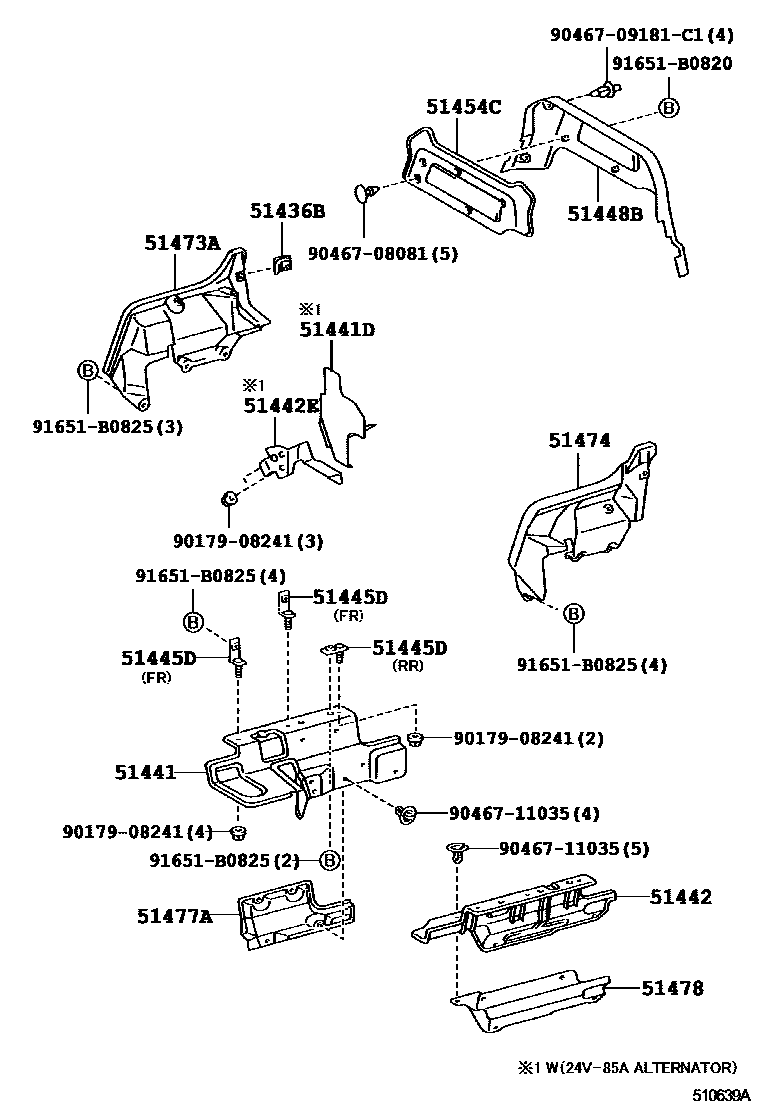

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51436BBRACKET, ENGINE SIDE COVER, NO.1 RH

main51436-37080iXZU402,41#,420,430200010-200206

51441COVER, ENGINE UNDER, NO.1

main51440-37060iXZU402,41#,420,430200010-200206

sub51440-37061

51441DCOVER, ENGINE UNDER

main51410-37010iXZU402,41#,420,430200010-200105

W(24V-85A ALTERNATOR)

51442COVER, ENGINE UNDER, NO.2

main51440-37070iXZU402,41#,420,430200010-200206

51442ECOVER, ENGINE UNDER, NO.2

main51420-37010iXZU402,41#,420,430200010-200105

W(24V-85A ALTERNATOR)

51445DBRACKET, ENGINE UNDER COVER, RH

main51445-37130iXZU402,41#,420,430200010-200206

REAR

main51445-37140iXZU402,41#,420,430200010-200206

FRONT

51448BSHUTTER, ENGINE REAR SIDE

main51448-37010iXZU402,41#,420,430200010-200206

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-37080iXZU402,41#,420,430200010-200206

sub51454-37161

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-37160iXZU402,41#,420,430200010-200206

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-37140iXZU402,41#,420,430200010-200206

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-37010iXZU402,41#,420,430200010-200206

51478PLATE, ENGINE SIDE UNDER COVER, UPPER LH

main51478-37090iXZU402,41#,420,430200010-200206

9017908241

main90179-08241

9046708081

main90467-08081

9046709181C1

main90467-09181C1

9046711035

main90467-11035

91651B0820

main91651-B0820

91651B0825

main91651-B0825

18 parts on this diagram · 2 diagrams in section
