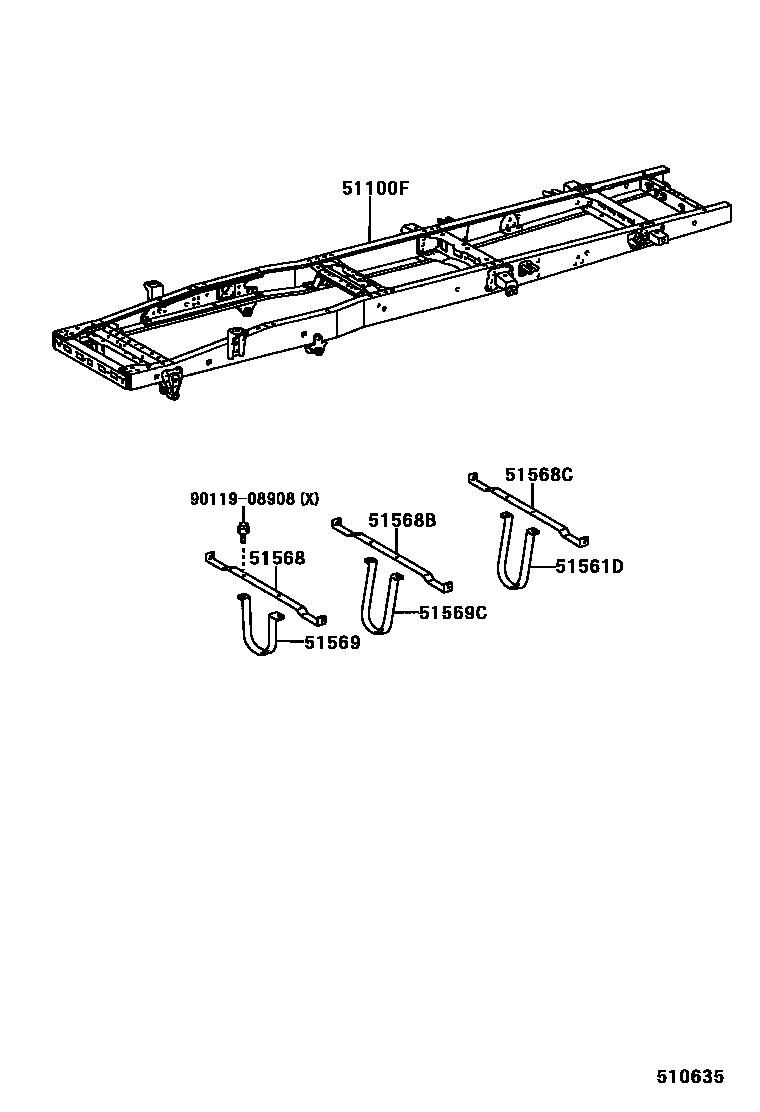

FRAME

0001 1 0002 1 0003 1 0004 1

51100FFRAME SUB-ASSY

main51001-3V010iXZU410,411200010-200206

AUSTRALIA SPEC

main51001-3V020iXZU412200010-200206

AUSTRALIA SPEC

main51001-3V030iXZU402200010-200206

AUSTRALIA SPEC

main51003-37030iXZU410,411200010-200206

sub51001-3V890

main51003-37060iXZU420200010-200206

main51003-37110iXZU402200010-200206

main51003-37170iXZU412200010-200206

sub51001-3V840

main51003-37340iXZU430200010-200206

main51003-37880iXZU430200010-200206

AUSTRALIA SPEC

main51003-37890iXZU420200010-200206

AUSTRALIA SPEC

51561DGUARD, PROPELLER SHAFT

main51569-37300iXZU430200010-200206

51568BRACKET, PROPELLER SHAFT GUARD

main51568-37210iXZU402200010-200206

main51568-37230iXZU41#,420,430200010-200206

sub51568-37231

51568BBRACKET, PROPELLER SHAFT GUARD

main51568-37230iXZU430200010-200206

sub51568-37231

main51568-37360iXZU41#,420200010-200206

51568CBRACKET, PROPELLER SHAFT GUARD

main51568-37360iXZU430200010-200206

51569GUARD, PROPELLER SHAFT

main51569-37180iXZU41#,420,430200010-200206

main51569-37300iXZU402200010-200206

51569CGUARD, PROPELLER SHAFT

main51569-37190iXZU430200010-200206

main51569-37200iXZU41#200010-200206

main51569-37300iXZU420200010-200206

9011908908

main90119-08908

8 parts on this diagram · 4 diagrams in section
