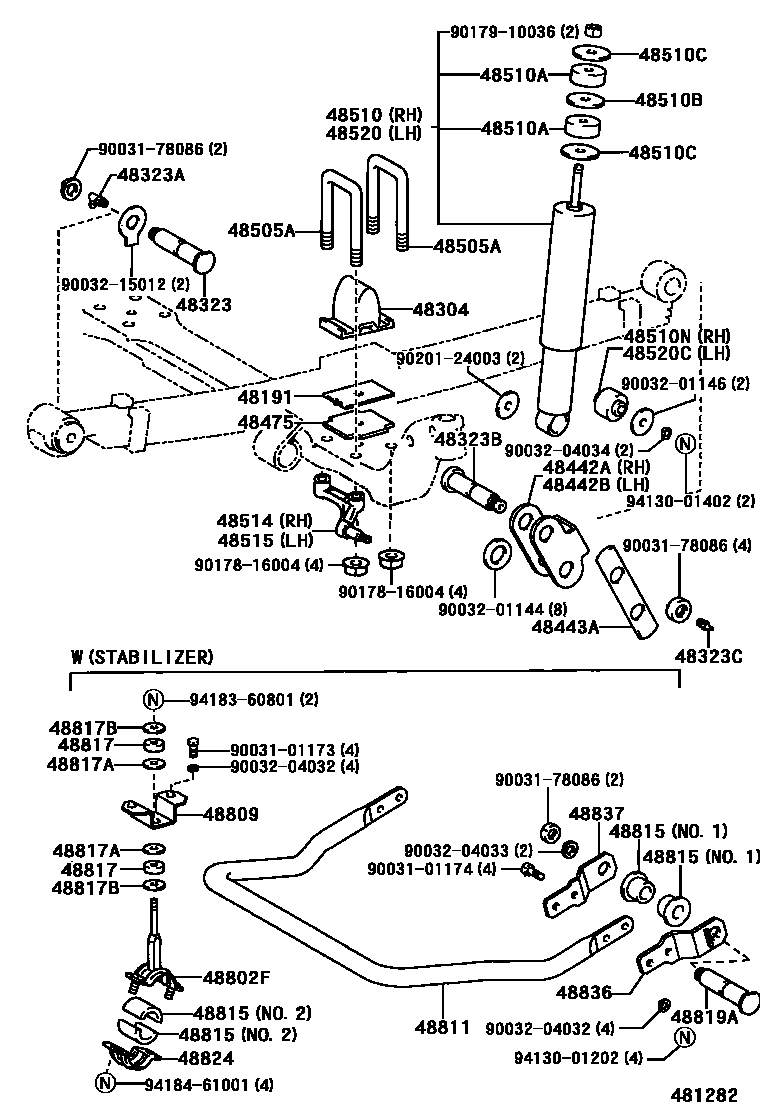

FRONT SPRING & SHOCK ABSORBER
48191WEDGE, CASTER(FOR FRONT LEAF SPRING)
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
HEAVY DUTY SUSPENSION
48323PIN, FRONT SPRING BRACKET, FRONT
48323ANIPPLE, GREASE(FOR FRONT SPRING BRACKET, FRONT PIN)
48323BPIN, FRONT SPRING BRACKET, REAR
48323CNIPPLE, GREASE(FOR FRONT SPRING BRACKET, REAR PIN)
48442ASHACKLE, FRONT SPRING, RH
48442BSHACKLE, FRONT SPRING, LH
48443APLATE, FORNT SPRING SHACKLE, OUTER
48475PLATE, DISTANCE(FOR FRONT)
48505ABOLT, U(FOR FRONT SPRING)
L=150
L=120
L=160
L=170
L=130
L=140
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48511-37121
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48511-37121
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48802FLINK SUB-ASSY, FRONT STABILIZER
sub48802-37041
48809BRACKET SUB-ASSY, STABILIZER
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
NO.2
NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48824BRACKET, STABILIZER, FRONT
sub48824-37061
48836BRACKET, FRONT STABILIZER END, RH
48837BRACKET, FRONT STABILIZER END, LH
9003101173
main90031-01173
9003101174
main90031-01174
9003178086
main90031-78086
9003201144
main90032-01144
9003201146
main90032-01146
9003204032
main90032-04032
9003204033
main90032-04033
9003204034
main90032-04034
9003215012
main90032-15012
9017816004
main90178-16004
9017910036
main90179-10036
9020124003
main90201-24003
9413001202
main94130-01202
9413001402
main94130-01402
9418360801
main94183-60801
9418461001
main94184-61001
47 parts on this diagram · 11 diagrams in section
