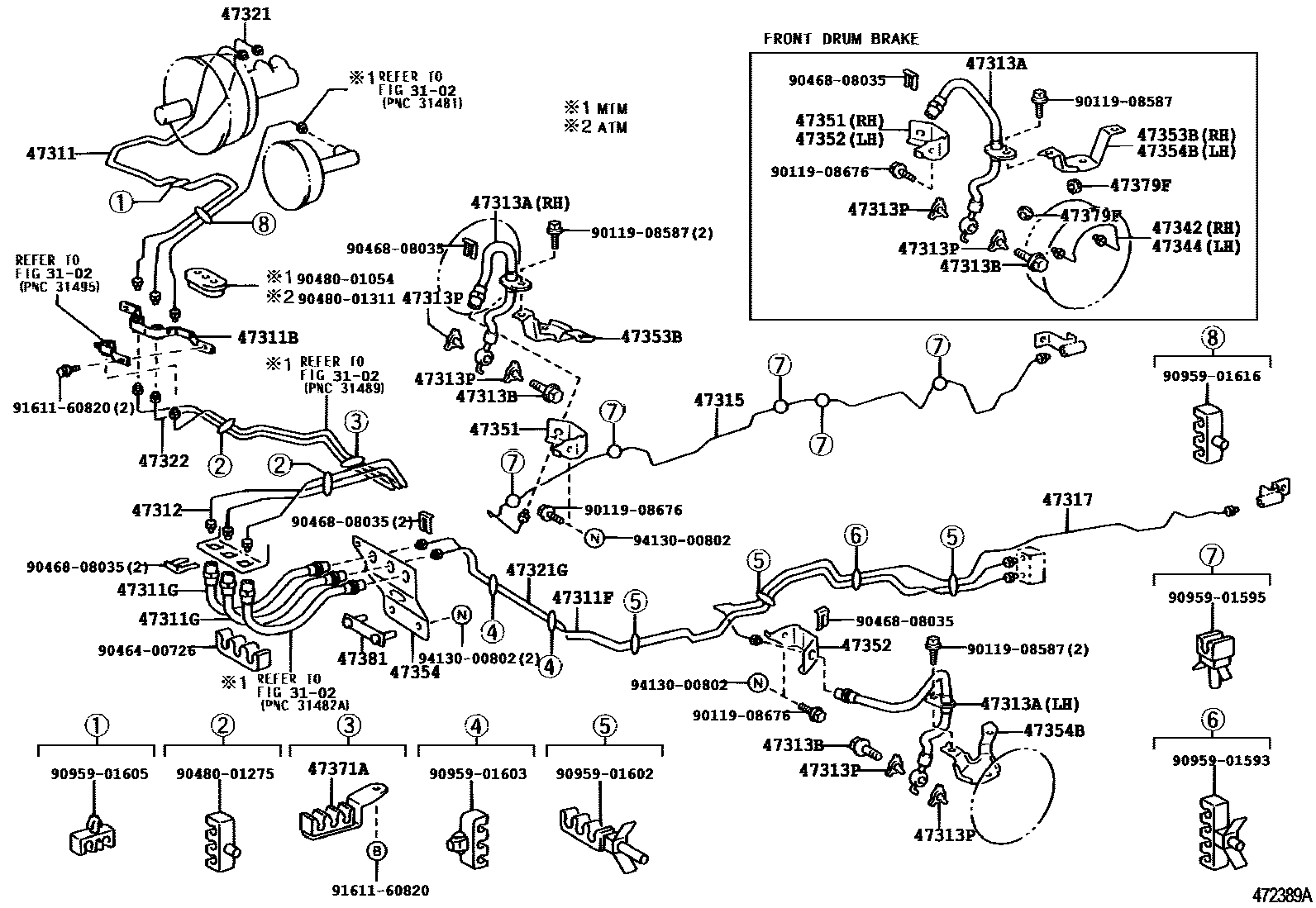

BRAKE TUBE & CLAMP

0001 1 0002 1W/O(BRAKE LOCK SYSTEM) & W(LS0003 1W(BRAKE LOCK SYSTEM & LSPV) 0004 1W/O(BRAKE LOCK SYSTEM & LSPV)0005 1W(BRAKE LOCK SYSTEM) & W/O(LS0006 1 0007 1W(LSPV)

3102

47311TUBE, FRONT BRAKE, NO.1

main47311-37160iXZU402,41#,420,430200010-200206

sub47311-37161

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main47391-37020iXZU402,41#,420,430200010-200206

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-37270iXZU402,41#,420,430200010-200104

sub47311-37271

main47311-37271iXZU402,41#,420,430200104-200206

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02A79iXZU402,41#,420,430200010-200206

47312TUBE, FRONT BRAKE, NO.2

main47312-37270iXZU402,41#,420,430200010-200206

47313TUBE, FRONT BRAKE, NO.3

main47313-37260iXZU402,41#,420,430200010-200012

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02A73iXZU402,412200010-200206

RH

main90947-02A74iXZU402,412200010-200206

LH

main90947-02A77iXZU410,411,420,430200010-200206

RH

main90947-02B28iXZU410,411,420,430200010-200206

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iXZU402,41#,420,430200010-200206

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iXZU402,41#,420,430200010-200206

47315TUBE, FRONT BRAKE, NO.5

main47315-37170iXZU402,412200010-200206

main47315-37240iXZU410,411,420,430200010-200206

47317TUBE, FRONT BRAKE, NO.7

main47317-37200iXZU402200010-200206

main47317-37210iXZU412200010-200206

main47317-37300iXZU410,411,420,430200010-200206

47321TUBE, REAR BRAKE, NO.1

main47321-37160iXZU402,41#,420,430200010-200206

47321GTUBE, REAR BRAKE, FRAME NO.1

main47321-37270iXZU402,41#,420,430200010-200206

47322TUBE, REAR BRAKE, NO.2

main47322-37370iXZU402,41#,420,430200010-200206

sub47322-37371

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-37060iXZU410,411,420,430200010-200102

sub47342-37061

main47342-37061iXZU410,411,420,430200102-200206

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-37060iXZU410,411,420,430200010-200102

sub47342-37061

main47342-37061iXZU410,411,420,430200102-200206

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-37210iXZU402,412200010-200206

main47351-37300iXZU410,411,420,430200010-200206

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-37130iXZU402,412200010-200206

main47352-37180iXZU410,411,420,430200010-200206

47353BRACKET, FLEXIBLE HOSE(FOR REAR)

main47353-37250iXZU402,41#,420,430200010-200206

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47353-37200iXZU402,412200010-200206

main47353-37210iXZU410,411,420,430200010-200206

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-37130iXZU402,41#,420,430200010-200206

sub47354-37131

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47354-37200iXZU402,412200010-200206

main47354-37210iXZU410,411,420,430200010-200206

47371ACLAMP, BRAKE TUBE, NO.1

main47371-37030iXZU402,41#,420,430200010-200206

47379FDAMPER, TUBE(FOR FRONT)

main47379-37010iXZU410,411,420,430200010-200206

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-37230iXZU402,41#,420,430200010-200206

9011908587

main90119-08587

9011908676

main90119-08676

9046400726

main90464-00726

9046808035

main90468-08035

9048001054

main90480-01054

9048001275

main90480-01275

9048001311

main90480-01311

9095901593

main90959-01593

9095901595

main90959-01595

9095901602

main90959-01602

9095901603

main90959-01603

9095901605

main90959-01605

9095901616

main90959-01616

9161160820

main91611-60820

9413000802

main94130-00802

41 parts on this diagram · 7 diagrams in section
