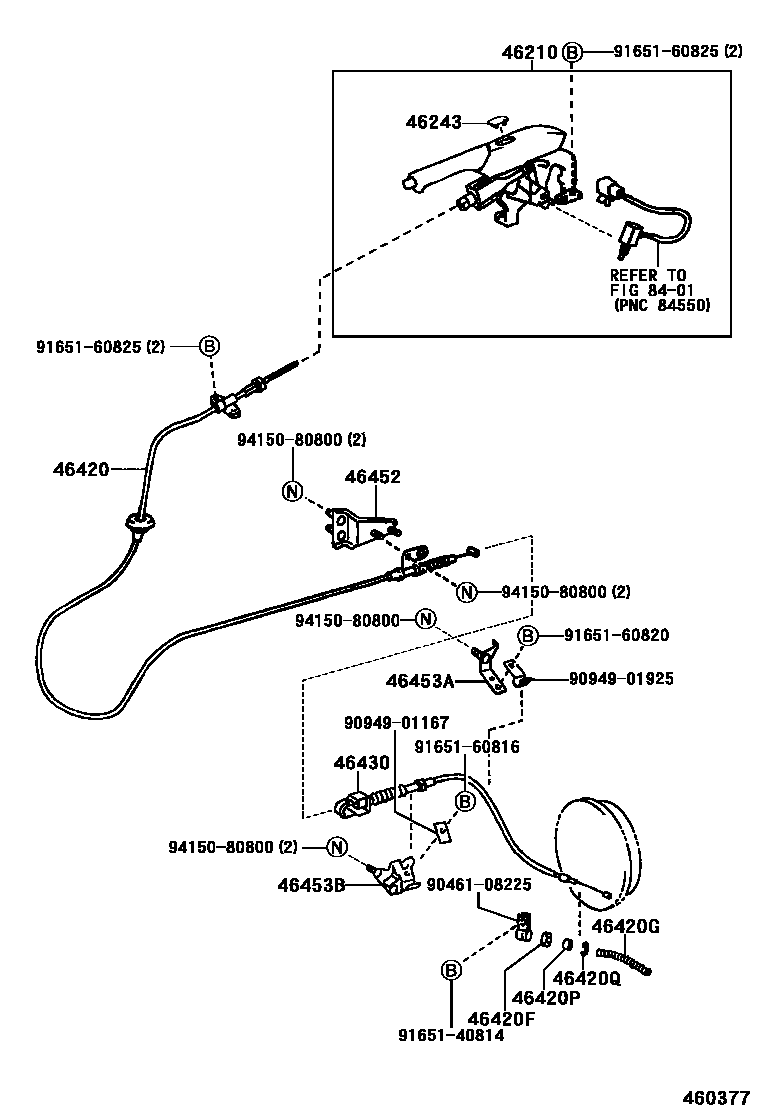

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1 0004 1

46210LEVER ASSY, PARKING BRAKE

main46210-37012-B0iXZU402,41#,420,430200010-200206

DK.CHARCOAL,TRIM1#

main46210-37041-B0iXZU410,420200010-200206

W(BRAKE LOCK SYSTEM),DK.CHARCOAL,TRIM1#

sub46210-37042

46243COVER, PARKING BRAKE LEVER

main46243-37020-B0iXZU402,41#,420,430200010-200206

DK.CHARCOAL,TRIM1#

sub46243-37020

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37240iXZU402,41#,420,430200010-200206

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iXZU402,412200010-200206

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iXZU402,412200010-200206

46420PSPACER, PARKING BRAKE

main90560-08002iXZU402,412200010-200206

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iXZU402,412200010-200206

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37410iXZU402,412200010-200206

main46430-37430iXZU410,411,420,430200010-200206

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-37050iXZU402,41#,420,430200010-200206

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37100iXZU402,41#,420,430200010-200206

46453BBRACKET, CABLE SUPPORT, NO.3

main46453-37110iXZU402,41#,420,430200010-200206

8401

9046108225

main90461-08225

9094901167

main90949-01167

9094901925

main90949-01925

9165140814

main91651-40814

9165160816

main91651-60816

9165160820

main91651-60820

9165160825

main91651-60825

9415080800

main94150-80800

20 parts on this diagram · 4 diagrams in section
