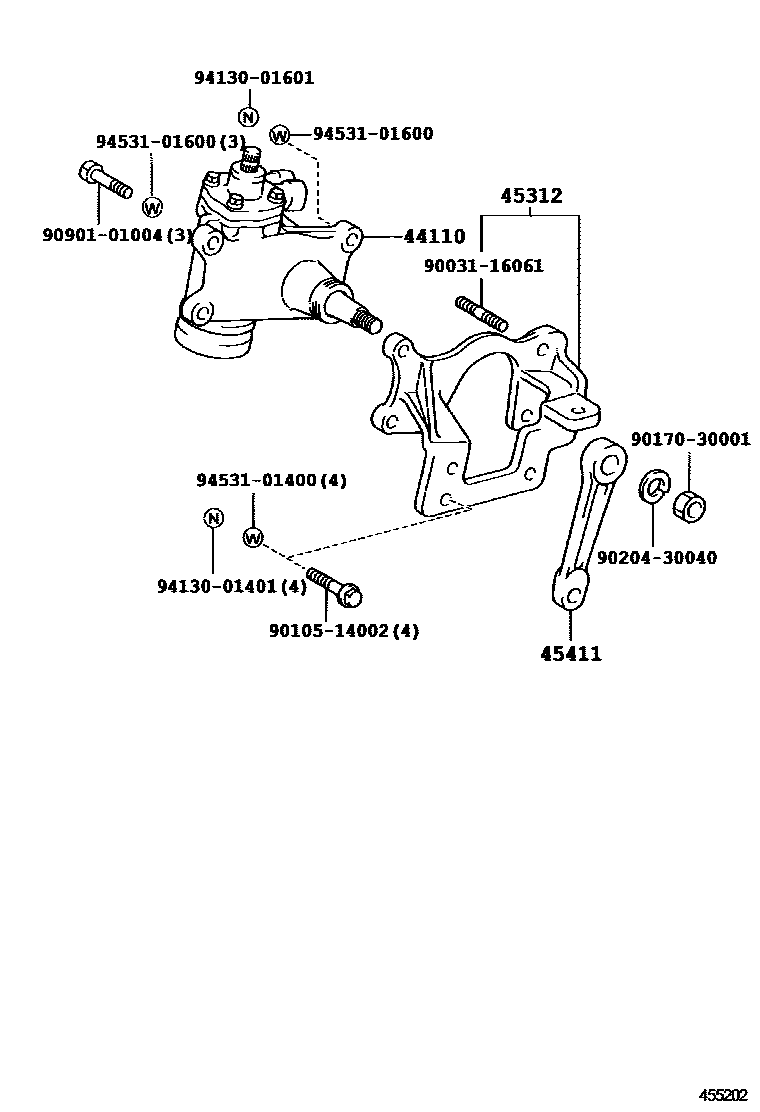

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

44110GEAR ASSY, POWER STEERING

main44110-37160iXZU410,411,420,430200010-200206

main44110-37180iXZU402,412200010-200206

45312BRACKET, STEERING GEAR HOUSING

main45302-37010iXZU402,41#,420,430200010-200206

sub45302-37011

45411ARM, PITMAN

main45411-37160iXZU402,412200010-200206

main45411-37170iXZU410,411,420,430200010-200206

9003116061

main90031-16061

9010514002

main90105-14002

9017030001

main90170-30001

9020430040

main90204-30040

9090101004

main90901-01004

9413001401

main94130-01401

9413001601

main94130-01601

9453101400

main94531-01400

9453101600

main94531-01600

12 parts on this diagram · 4 diagrams in section
