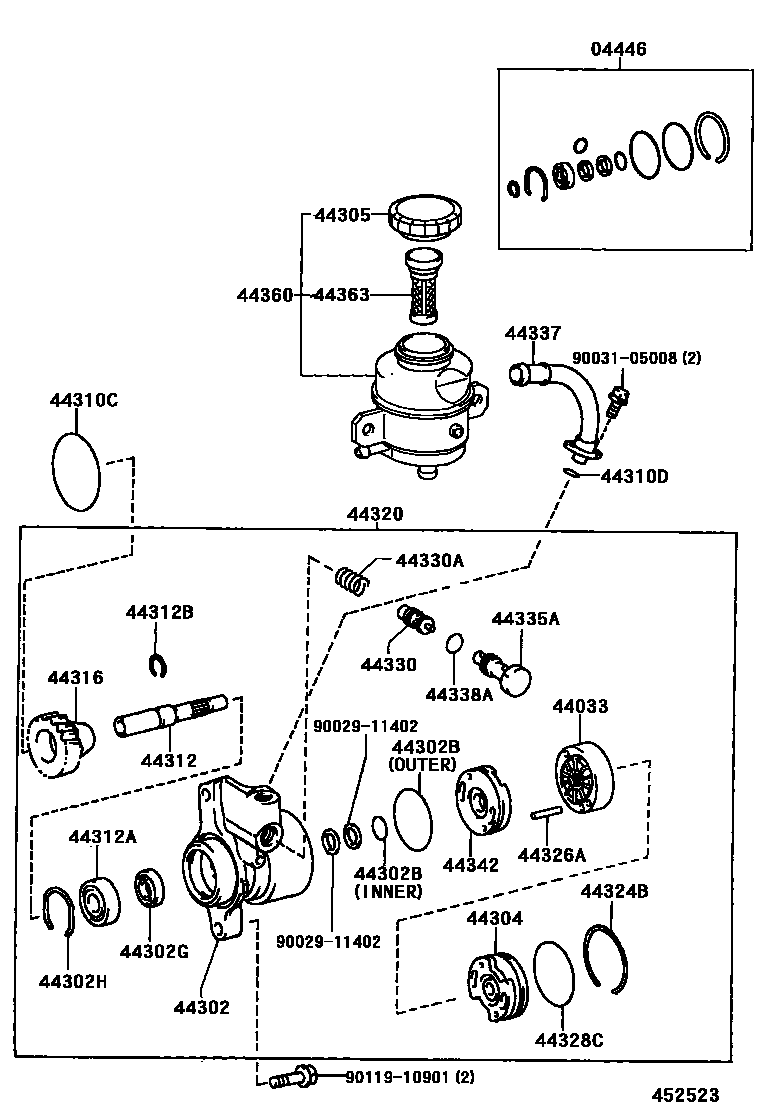

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44033ROTOR SUB-ASSY, W/CAM & VANE
sub44033-EV010
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
sub44302-EV040
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
INNER
OUTER
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44304HOUSING SUB-ASSY, VANE PUMP, REAR
sub44304-EV030
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-12040
44310CRING, O(FOR VANE PUMP)
44310DRING, O(FOR VANE PUMP UNION)
44312SHAFT, VANE PUMP
44312ABEARING(FOR VANE PUMP SHAFT)
subSZ010-04079
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44316GEAR, VANE PUMP
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
L=25.8
44328CRING, O(FOR PUMP HOUSING END)
44330VALVE ASSY, FLOW CONTROL
MARK C
MARK C
MARK B
MARK B
MARK A
MARK A
MARK D
MARK D
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44335AORIFICE, FLOW CONTROL VALVE
44337UNION, POWER STEERING SUCTION PORT
44338ARING, O(FOR PRESSURE PORT UNION)
OD=19.6,ID=15.8
44342PLATE, VANE PUMP SIDE, REAR
sub44342-37061
44360RESERVOIR ASSY, VANE PUMP OIL
44363STRAINER, OIL(FOR VANE PUMP)
9002911402
main90029-11402
9003105008
main90031-05008
9011910901
main90119-10901
