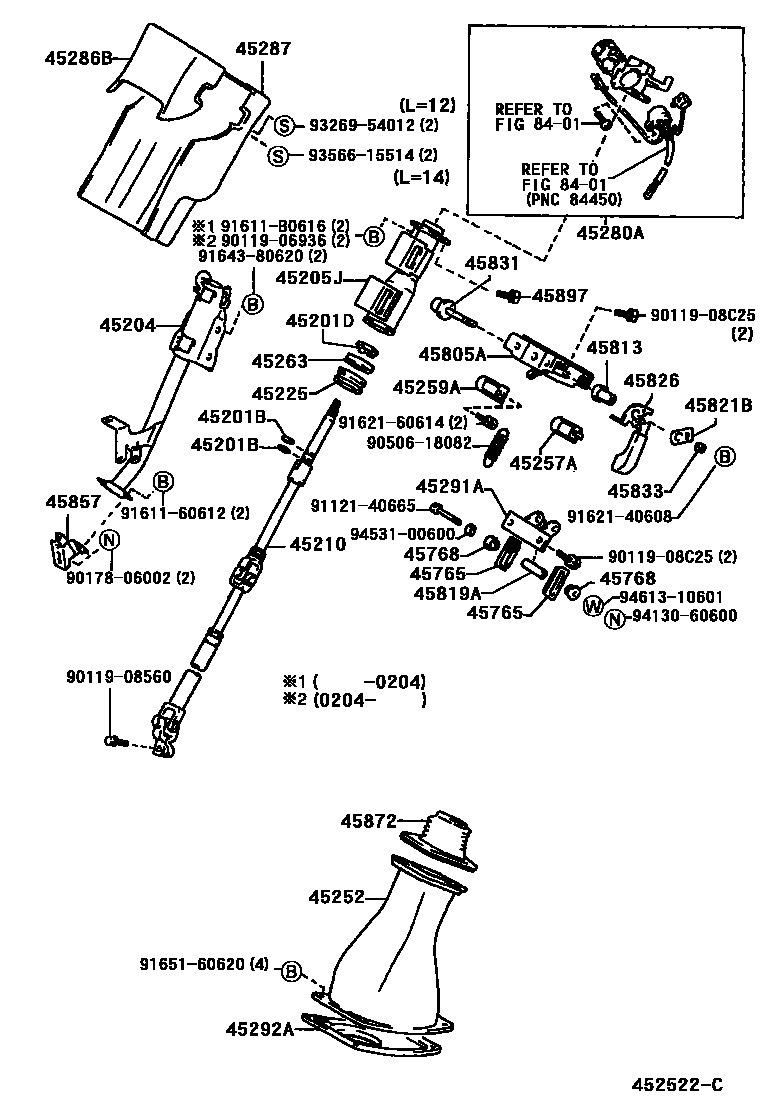

STEERING COLUMN & SHAFT
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45201DRING(FOR STEERING MAIN SHAFT)
45204TUBE ASSY, STEERING COLUMN, LOWER
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45210SHAFT ASSY, STEERING MAIN
45225BLOCK, BEARING
45252TUBE, STEERING COLUMN, LOWER
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45259ASHEET, COLUMN HOLE COVER SILENCER
45263RING, STEERING COLUMN, NO.1
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
45287COVER, STEERING COLUMN, LWR
45291ASUPPORT, STEERING COLUMN TUBE
45292ACOVER, MAIN SHAFT LOWER DUST
45765GUIDE, TELESCOPIC STEERING
45768BUSH, TELESCOPIC STEERING
45805ASUPPORT SUB-ASSY, TILT STEERING
45813COLLAR, TILT STEERING SUPPORT, NO.1
OD=30
45819ACOLLAR(FOR TILT LEVER RETAINER)
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45857BRACKET, TILT STEERING COLUMN TUBE, NO.1
45872COVER, STEERING COLUMN TUBE
45897BOLT, STEERING LOCK SET
8401
9011906936
main90119-06936
9011908560
main90119-08560
9011908C25
main90119-08C25
9017806002
main90178-06002
9050618082
main90506-18082
9112140665
main91121-40665
9161160612
main91611-60612
91611B0616
main91611-B0616
9162140608
main91621-40608
9162160614
main91621-60614
9164380620
main91643-80620
9165160620
main91651-60620
9326954012
main93269-54012
9356615514
main93566-15514
9413060600
main94130-60600
9453100600
main94531-00600
9461310601
main94613-10601
45 parts on this diagram · 1 diagram in section
