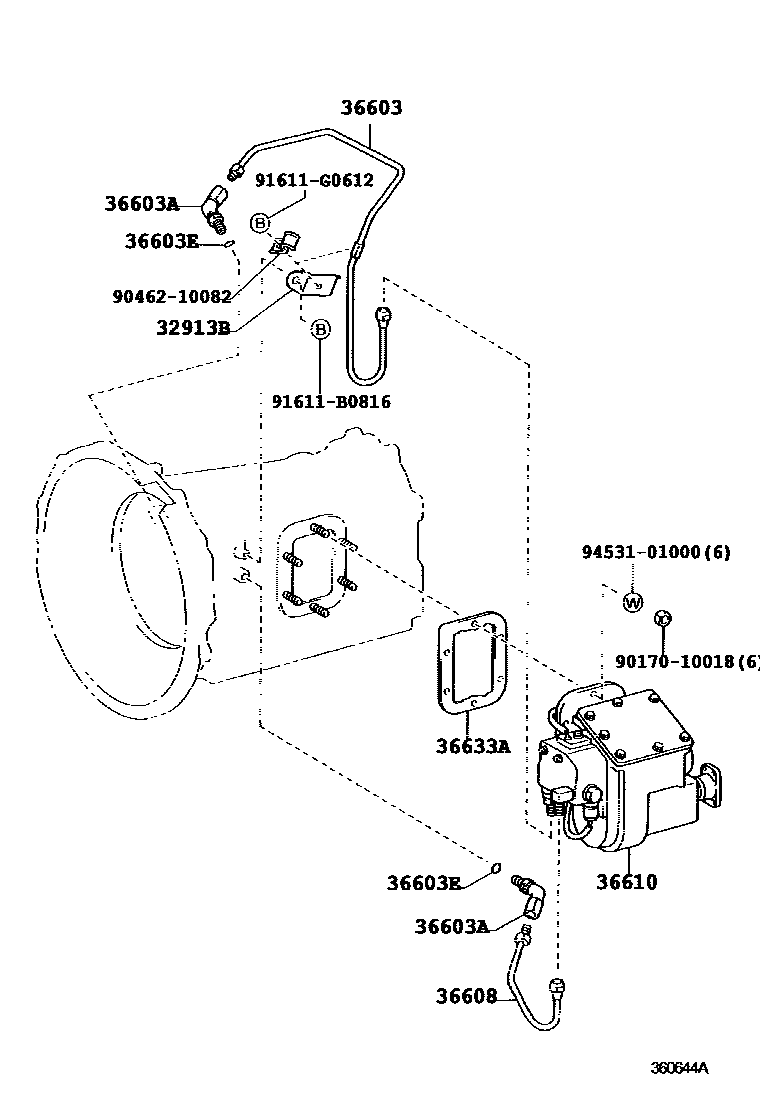

POWER TAKE-OFF CASE & GEAR

0001 1 0002 1 0003 1 0004 1

32913BBRACKET, TRANSMISSION OIL COOLER, NO.2

main32913-37030iXZU411..ATM200010-200206

36603TUBE SUB-ASSY, POWER TAKE-OFF LUBRICATION

main36603-37010iXZU411..ATM200010-200206

sub36603-37011

36603AELBOW (FOR POWER TAKE-OFF LUBRICATION TUBE)

main90407-14003iXZU411..ATM200010-200206

36603ERING, O (FOR POWER TAKE-OFF LUBRICATION TUBE)

main90301-10189iXZU411..ATM200010-200206

36608TUBE SUB-ASSY, POWER TAKE OFF LINE PRESSURE

main36608-37020iXZU411..ATM200010-200206

36610POWER TAKE-OFF ASSY

main36610-37100iXZU402200010-200206

main36610-37110iXZU41#,420,430..MTM200010-200206

main36610-37120iXZU411..ATM200010-200206

36633AGASKET, POWER TAKE-OFF COVER

main36633-37040iXZU411..ATM200010-200206

9017010018

main90170-10018

9046210082

main90462-10082

91611B0816

main91611-B0816

91611G0612

main91611-G0612

9453101000

main94531-01000

12 parts on this diagram · 4 diagrams in section
