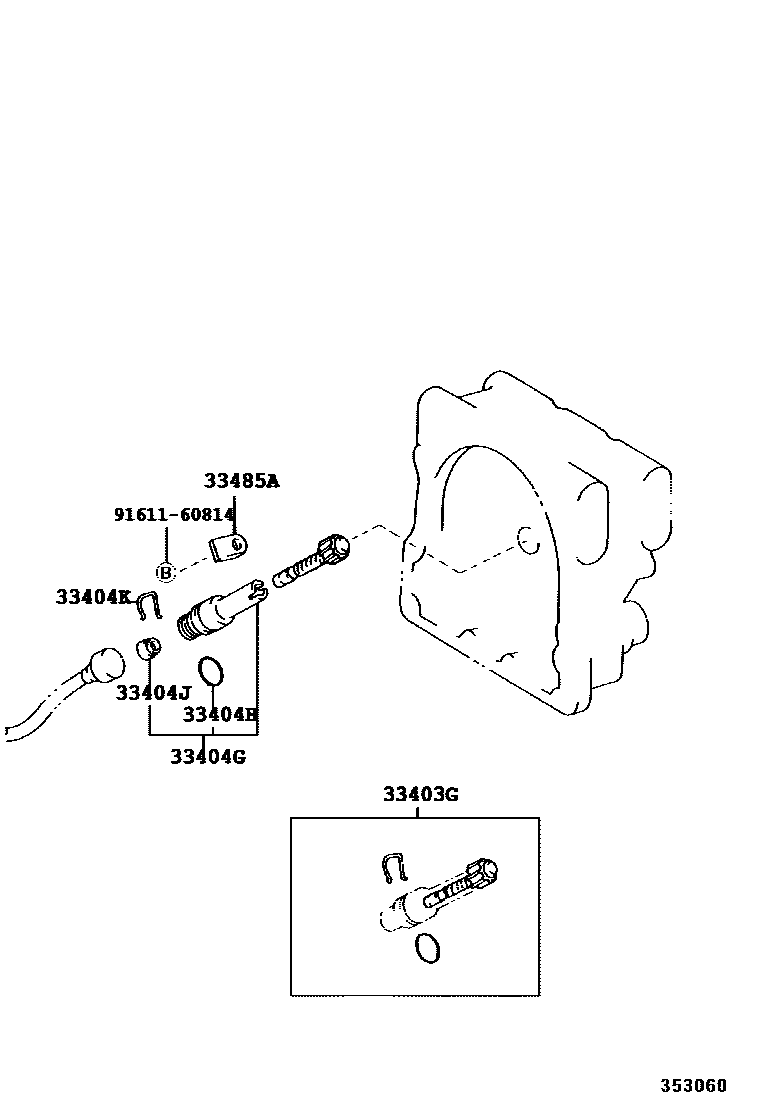

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-39295iXZU411..ATM200010-200206

N=19,MARK 19:5

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-37010iXZU411..ATM200010-200206

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iXZU411..ATM200010-200206

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-10001iXZU411..ATM200010-200206

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iXZU411..ATM200010-200206

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iXZU411..ATM200010-200206

9161160814

main91611-60814

7 parts on this diagram · 1 diagram in section
