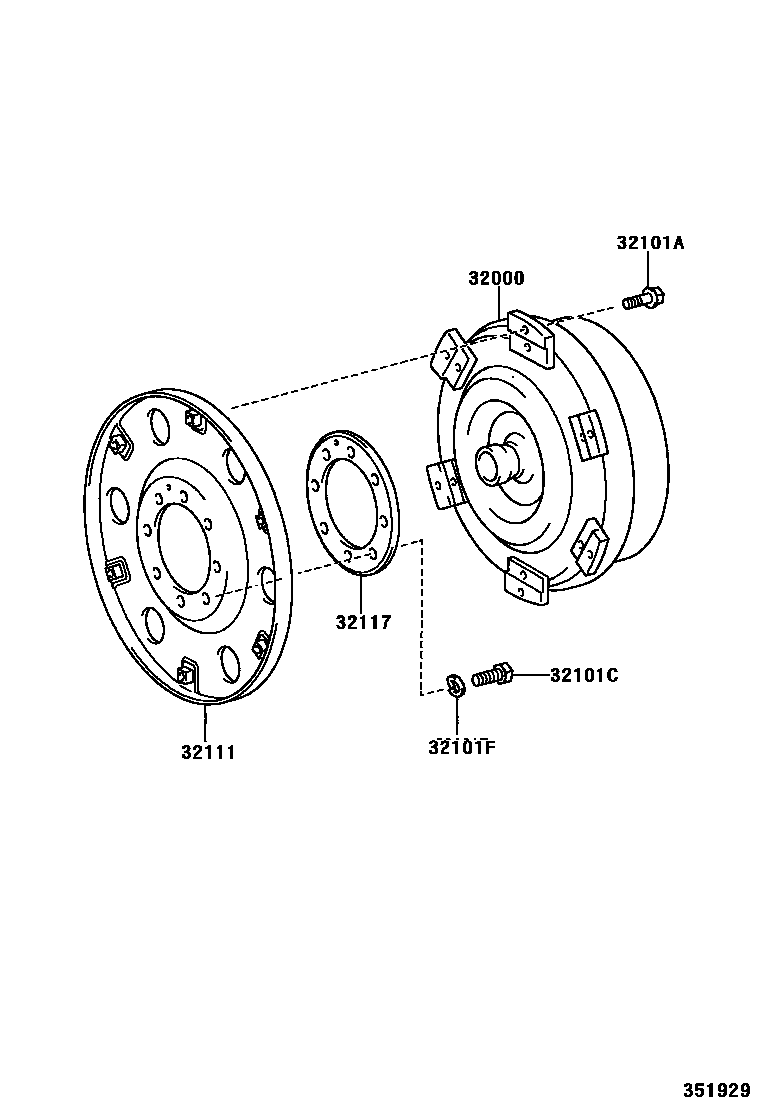

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-37010iXZU411..ATM200010-200202

sub32000-37011

main32000-37011iXZU411..ATM200202-200206

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-10894iXZU411..ATM200010-200206

*10-1.25PX28-23,BLACK

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90031-01166iXZU411..ATM200010-200206

32101FWASHER(FOR DRIVE PLATE & RING GEAR)

main90032-04005iXZU411..ATM200010-200206

32111PLATE, PUMP IMPELLER DRIVE

main32111-37020iXZU411..ATM200010-200110

sub32111-37021

main32111-37021iXZU411..ATM200110-200111

sub32111-37022

main32111-37022iXZU411..ATM200111-200206

sub32111-37023

32117SPACER, DRIVE PLATE, REAR

main32117-37010iXZU411..ATM200010-200206

6 parts on this diagram · 1 diagram in section
