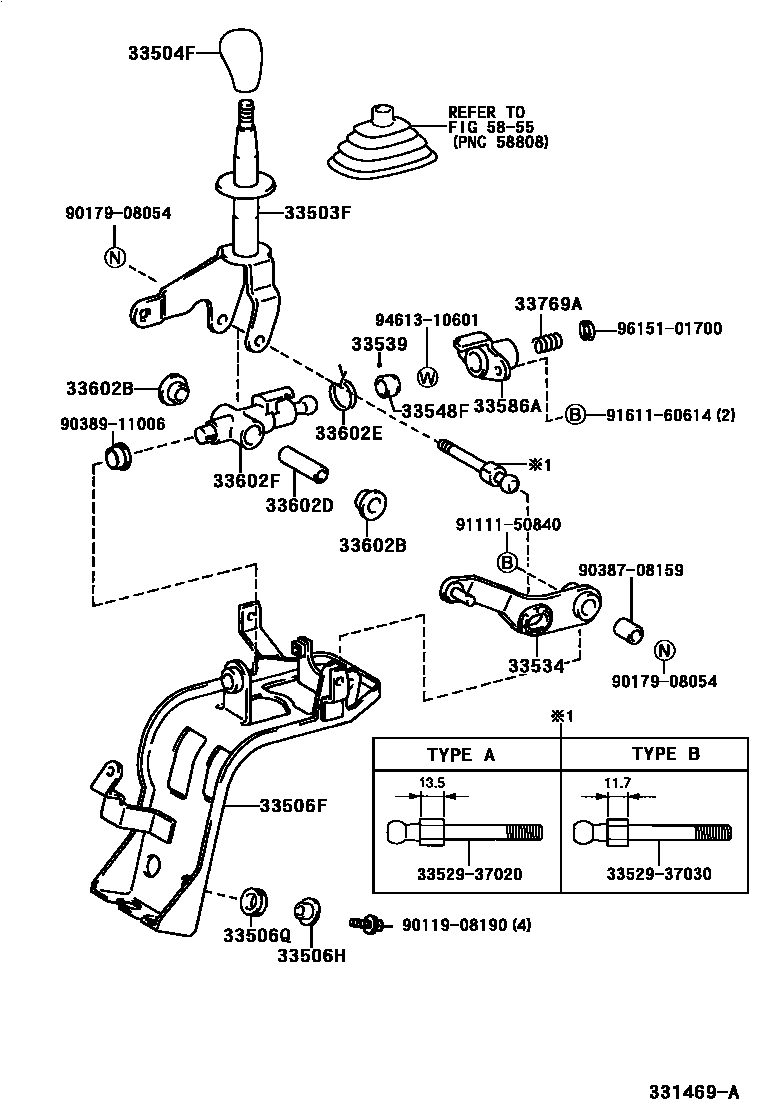

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-37050iXZU402¥5,700200010-200206

main33055-37060iXZU402¥4,060200010-200206

W/O(POWER WINDOW)

main33055-37070iXZU41#,420,430..MTM¥8,400200010-200206

main33055-37080iXZU41#,420,430..MTM¥6,000200010-200206

W/O(POWER WINDOW)

main33503-37030iXZU411..ATM¥3,210200010-200206

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-37030-B0iXZU41#,420,430..MTM200010-200206

DK.CHARCOAL,TRIM1#

sub33504-36080¥2,730

main33504-37040-B0iXZU402200010-200206

DK.CHARCOAL,TRIM1#

sub33504-36051¥2,710

main33542-37030iXZU411..ATM¥2,840200011-200206

main33542-37030-B0iXZU411..ATM200010-200011

DK.CHARCOAL,TRIM1#

sub33542-37030¥2,840

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-37031iXZU402,41#,420,430..MTM¥9,100200010-200206

main33570-37021iXZU411..ATM¥13,900200010-200206

33506HBUSH (FOR SHIFT LEVER RETAINER)

main90386-12056iXZU402,41#,420,430¥100200010-200206

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main33577-37060iXZU402,41#,420,430¥80200010-200206

33534BELLCRANK, SELECTING

main33534-37060iXZU402,41#,420,430..MTM¥1,520200010-200206

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010iXZU402,41#,420,430..MTM¥120200010-200206

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12040iXZU402,41#,420,430..MTM¥190200010-200206

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-37010iXZU402¥710200010-200206

FOLDING TYPE

main33586-37020iXZU402¥1,460200010-200206

FIXED TYPE

33602BBUSHING (FOR SELECT LEVER)

main90386-13007iXZU402,41#,420,430..MTM¥160200010-200206

33602DCOLLAR (FOR SELECT LEVER)

main90387-08063iXZU402,41#,420,430..MTM¥200200010-200206

33602ESPRING, TORSION (FOR SELECT LEVER)

main90949-03034iXZU402,41#,420,430..MTM¥130200010-200206

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-37020iXZU402,41#,420,430..MTM¥820200010-200206

33769ASPRING, CROSS SHAFT END

main33769-37020iXZU402,41#,420,430..MTM¥120200010-200206

5855

3352937020BOLT, SHIFT LEVER (FOR CONTROL SHAFT)

main33529-37020¥640

3352937030BOLT, SHIFT LEVER (FOR CONTROL SHAFT)

main33529-37030¥640

9011908190

main90119-08190¥100

9017908054

main90179-08054¥100

9038708159

main90387-08159¥220

9038911006

main90389-11006¥110

9111150840

main91111-50840¥200

9161160614

main91611-60614¥180

9461310601

main94613-10601¥70

9615101700

main96151-01700¥260

25 parts on this diagram · 4 diagrams in section
