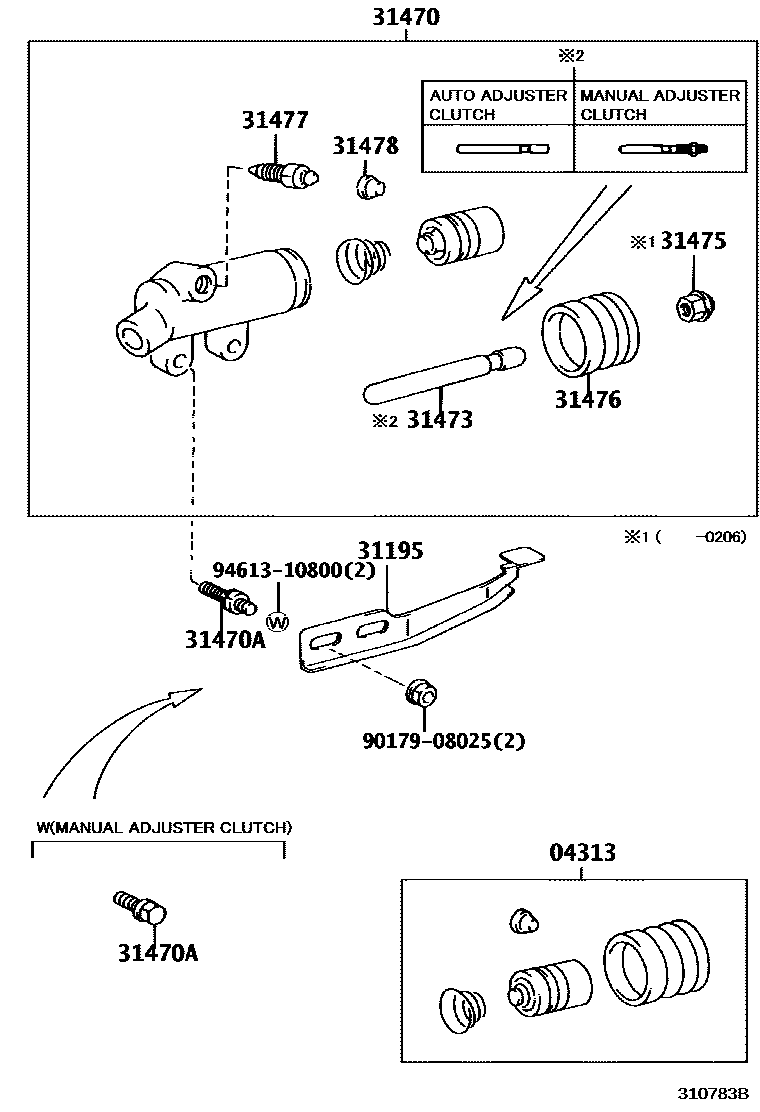

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-37030iXZU402,41#,420,430..MTM200010-200206

AUTO ADJUSTMENT CLUTCH

main04313-37040iXZU402,41#,420,430..MTM200205-200206

MANUAL ADJUSTMENT CLUTCH

31195PLATE, CLUTCH DISC WEAR INDICATOR

main31195-37040iXZU402,41#,420,430..MTM200010-200206

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-37040iXZU402,41#,420,430..MTM200010-200206

GREEN PAINTED;AUTO ADJUSTMENT CLUTCH

main31470-37060iXZU402,41#,420,430..MTM200010-200205

MANUAL ADJUSTMENT CLUTCH;BLACK PAINTED

sub31470-37061

main31470-37061iXZU402,41#,420,430..MTM200205-200206

MANUAL ADJUSTMENT CLUTCH;BLACK PAINTED

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iXZU402,41#,420,430..MTM200010-200206

*8-1.25PX25-20.1,AUTO ADJUSTMENT CLUTCH

main91611-60825iXZU402,41#,420,430..MTM200010-200206

*8-1.25PX25-25,MANUAL ADJUSTMENT CLUTCH;AUSTRALIA SPEC

sub91611-B0825

main91611-B0825iXZU402,41#,420,430..MTM200010-200206

*8-1.25PX25-25,MANUAL ADJUSTMENT CLUTCH

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14030iXZU402,41#,420,430..MTM200010-200206

AUTO ADJUSTMENT CLUTCH

main31473-37040iXZU402,41#,420,430..MTM200010-200205

MANUAL ADJUSTMENT CLUTCH

sub31473-37060

sub31475-37030

sub31476-60060

sub94120-41000

main31473-37060iXZU402,41#,420,430..MTM200205-200206

MANUAL ADJUSTMENT CLUTCH

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-37030iXZU402,41#,420,430..MTM200205-200206

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iXZU402,41#,420,430..MTM200010-200206

AUTO ADJUSTMENT CLUTCH

main31476-60060iXZU402,41#,420,430..MTM200205-200206

MANUAL ADJUSTMENT CLUTCH

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iXZU402,41#,420,430..MTM200010-200206

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iXZU402,41#,420,430..MTM200010-200206

9017908025

main90179-08025

9461310800

main94613-10800

11 parts on this diagram · 1 diagram in section
