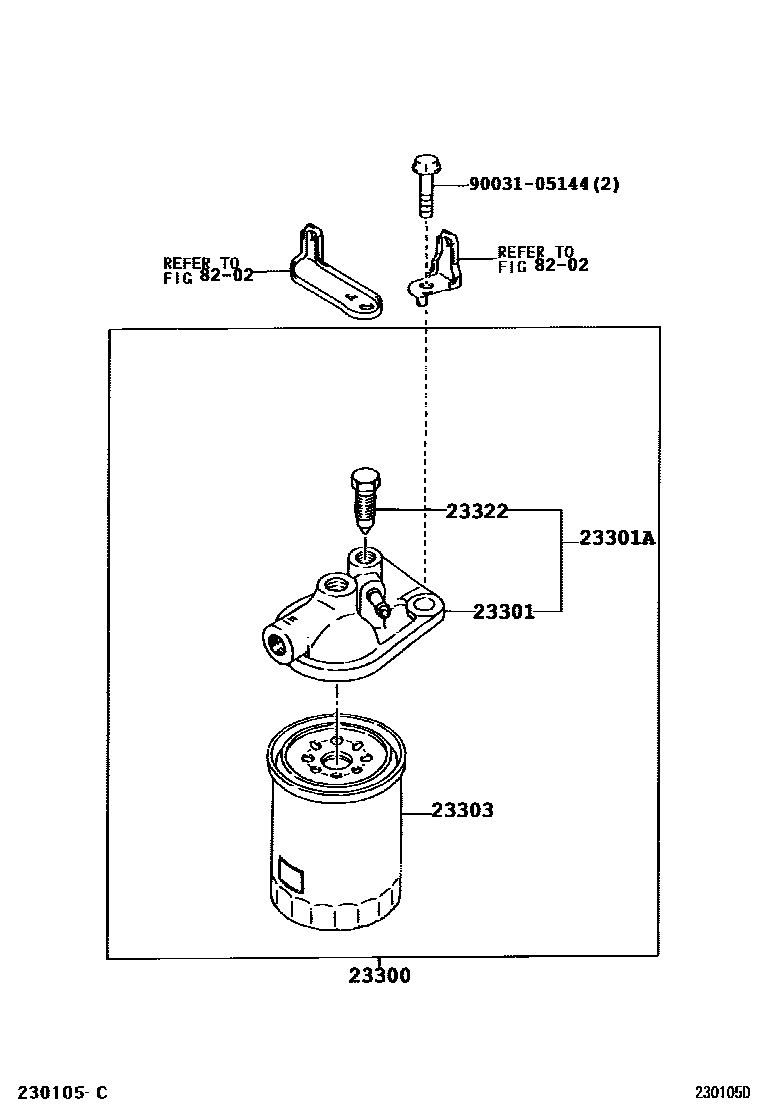

FUEL FILTER

0001 1 0002 1

23300FILTER ASSY, FUEL

main23300-78100iJ05C..XZU410,420,430200010-200206

subS2330-02262

23301BODY SUB-ASSY, FUEL FILTER

main23311-89101iJ05C..XZU410,420,430200010-200206

subS2331-11410

23301ACAP ASSY, FUEL FILTER

main23310-89101iJ05C..XZU410,420,430200010-200206

subS2331-01680

main23380-78041iS05#..XZU402,411,412200010-200206

W(FUEL HEATER)

sub23380-78042

main23380-78050iS05#..XZU402,411,412200010-200206

sub23380-78051

23303ELEMENT SUB-ASSY, FUEL FILTER

main23304-89101iJ05C..XZU410,420,430200010-200206

main23390-64480iS05#..XZU402,411,412200010-200206

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-78030iJ05C..XZU410,420,430200010-200206

main23388-64470iS05#..XZU402,411,412200010-200206

8202

9003105144

main90031-05144

7 parts on this diagram · 2 diagrams in section
