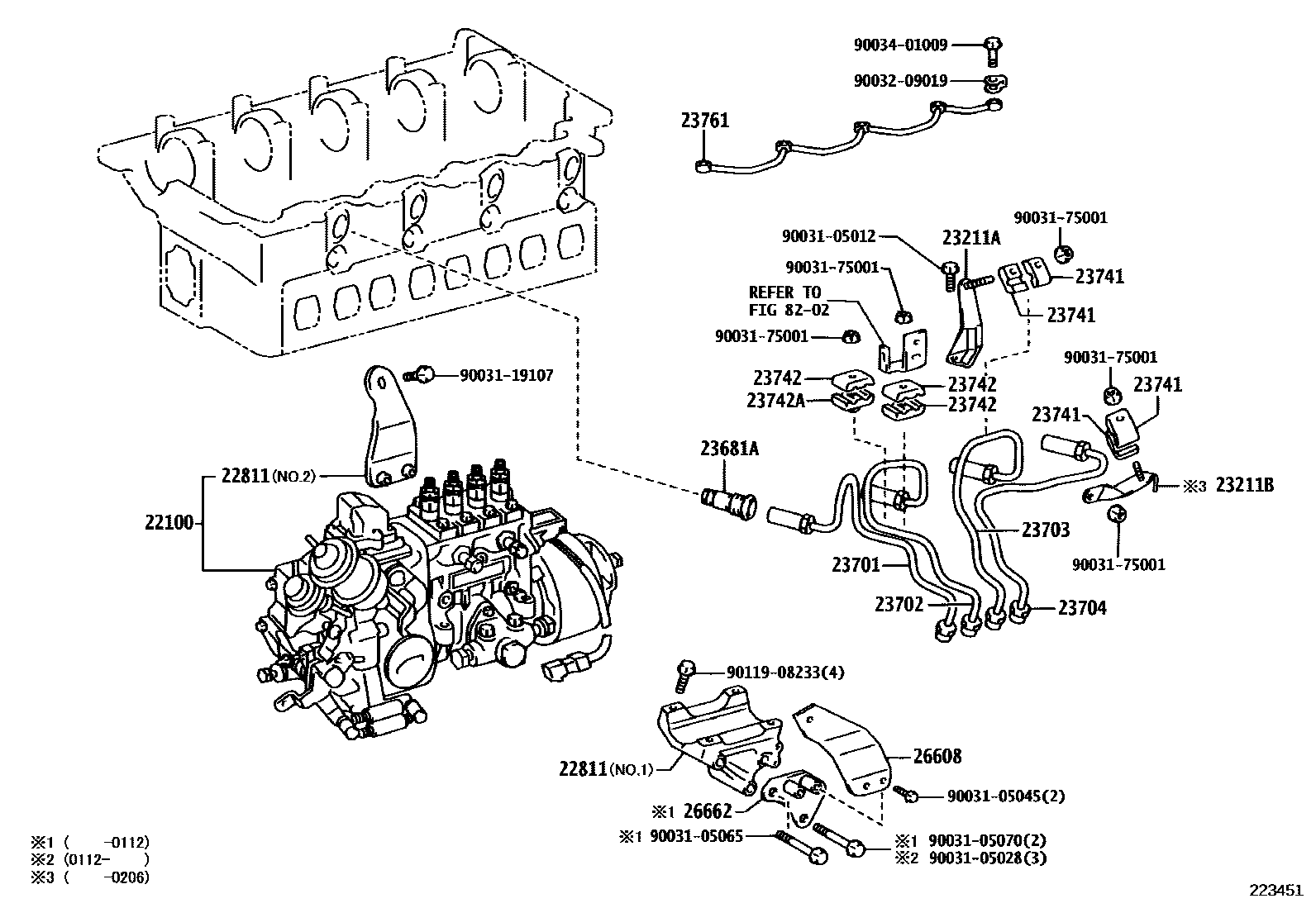

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22010-78260iJ05C..XZU410,420,430¥692,000200010-200206

sub22010-78261¥693,000

main22010-78270iJ05C..XZU410,420,430¥720,000200010-200206

W(IDLE UP FRONT HEATER)

sub22010-78271¥722,000

main22100-78052iS05D..XZU411¥372,000200010-200105

sub22100-78100¥372,000

sub82711-1E360¥60

sub90980-11073¥370

main22100-78072iS05C..XZU402,412¥372,000200010-200105

sub22100-78120¥464,000

sub82711-1E360¥60

sub90980-11073¥370

main22100-78100iS05D..XZU411¥372,000200105-200206

sub22100-E0150¥260,000

main22100-78120iS05C..XZU402,412¥464,000200105-200206

sub22100-E0130¥260,000

22811STAY, INJECTION PUMP, NO.1

main22801-78010iS05#..XZU402,411,412¥3,450200010-200206

main22811-78020iJ05C..XZU410,420,430¥20,600200010-200112

NO.1

main22811-78070iJ05C..XZU410,420,430¥23,300200112-200206

NO.1

subS1149-12340¥18,500

23211ABRACKET(FOR INJECTION PIPE NO.3)

main23211-78020iS05#..XZU402,411,412¥870200010-200206

subS1549-28040¥2,150

main23211-78040iJ05C..XZU410,420,430¥910200010-200206

subS1549-27571

23211BBRACKET(FOR INJECTION PIPE NO.4)

main23211-78030iJ05C,S05#..XZU402,41#,420,430¥610200010-200206

subS1549-27581

23681ASEAL, NOZZLE HOLDER

main23681-78010iJ05C,S05#..XZU402,41#,420,430¥2,240200010-200206

subS2307-41070¥740

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-78030iJ05C..XZU410,420,430¥8,700200010-200206

subS2370-12041¥5,200

main23701-78041iS05#..XZU402,411,412¥9,400200010-200206

subS2370-12051¥5,700

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-78030iJ05C..XZU410,420,430¥8,700200010-200206

subS2370-21981¥5,200

main23702-78040iS05#..XZU402,411,412¥9,400200010-200206

subS2370-21990¥5,700

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-78030iJ05C..XZU410,420,430¥8,700200010-200206

subS2370-32020¥7,700

main23703-78040iS05#..XZU402,411,412¥9,400200010-200206

sub23703-78041¥9,400

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-78030iJ05C..XZU410,420,430¥8,700200010-200206

subS2370-42021¥5,200

main23704-78040iS05#..XZU402,411,412¥9,400200010-200206

sub23704-78041¥9,400

23741CLAMP, INJECTION PIPE, NO.1

main90034-68024iJ05C..XZU410,420,430¥430200010-200206

23742CLAMP, INJECTION PIPE, NO.2

main23742-66020iS05#..XZU402,411,412¥500200010-200206

23742ACLAMP, INJECTION PIPE, NO.3

main23742-78020iS05#..XZU402,411,412¥1,150200010-200206

subS7990-44120¥630

main23742-78040iJ05C..XZU410,420,430¥670200010-200206

subS7990-44110

23761PIPE, NOZZLE LEAKAGE, NO.1

main23761-78020iJ05C,S05#..XZU402,41#,420,430¥5,700200010-200206

subS2308-12510¥6,900

26608BRACKET SUB-ASSY, ACCELERATOR WIRE

main26608-78030iJ05C..XZU410,420,430¥3,720200010-200206

26662BRACKET, ACCELERATOR WIRE

main26662-78010iJ05C..XZU410,420,430¥4,090200010-200112

8202

9003105012

main90031-05012¥410

9003105028

main90031-05028¥650

9003105045

main90031-05045¥170

9003105065

main90031-05065¥600

9003105070

main90031-05070¥400

9003119107

main90031-19107¥260

9003175001

main90031-75001¥100

9003209019

main90032-09019¥500

9003401009

main90034-01009¥1,550

9011908233

main90119-08233¥220

26 parts on this diagram · 3 diagrams in section
