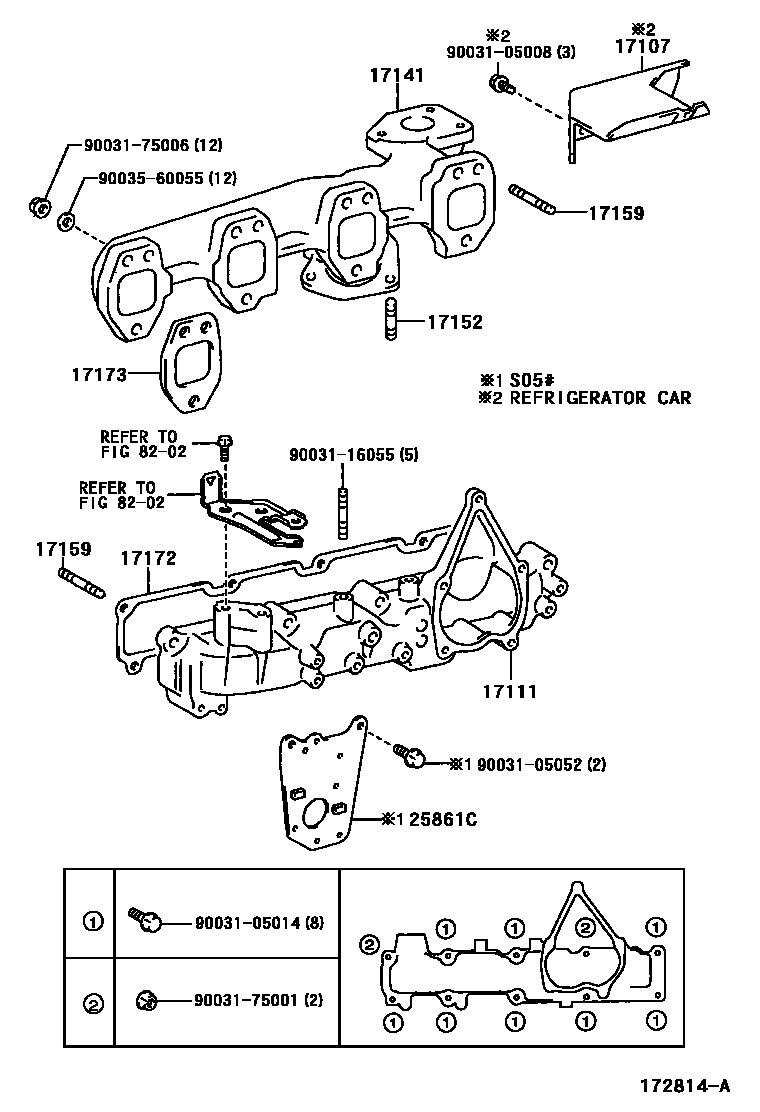

MANIFOLD

17107INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT

main17107-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

17111MANIFOLD, INTAKE

main17111-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1711-13611

17141MANIFOLD, EXHAUST

main17141-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

sub17141-78031

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90031-16063iJ05C,S05#..XZU402,41#,420,430200010-200206

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90031-16054iJ05C,S05#..XZU402,41#,420,430200010-200206

INTAKE SIDE

main90031-16069iJ05C,S05#..XZU402,41#,420,430200010-200206

EXHAUST SIDE

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1717-11670

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-89102iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1710-41610

25861CBRACKET, VACUUM SWITCHING VALVE

main25861-78040iS05#..XZU402,411,412200010-200206

subS2204-41470

8202

9003105008

main90031-05008

9003105014

main90031-05014

9003105052

main90031-05052

9003116055

main90031-16055

9003175001

main90031-75001

9003175006

main90031-75006

9003560055

main90035-60055

16 parts on this diagram · 1 diagram in section
