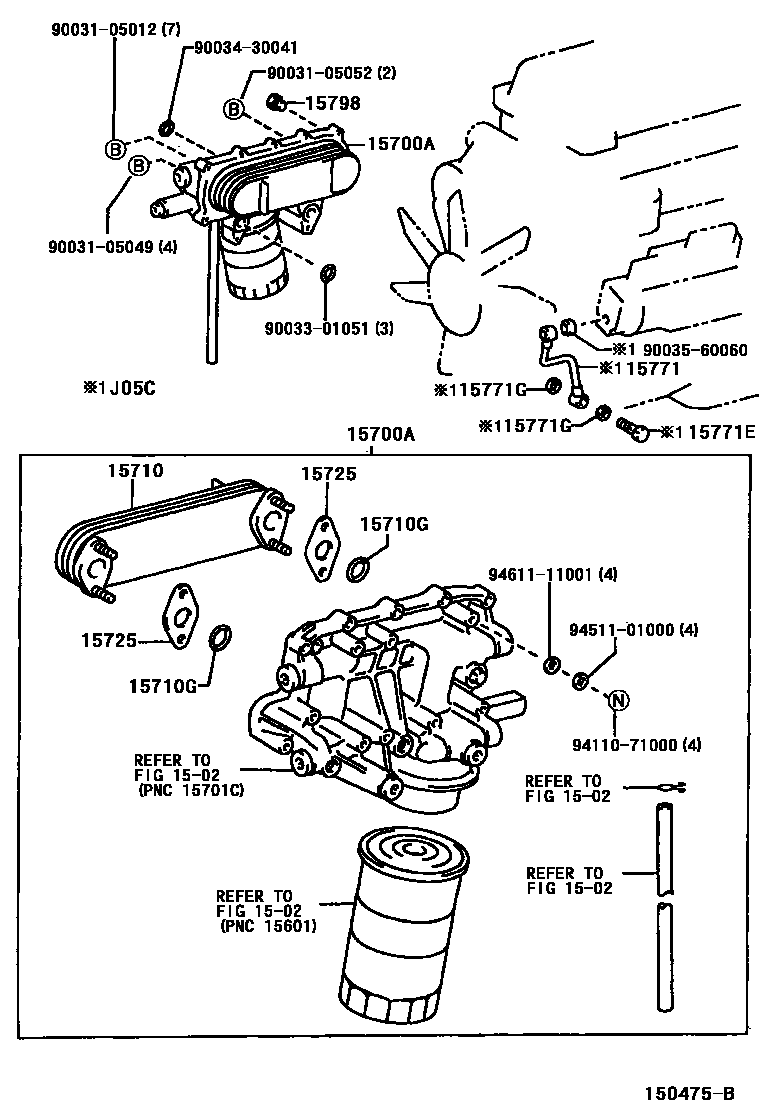

ENGINE OIL COOLER

1502

15700ACOOLER ASSY, OIL W/BRACKET

main15700-78071iJ05C,S05#..XZU402,41#,420,430200010-200206

sub15700-78072

15710COOLER ASSY, OIL

main15710-78030iJ05C,S05#..XZU402,41#,420,430200010-200206

15710GRING, O, NO.2

main90033-01055iJ05C,S05#..XZU402,41#,420,430200010-200206

15725GASKET, OIL COOLER COVER

main15781-89101iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1571-71320

15771PIPE, OIL, NO.1

main29601-78020iJ05C..XZU410,420,430200010-200206

subS1577-42411

15771EBOLT, UNION(FOR OIL PIPE)

main90034-01010iJ05C..XZU410,420,430200010-200206

15771GGASKET

main90202-14004iJ05C..XZU410,420,430200010-200206

15798PLUG, OIL NOZZLE UNION BOLT

main15798-89101iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1571-61130

9003105012

main90031-05012

9003105049

main90031-05049

9003105052

main90031-05052

9003301051

main90033-01051

9003430041

main90034-30041

9003560060

main90035-60060

9411071000

main94110-71000

9451101000

main94511-01000

9461111001

main94611-11001

18 parts on this diagram · 1 diagram in section
