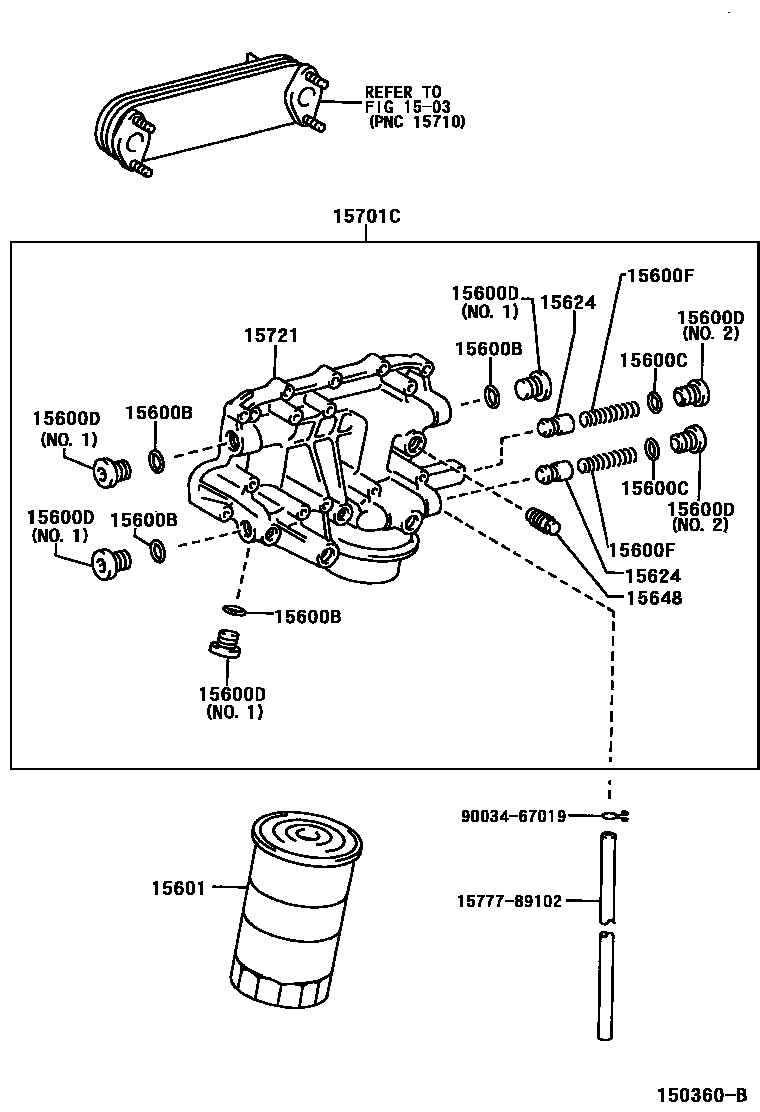

OIL FILTER

1503

15600BRING, O, NO.1(FOR OIL FILTER)

main90033-01052iJ05C,S05#..XZU402,41#,420,430200010-200206

15600CRING, O, NO.2(FOR OIL FILTER)

main96711-24020iJ05C,S05#..XZU402,41#,420,430200010-200206

15600DPLUG(FOR OIL FILTER)

main15529-89102iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.1

subS1571-61100

main15529-89106iJ05C,S05#..XZU402,41#,420,430200010-200206

NO.2

subS1571-61150

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main15532-89103iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1566-11450

15601FILTER SUB-ASSY, OIL

main15613-89103iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1560-72121

15624VALVE, FILTER, NO.1

main15690-78010iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1567-51020

15648PLUG, OIL FILTER DRAIN

main15529-89104iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1566-21320

15701CCOVER SUB-ASSY, OIL COOLER

main15720-78020iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1572-01361

15721COVER, OIL COOLER

main15701-78040iJ05C,S05#..XZU402,41#,420,430200010-200206

subS1570-12171

1577789102HOSE, OIL COOLER

main15777-89102

9003467019

main90034-67019

12 parts on this diagram · 1 diagram in section
