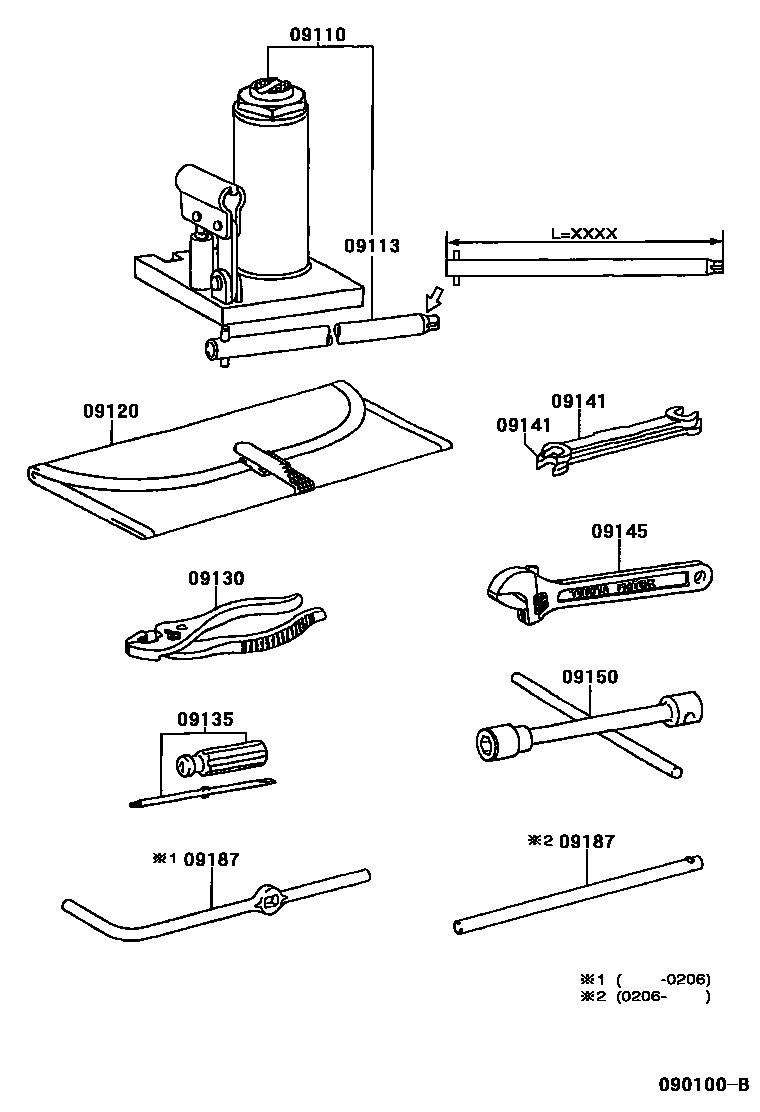

STANDARD TOOL

09110JACK ASSY

main09110-37100iXZU402,411,412200010-200112

sub09110-37250

sub09187-37010

sub75298-37020

sub75299-37040

sub94271-00800

main09110-37110iXZU410,420,430200010-200112

sub09110-37260

sub09187-37010

sub75298-37020

sub75299-37040

sub94271-00800

main09110-37280iXZU402,41#,420,430200112-200206

5TON(L=1150)

sub09111-37170

sub09113-37080

sub09187-37010

09113HANDLE, JACK

main09113-37040iXZU402,411,412200010-200206

sub09113-36140

main09113-37050iXZU410,420,430200010-200206

sub09113-36140

09120BAG, TOOL

main09120-37020iXZU402,41#,420,430200010-200206

sub09120-37030

09130PLIERS

main99913-11500iXZU402,41#,420,430200010-200206

09135DRIVER, SCREW

main99915-10700iXZU402,41#,420,430200010-200206

09141SPANNER

main99914-10810iXZU402,41#,420,430200010-200206

8 X 10

main99914-11214iXZU402,41#,420,430200010-200206

12 X 14

09145WRENCH, MONKEY

main99911-11200iXZU402,41#,420,430200010-200206

09150WRENCH, HUB NUT BOX

main09150-36030iXZU402,41#,420,430200010-200206

sub09150-37030

09187HANDLE, SPARE WHEEL CARRIER

main09187-36070iXZU402,41#,420,430200010-200206

9 parts on this diagram · 1 diagram in section
