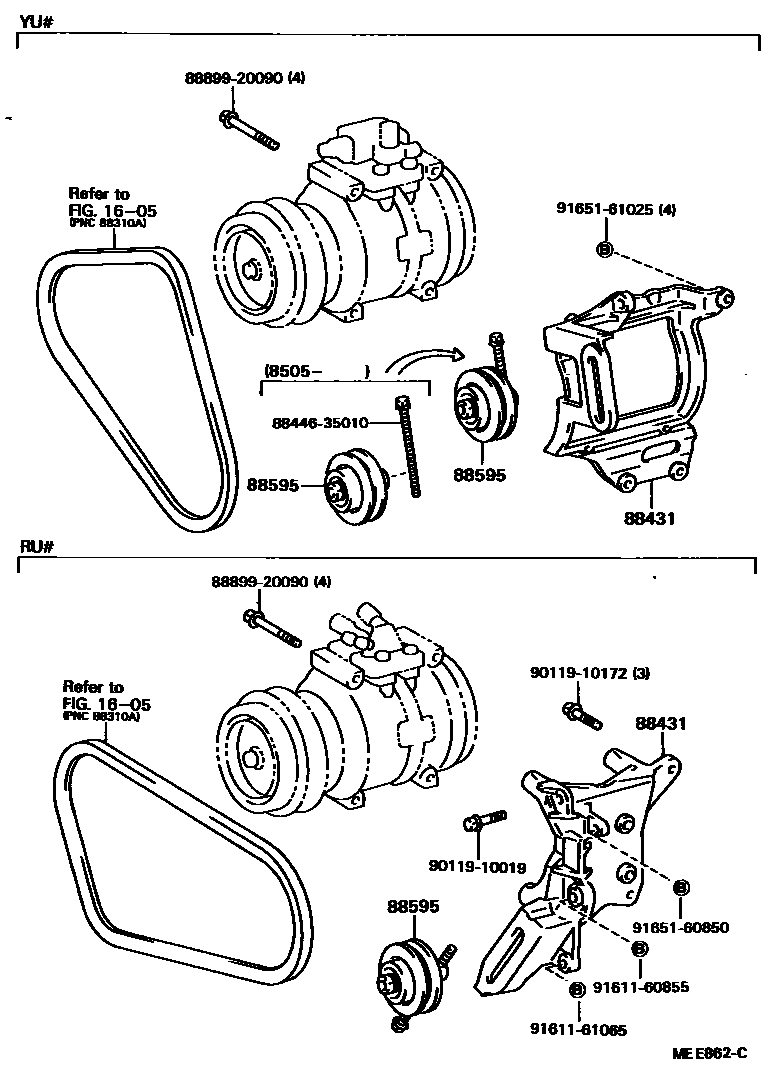

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0006 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26150iRU75,85198409-198708

main88431-28050iYU6#,70,80..ARL,GEN,SA198409-198505

sub88431-22200

main88431-28070iYU6#,71,81..GEN,SA198505-198708

main88431-36200iWU9#..ARL,GEN198409-198708

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12160iWU9#..ARL,GEN198409-198708

main88440-16010iRU75,85198409-198708

sub88440-22050

main88440-28050iYU6#,70,80..ARL,GEN,SA198409-198505

main88440-35020iYU6#,70,80..ARL,GEN,SA198505-198708

8844635010BOLT, IDLE PULLEY

main88446-35010

8889920090COVER, EVAPORATOR

main88899-20090

9011910019

main90119-10019

9011910172

main90119-10172

9161160855

main91611-60855

9161161065

main91611-61065

9165160850

main91651-60850

9165161025

main91651-61025

11 parts on this diagram · 5 diagrams in section
