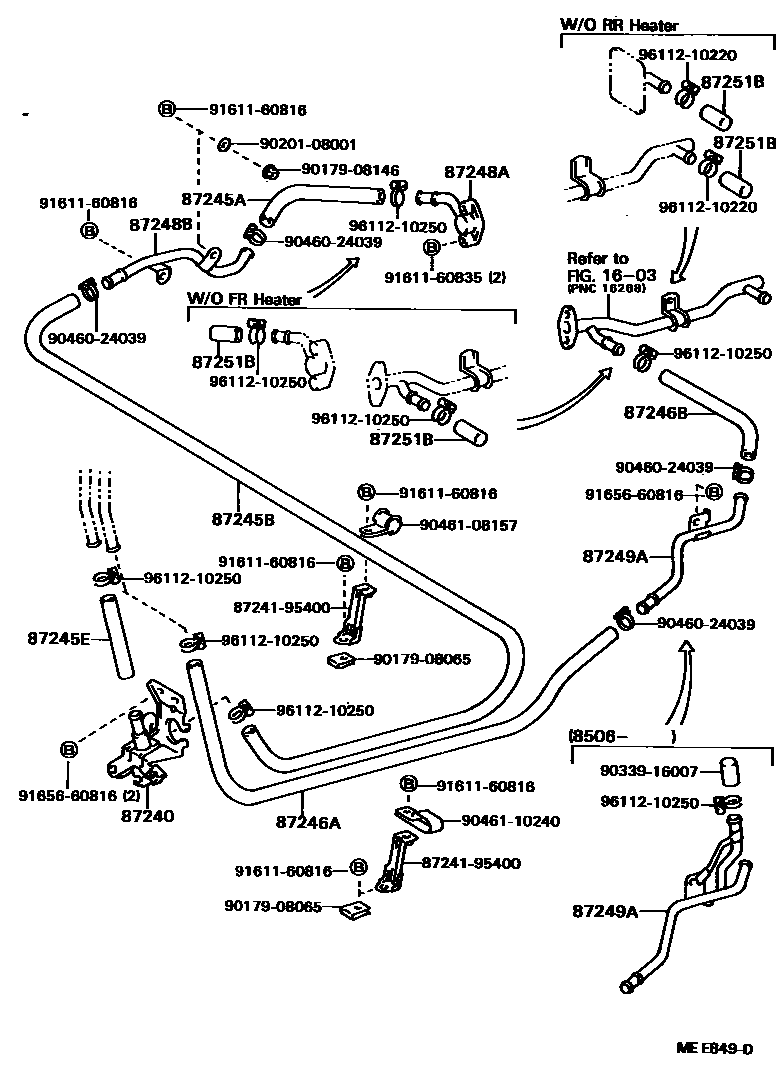

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

87240VALVE ASSY, HEATER WATER

main87240-95405iRU85,WU9#,YU60,62,8#..RHD198409-198708

sub87240-95407

main87240-95406iRU75,85,WU9#,YU6#,7#,8#..LHD198409-198708

87245AHOSE, HEATER WATER, INLET A

main87209-95438iRU85..SA198608-198708

main87245-95444iRU75,85198409-198708

main87245-95452iWU9#..ARL,GEN198409-198708

sub87245-95J49

main87245-95468iWU9#..SA198409-198708

sub87245-14690

main99556-30300iYU6#,7#,8#198409-198708

*H,L=270

87245BHOSE, HEATER WATER, INLET B

main99556-30500iWU9#..ARL,GEN198409-198708

L=500

main99556-30700iYU6#,7#,8#..LHD198409-198708

L=700

sub99556-31000

main99556-30980iYU60,62,8#..RHD198409-198708

*H,L=820

sub99556-31000

main99556-30980iYU60,62,8#..RHD198409-198708

*H,L=980

sub99556-31000

87245EHOSE, HEATER WATER, INLET E

main99556-30100iRU75,85,WU9#,YU6#,7#,8#198409-198708

*H,L=60

87246AHOSE, HEATER WATER, OUTLET A

main99556-30700iRU75,85,WU9#198409-198708

*H,L=520

sub99556-31000

main99556-30980iYU6#,7#,8#..LHD198409-198708

*H,L=800

sub99556-31000

main99556-30980iYU6#,7#,8#..LHD198409-198708

*H,L=960

sub99556-31000

87246BHOSE, HEATER WATER, OUTLET B

main87245-95460iYU6#,7#,8#198409-198708

main87245-95462iWU90..RHD..(ARL,GEN)198409-198508

sub99556-30370

main87245-95464iRU75,85,WU9#..LHD198409-198708

main99556-30500iWU90..RHD..(ARL,GEN)198508-198708

*H,L=370

87248APIPE, HEATER WATER INLET, A

main87208-28010iYU6#,7#,8#198409-198708

main87248-14090iWU9#198409-198708

87248BPIPE, HEATER WATER INLET, B

main87208-95407iYU6#,70,80198409-198708

main87208-95412iYU6#,7#,8#..LHD198506-198708

sub87208-95407

87249APIPE, HEATER WATER OUTLET, A

main87208-95404iRU75,85198409-198608

sub87208-95415

main87208-95408iYU6#,70,80198409-198708

main87208-95411iYU60,62,8#..RHD198506-198708

sub87208-95408

main87208-95415iRU75,85198608-198708

main87248-14090iWU9#..ARL,GEN198409-198508

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30190iWU9#198409-198708

87251BPLUG, HEATER WATER

main90339-13009iYU6#,7#,8#198409-198708

RR HEATER

main90339-16007iWU9#..GEN198409-198708

FR HEATER

sub90339-16001

8724195400CONTROLLER, WATER VALVE

main87241-95400

9017908065

main90179-08065

9017908146

main90179-08146

9020108801

main90201-08801

9033916007

main90339-16007

9046024039

main90460-24039

9046108157

main90461-08157

9046110240

main90461-10240

9161160816

main91611-60816

9161160835

main91611-60835

9165660816

main91656-60816

9611210220

main96112-10220

9611210250

main96112-10250

25 parts on this diagram · 6 diagrams in section
