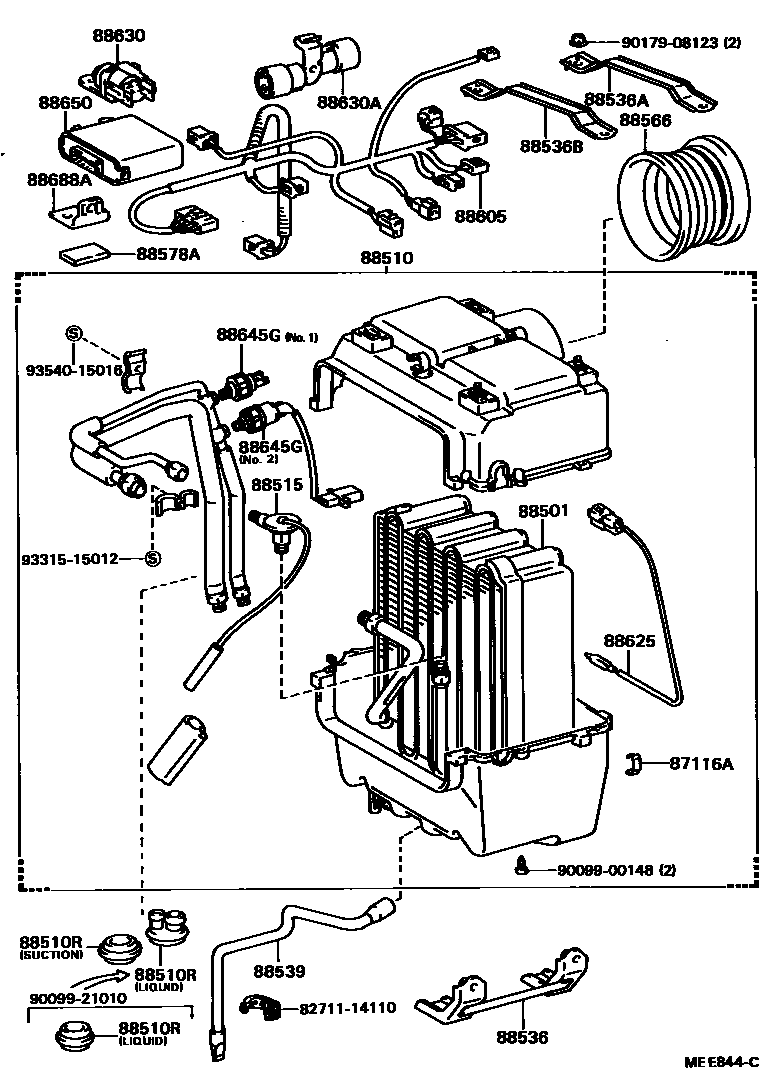

HEATING & AIR CONDITIONING - COOLER UNIT

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iWU9#..ARL,GEN;RU75,85,YU6#,7#,8#..ARL,GEN,SA198409-198708

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-95401iYU60,80..RHD;WU90..RHD..(ARL,GEN)198409-198603

sub88501-95403

main88501-95402iRU75,85,WU9#,YU6#,70,80..LHD..GEN198409-198603

sub88501-95404

main88501-95403iYU60,62,8#..RHD;WU90..RHD..(ARL,GEN)198603-198708

main88501-95404iRU75,85,WU9#,YU6#,7#,8#..LHD..GEN198603-198708

88510UNIT ASSY, COOLER

main88510-95401iYU60,62,8#..RHD;WU90..RHD..(ARL,GEN)198409-198708

main88510-95402iRU75,85,WU9#,YU6#,7#,8#..LHD..GEN198409-198708

88510RGROMMET (FOR COOLER UNIT)

main90099-21010iYU6#,7#,8#..ARL,GEN,SA198409-198708

LIQUID PIPE

main90099-21010iYU6#,7#,8#..ARL,GEN,SA198409-198708

LIQUID PIPE,W/*BV

main90099-32098iYU6#,7#,8#..ARL,GEN,SA198409-198708

LIQUID PIPE,W/HEATER

main90480-36003iWU9#..ARL,GEN;RU75,85,YU6#,7#,8#..ARL,GEN,SA198409-198703

SUCTION PIPE

main90480-36010iWU9#..ARL,GEN;RU75,85,YU6#,71,81198703-198708

SUCTION PIPE

88515VALVE, COOLER EXPANSION

main88515-16030iRU75,85,WU9#,YU6#,7#,8#..LHD..GEN198409-198708

sub88515-16031

main88515-16031iYU60,62,8#..RHD;WU90..RHD..(ARL,GEN)198604-198708

88536BRACKET, COOLING UNIT, NO.1

main88536-95403iWU9#..ARL,GEN;RU75,85,YU6#,7#,8#..ARL,GEN,SA198409-198708

88536ABRACKET, COOLING UNIT, NO.2

main88536-95404iYU6#,7#,8#..ARL,GEN,SA198409-198708

main88536-95408iRU75,85,WU9#..ARL,GEN198409-198708

88536BBRACKET, COOLING UNIT, NO.3

main88536-95405iYU60,62,8#..RHD198409-198708

main88536-95406iYU6#,7#,8#..LHD..GEN198409-198708

main88536-95407iRU75,85,WU9#..LHD198409-198708

main88536-95409iWU90..RHD..(ARL,GEN)198409-198708

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-95405iYU60,62,8#..RHD198409-198703

sub88539-95409

main88539-95406iYU6#,7#,8#..LHD..GEN198409-198703

sub88539-95410

main88539-95407iRU85..SA198409-198703

sub88539-95411

main88539-95408iRU75,85,WU9#..LHD198409-198703

sub88539-95412

main88539-95409iYU62,81..RHD198703-198708

main88539-95410iYU6#,71,81198703-198708

main88539-95411iRU85..SA198703-198708

main88539-95412iRU75,85,WU9#..LHD198703-198708

88566DUCT, COOLER AIR, NO.1

main88566-95407iYU6#,7#,8#..ARL,GEN,SA198409-198708

main88566-95408iRU75,85,WU9#..ARL,GEN198409-198708

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-95400iWU9#..ARL,GEN;RU75,85,YU6#,7#,8#..ARL,GEN,SA198409-198708

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-95404iYU6#,7#,8#..ARL,GEN,SA198409-198708

main88605-95406iWU9#..ARL,GEN198409-198708

main88605-95407iRU75,85198409-198708

88625THERMISTOR, COOLER, NO.1

main88625-95A00iWU9#..ARL,GEN;RU75,85,YU6#,7#,8#..ARL,GEN,SA198409-198708

sub88625-28150

88630RELAY ASSY, COOLER

main88630-60020iWU9#..ARL,GEN;RU75,85,YU6#,7#,8#..ARL,GEN,SA198409-198708

main88630-95400iWU90..LHD198411-198708

CHINA SPEC(24V)

88630ARELAY ASSY, COOLER

main88630-95401iRU85..SA198409-198708

main88630-95403iRU75,85,WU9#,YU6#,7#,8#..LHD..GEN198409-198708

main88630-95405iWU90..LHD198411-198708

CHINA SPEC(24V)

88645GSWITCH, PRESSURE

main88645-17010iWU9#..ARL,GEN;RU75,85,YU6#,7#,8#..ARL,GEN,SA198409-198708

NO.2

main88645-95J00iWU9#..ARL,GEN;RU75,85,YU6#,7#,8#..ARL,GEN,SA198409-198708

NO.1

sub88645-12020

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iWU9#..ARL,GEN198409-198708

main88650-87101iRU75,85,YU6#,7#,8#..ARL,GEN,SA198409-198708

main88650-95A00iWU90..LHD198411-198708

CHINA SPEC(24V)

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-95425iWU9#..ARL,GEN;RU75,85,YU6#,7#,8#..ARL,GEN,SA198409-198708

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9009900148

main90099-00148

9009921010

main90099-21010

9017908123

main90179-08123

9331515012

main93315-15012

9354015016

main93540-15016

24 parts on this diagram · 1 diagram in section
