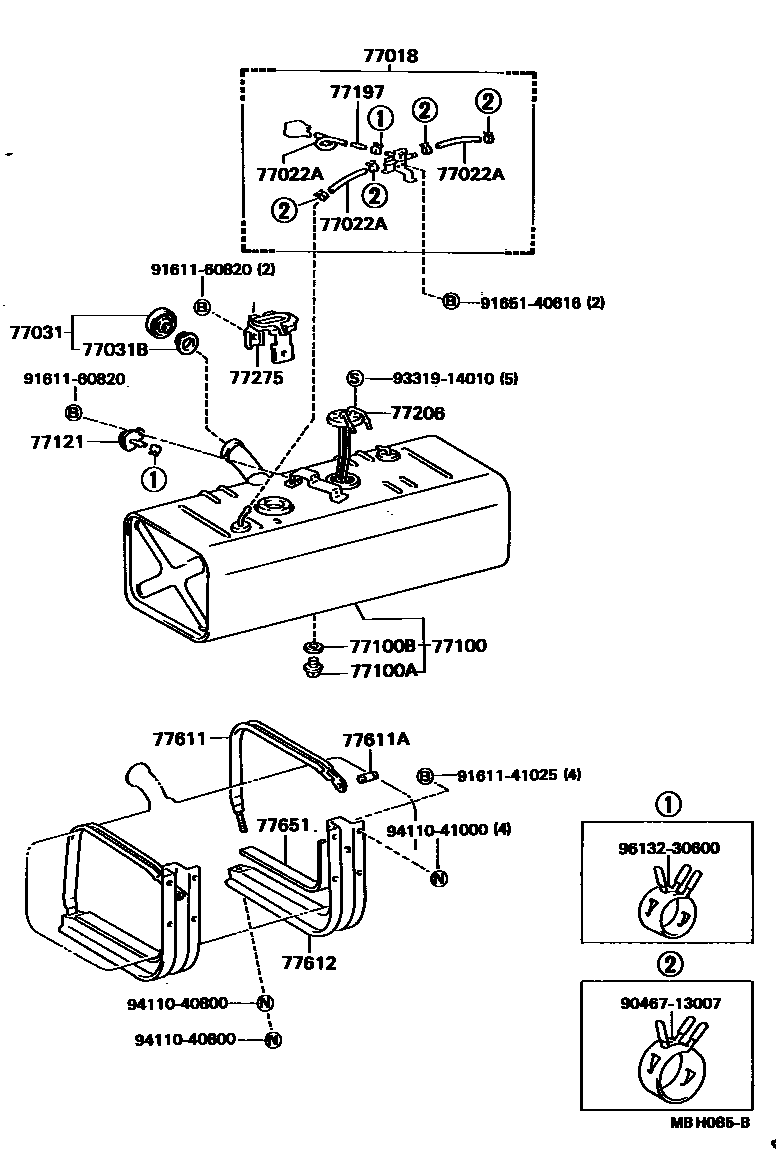

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36061iYU7#;YU60,62..TW1198409-198708

main77018-36071iYU60..T1198409-198608

main77018-36130iRU75,85,WU9#,YU6#,8#..(L1,L2,T3)..(EUR,GEN,SA)198409-198708

SUB TANK

main77018-36140iYU60,62..ARL198409-198708

sub77018-36090

main77018-55010iWU90..ARL198409-198708

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95332-06040iYU7#;YU60,62..T1,TW1198409-198708

L=400(*H,L=340)

sub95333-06040

main95332-08010iWU90..ARL198409-198708

L=100(*H,L=70)

main95332-08020iYU7#;YU60,62..TW1198409-198708

L=200(*H,L=170)

sub95333-08020

main95332-08030iYU7#198409-198708

L=300(*H,L=220)

sub95333-08030

77031CAP ASSY, FUEL TANK

main77310-12041iRU75,85,YU6#,70,80198409-198508

SUB TANK

main77310-55080iWU9#198409-198708

SUB TANK

sub77310-60100

main77310-60051iYU8#;RU85..GEN198508-198708

SUB TANK

sub77310-60090

77031BGASKET (FOR FUEL TANK CAP)

main77316-12040iRU75,85,YU6#,70,80198409-198508

SUB TANK

main77316-27010iWU9#..GEN198409-198708

SUB TANK

77100TANK ASSY, FUEL

main77001-36660iWU90..ARL198409-198708

main77001-36670iYU60..T1198409-198608

main77001-36680iYU60,62..TW1198409-198708

main77001-36700iYU7#198409-198708

main77001-36710iYU60,62..WT..(ARL,GEN);RU75,85,WU9#,YU8#..GEN,SA198409-198708

sub77001-36830

main77001-36720iYU8#;RU85,WU9#..GEN198409-198708

SUB TANK

sub77001-36880

main77001-36730iYU60,62..T3..ST198409-198708

main77001-36830iYU60..EUR198508-198608

main77001-36830iYU81..LHD..IV3198608-198708

SWITZERLAND SPEC

main77001-36880iYU81..LHD..IV3198608-198708

SWITZERLAND SPEC,SUB TANK

77100APLUG(FOR FUEL TANK)

main90105-12018iRU75,85,WU9#,YU6#,7#,8#198409-198708

77100BGASKET(FOR FUEL TANK)

main90430-12245iRU75,85,WU9#,YU6#,7#,8#198409-198708

77121PROTECTOR, FUEL TUBE

main77243-36010iYU60,62;RU75,85,WU9#,YU61,63,7#,8#..GEN,SA198409-198708

SUB TANK

main77258-36010iWU90..ARL198409-198708

77197ORIFICE, FUEL VAPOR

main77198-35010iWU90..ARL198409-198708

main90977-02001iYU7#;YU60,62..T1,TW1198409-198708

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-36121iYU60..T1198409-198708

main77017-36150iYU60,62..TW1198409-198708

main77017-36170iYU7#198409-198708

sub77017-36171

main77017-36191iRU75,85,WU9#,YU8#198409-198708

77275PROTECTOR, FUEL EVAPORATIVE SEPARATOR

main77197-36010iYU61,63198409-198708

77611BAND, FUEL TANK

main77601-25090iYU7#;YU60,62..TW1198409-198708

main77601-36090iYU60..T1198409-198608

main77601-36140iRU75,85,WU9#,YU60,62,8#..T3..(EUR,GEN,SA)198409-198708

SUB TANK

sub77601-37030

main77601-36150iYU61,63;WU90,YU60,62..ARL198409-198708

sub77601-37040

77611APIN (FOR FUEL TANK BAND)

main77629-25010iYU7#;YU60,62..TW1198409-198708

main77629-36010iRU75,85,WU9#,YU6#,8#..L1,L2,T1,T3198409-198708

SUB TANK

77612BRACKET SUB-ASSY, FUEL TANK

main77501-28011iYU7#;YU60,62..TW1198409-198708

sub77501-25091

main77633-36090iRU75,85,WU9#,YU60,62,8#..T3..(EUR,GEN,SA)198409-198708

SUB TANK

sub77633-36091

main77633-36111iYU61,63;WU90,YU60,62..ARL198409-198708

sub77633-36112

main77633-36120iYU60..T1198409-198608

sub77633-36121

77651PACKING, FUEL TANK BRACKET

main77651-26040iYU7#;YU60,62..TW1198409-198708

main77651-36100iRU75,85,WU9#,YU6#,8#..L1,L2,T3198409-198708

SUB TANK

main77651-36110iYU60..T1198409-198608

9046713007

main90467-13007

9161141025

main91611-41025

9161160820

main91611-60820

9165140616

main91651-40616

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9613230600

main96132-30600

23 parts on this diagram · 10 diagrams in section
