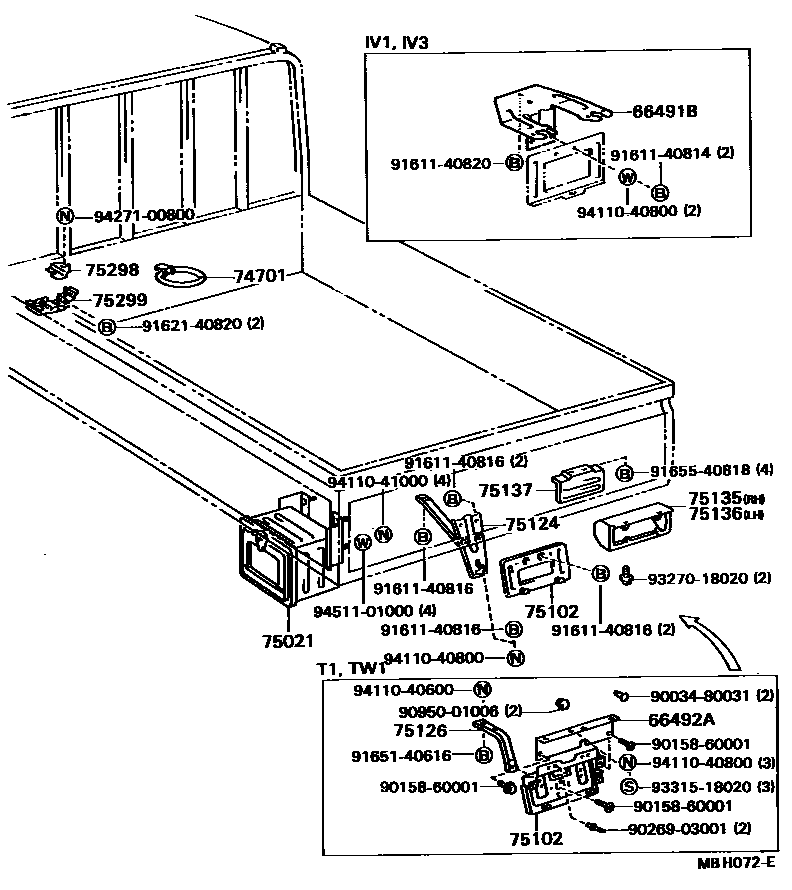

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1 0003 1 0004 1

66491BHANGER, LICENSE PLATE BRACKET

main66491-95412iYU60,62,8#..IV3198508-198708

66492ABRACKET, LICENSE HANGER

main66492-95400iYU60,62..(T1,TW1)..CBU198409-198708

74701CLAMP SUB-ASSY, TOOL BAG

main58705-92601iYU7#..BUS;YU60,62..TW1198409-198708

main58705-95400iRU75,85,WU9#,YU6#,8#..L1,L2,T1,T3198409-198708

75021BOX SUB-ASSY, TOOL

main75021-93100iYU61198409-198410

sub75021-93102

main75021-93102iYU61198410-198508

main75021-93105iYU61,63..L1198508-198708

main75021-93106iYU61,63..L2198508-198708

main75210-92704iYU60,62..T1,T3198409-198708

main75210-92803iRU75198409-198708

main75210-92804iRU85,WU9#,YU80..GEN,SA198409-198708

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-92801iRU75..CBU198409-198708

main66490-92802iRU85,WU9#198409-198708

main66490-95018iYU60,62..(T1,TW1)..CBU198409-198708

main75102-25020iYU60,62,8#..IV3198409-198708

main75102-36010iYU61,63198409-198708

sub75102-92800

main75102-92605iYU7#198409-198708

main75102-92801iYU8#..CBU198409-198708

75124SUPPORT, REAR LICENSE BRACKET

main66490-95408iYU60,62..T3..ST..CBU198409-198708

main66490-95410iYU60,62..WT..CBU198409-198708

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main66493-92601iYU7#198409-198708

main66493-92703iYU60,62..T1,TW1198409-198708

sub66493-95418

main66493-92801iRU75198409-198708

main66493-92802iYU8#198409-198708

75135BRACKET, COMBINATION REAR LAMP, RH

main75105-92700iRU75,85,WU9#,YU8#198409-198708

sub75105-37030

main75105-92802iYU8#198409-198708

W/SCHNORKEL TYPE AIR CLEANER

main75105-93100iYU61,63198409-198708

main75135-95412iYU60,62..T3198409-198708

75136BRACKET, COMBINATION REAR LAMP, LH

main75105-92700iRU75,85,WU9#,YU8#198409-198708

sub75105-37030

main75106-92802iYU8#198409-198708

W/SCHNORKEL TYPE AIR CLEANER

main75106-93100iYU61,63198409-198708

main75135-95412iYU60,62..T3198409-198708

75137BRACKET, LICENSE PLATE LAMP

main75137-95400iYU60,62198409-198708

75298PLATE, JACK HOLDER

main75298-95400iYU60,62..T1,T3;RU75,85,YU61,63,7#,8#198409-198708

main75298-95401iWU9#198409-198708

75299BASE, JACK HOLDER

main58790-92600iYU7#..V198508-198708

main75209-95402iYU6#,80..L1,L2,T1,T3198409-198509

sub75299-95400

sub91631-60816

main75209-95403iYU70..V198409-198508

sub75299-95401

main75209-95404iRU75,85198409-198509

sub75299-95402

main75209-95405iWU9#198409-198708

main75299-95400iYU6#,80..WT198509-198708

main75299-95401iYU60,62..(T1,T3)..ST198512-198708

sub75299-37060

main75299-95402iRU75,85198509-198708

main75299-95404iYU60..ARL198604-198708

9003480031

main90034-80031

9015860001

main90158-60001

9026903001

main90269-03001

9095001006

main90950-01006

9161140814

main91611-40814

9161140816

main91611-40816

9161140820

main91611-40820

9162140820

main91621-40820

9165140616

main91651-40616

9165540818

main91655-40818

9327018020

main93270-18020

9331518020

main93315-18020

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9427100800

main94271-00800

9451101000

main94511-01000

29 parts on this diagram · 4 diagrams in section
