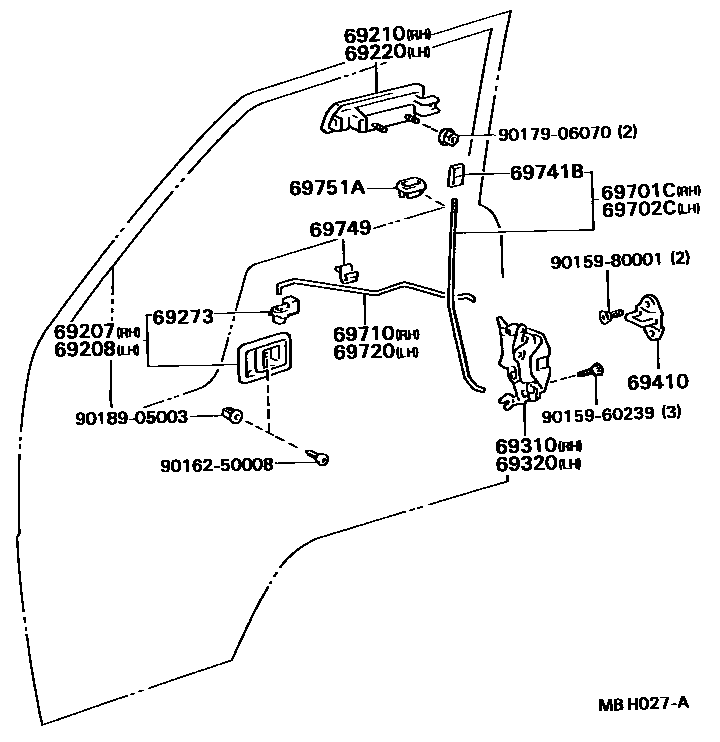

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10040-03iRU75,85,WU9#,YU6#,7#,8#198409-198708

SHADOW GRAY,GRAY

sub69205-10040¥1,440

sub69205-10030¥1,430

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10040-03iRU75,85,WU9#,YU6#,7#,8#198409-198708

SHADOW GRAY,GRAY

sub69206-10040¥1,440

sub69206-10030¥1,430

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95400iRU75,85,WU9#,YU6#,7#,8#¥2,240198409-198708

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95400iRU75,85,WU9#,YU6#,7#,8#¥2,240198409-198708

69273SNAP, DOOR INSIDE HANDLE ROD

main69759-20060iRU75,85,WU9#,YU6#,7#,8#¥240198409-198708

RH

main69759-20070iRU75,85,WU9#,YU6#,7#,8#¥140198409-198708

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-95405iRU75,85,WU9#,YU6#,70,80¥5,300198409-198508

sub69310-95407¥5,300

main69310-95407iRU75,85,WU9#,YU6#,7#,8#¥5,300198508-198708

69320LOCK ASSY, FRONT DOOR, LH

main69320-95405iRU75,85,WU9#,YU6#,70,80¥5,300198409-198508

sub69320-95407¥5,300

main69320-95407iRU75,85,WU9#,YU6#,7#,8#¥5,300198508-198708

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-22020iRU75,85,WU9#,YU6#,7#,8#¥1,090198508-198708

sub69410-89103¥1,050

main69410-89103iRU75,85,WU9#,YU6#,70,80¥1,050198409-198508

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69701-95400-01iRU75,85,WU9#,YU6#,7#,8#198409-198708

BLACK,BLACK

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69702-95400-01iRU75,85,WU9#,YU6#,7#,8#198409-198708

BLACK,BLACK

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-95403iRU75,85,WU9#,YU6#,7#,8#¥620198409-198708

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-95401iRU75,85,WU9#,YU6#,7#,8#¥620198409-198708

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-20020-01iRU75,85,WU9#,YU6#,7#,8#198409-198708

BLACK,BLACK

sub69741-20020¥370

sub69741-32010¥340

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010iRU75,85,WU9#,YU6#,7#,8#¥180198409-198708

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-20031-01iRU75,85,WU9#,YU6#,7#,8#198409-198708

BLACK,BLACK

sub69751-20031¥330

9015960239

main90159-60239¥120

9015980001

main90159-80001¥120

9016250008

main90162-50008¥70

9017906070

main90179-06070¥180

9018905003

main90189-05003¥130

20 parts on this diagram · 1 diagram in section
