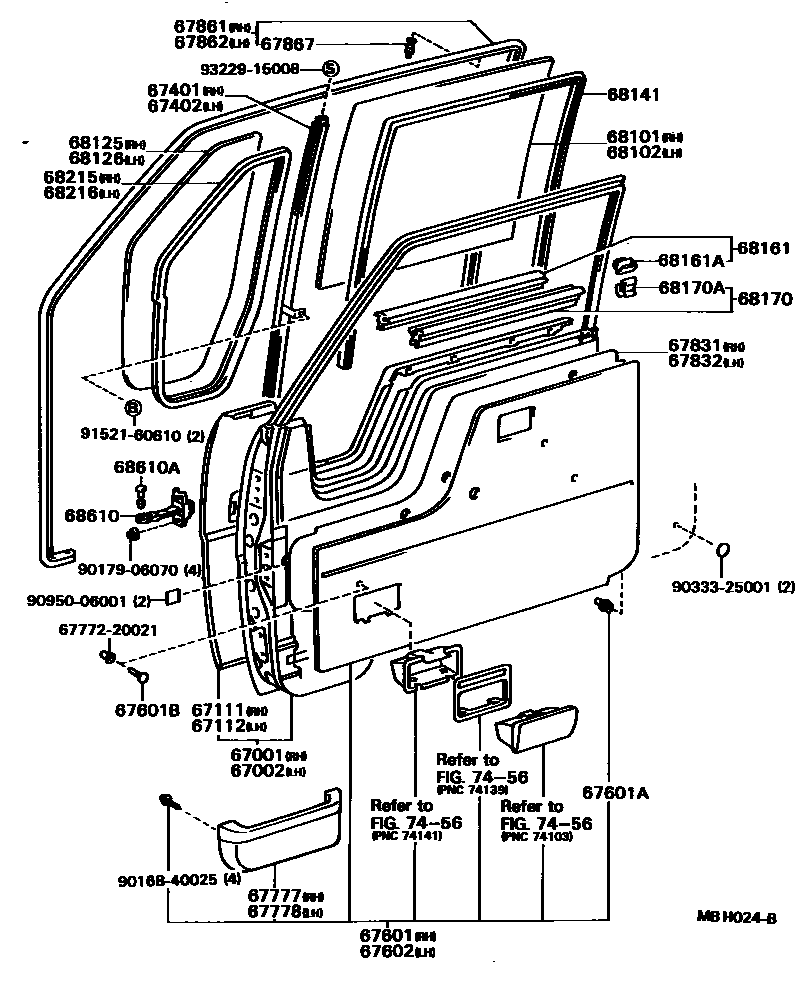

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95421iRU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA198409-198701

sub67001-95424

main67001-95422iYU81..LHD..IV3198608-198701

SWITZERLAND SPEC

sub67001-95425

main67001-95422iYU60..EUR198409-198608

sub67001-95425

main67001-95423iRU75,85,WU9#..LHD198409-198701

W/ASH TRAY

sub67001-95424

main67001-95424iRU75,85,WU9#,YU6#,71,81198701-198708

sub67001-95433

sub69751-95400

main67001-95425iYU81..LHD..IV3198701-198708

SWITZERLAND SPEC

sub67001-95434

sub69751-95400

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95425iRU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA198409-198701

sub67002-95429

main67002-95426iYU60..EUR198409-198608

sub67002-95430

main67002-95426iYU81..LHD..IV3198608-198701

SWITZERLAND SPEC

sub67002-95430

main67002-95428iWU90..RHD..GEN198409-198701

W/ASH TRAY

sub67002-95429

main67002-95429iRU75,85,WU9#,YU6#,71,81198701-198708

sub67002-95439

sub69751-95400

main67002-95430iYU81..LHD..IV3198701-198708

SWITZERLAND SPEC

sub67002-95440

sub69751-95400

67111PANEL, FRONT DOOR, OUTER RH

main67111-95406iRU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA198409-198708

sub67111-95407

main67111-95407iYU60..EUR198409-198608

sub67111-37020

main67111-95407iYU81..LHD..IV3198608-198708

SWITZERLAND SPEC

sub67111-37020

67112PANEL, FRONT DOOR, OUTER LH

main67112-95405iRU75,85,WU9#,YU6#,7#,8#..ARL,GEN,SA198409-198708

sub67112-95406

main67112-95406iYU60..EUR198409-198608

sub67112-37020

main67112-95406iYU81..LHD..IV3198608-198708

SWITZERLAND SPEC

sub67112-37020

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67503-95400iRU75,85,WU9#,YU6#,7#,8#198409-198708

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67504-95400iRU75,85,WU9#,YU6#,7#,8#198409-198708

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95019-03iRU75,85,WU9#,YU6#,7#,8#198508-198708

SHADOW GRAY,SHADOW GRAY

sub67610-95022

main67610-95022-03iWU9#,YU60,62,8#..RHD198508-198708

W/POCKET,SHADOW GRAY,SHADOW GRAY

main67610-95409-03iRU75,85,WU9#,YU6#,70,80198409-198508

SHADOW GRAY,SHADOW GRAY

main67610-95411-03iRU75,85,WU9#..LHD198409-198508

W/ASH TRAY,SHADOW GRAY,SHADOW GRAY

main67610-95412-03iRU75,85,WU9#..LHD198508-198708

W/ASH TRAY,POCKET,SHADOW GRAY,SHADOW GRAY

sub67610-95411

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020iRU75,85,WU9#,YU6#,7#,8#198409-198708

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07041-03iRU75,85,WU9#..ARL,GEN198409-198708

SHADOW GRAY,GRAY

sub90467-07041

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95022-03iYU6#,7#,8#198508-198708

SHADOW GRAY,SHADOW GRAY

sub67620-95026

main67620-95026-03iRU75,85,WU9#,YU6#,7#,8#..LHD198508-198708

W/POCKET,SHADOW GRAY,SHADOW GRAY

sub67620-95026

main67620-95415-03iRU75,85,WU9#..GEN,SA198409-198508

SHADOW GRAY,SHADOW GRAY

main67620-95418-03iWU90..ARL,GEN198409-198508

W/ASH TRAY,SHADOW GRAY,SHADOW GRAY

main67620-95419-03iWU90..ARL198508-198708

SHADOW GRAY,SHADOW GRAY

sub67620-95418

main67620-95419-03iWU90..ARL198508-198708

W/ASH TRAY,POCKET,SHADOW GRAY,SHADOW GRAY

sub67620-95418

67777POCKET, FRONT DOOR TRIM, RH

main67778-22030-23iRU85,WU9#,YU60,62,8#..RHD198508-198708

SHADOW GRAY,SHADOW GRAY

sub67778-22030

67778POCKET, FRONT DOOR TRIM, LH

main67777-22040-23iRU75,85,WU9#,YU6#,7#,8#..LHD198508-198708

SHADOW GRAY,SHADOW GRAY

sub67777-22040

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95404iRU75,85,WU9#,YU6#,7#,8#198409-198708

main67831-95405iRU75,85,WU9#..LHD198409-198708

W/ASH TRAY

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95404iYU60,62;RU75,85,WU9#,YU61,63,7#,8#..GEN,SA198409-198708

main67832-95406iWU90..RHD..GEN198409-198708

W/ASH TRAY

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95406iRU75,85,WU9#,YU6#,70,80..ARL,GEN,SA198409-198708

sub67861-37010

main67861-95407iYU60..EUR198409-198508

sub67861-95406

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95406iRU75,85,WU9#,YU6#,70,80..ARL,GEN,SA198409-198708

sub67862-37010

main67862-95407iYU60..EUR198409-198508

sub67862-95406

67867CLIP, DOOR WEATHERSTRIP

main67867-89103iRU75,85,WU9#,YU6#,7#,8#198508-198708

LH

main67867-95401iRU75,85,WU9#,YU6#,70,80198409-198508

LH,WHITE

main67868-30040iRU75,85,WU9#,YU6#,70,80198409-198508

NATURAL

main67868-89101iRU75,85,WU9#,YU6#,7#,8#198508-198708

RH

sub67867-89103

main67868-95401iRU75,85,WU9#,YU6#,70,80198409-198508

RH,WHITE

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95406iRU75,85,WU9#,YU6#,7#,8#198409-198708

*TEM,T=4.0,*TEM,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95406iRU75,85,WU9#,YU6#,7#,8#198409-198708

*TEM,T=4.0,*TEM,T=4.0

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-95400iRU75,85,WU9#,YU6#,7#,8#198409-198708

*TEM,T=3.5

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-95400iRU75,85,WU9#,YU6#,7#,8#198409-198708

*TEM,T=3.5

sub68126-37020

68141RUN, FRONT DOOR GLASS

main68141-95406iRU75,85,WU9#,YU6#,70,80198409-198607

sub68141-95407

main68141-95407iRU75,85,WU9#,YU6#,7#,8#198607-198708

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-95402iRU75,85,WU9#,YU6#,7#,8#198409-198708

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-30080iRU75,85,WU9#,YU6#,7#,8#198409-198708

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95406iRU75,85,WU9#,YU6#,7#,8#198409-198708

RH

sub68171-95408

main68172-95402iRU75,85,WU9#,YU6#,7#,8#198409-198708

LH

sub68172-95405

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080iRU75,85,WU9#,YU6#,7#,8#198409-198708

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-95402iRU75,85,WU9#,YU6#,7#,8#198409-198708

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-95402iRU75,85,WU9#,YU6#,7#,8#198409-198708

68610CHECK ASSY, FRONT DOOR

main68610-95400iRU75,85,WU9#,YU6#,7#,8#198409-198708

68610APIN(FOR FRONT DOOR CHECK)

main68617-12010iRU75,85,WU9#,YU6#,70,80198409-198507

sub68617-90A00

main68617-90A00iRU75,85,WU9#,YU6#,7#,8#198507-198708

sub68617-90A01

7456

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9016840025

main90168-40025

9017906070

main90179-06070

9033325001

main90333-25001

9095006001

main90950-06001

9152160610

main91521-60610

9322915008

main93229-15008

38 parts on this diagram · 1 diagram in section
