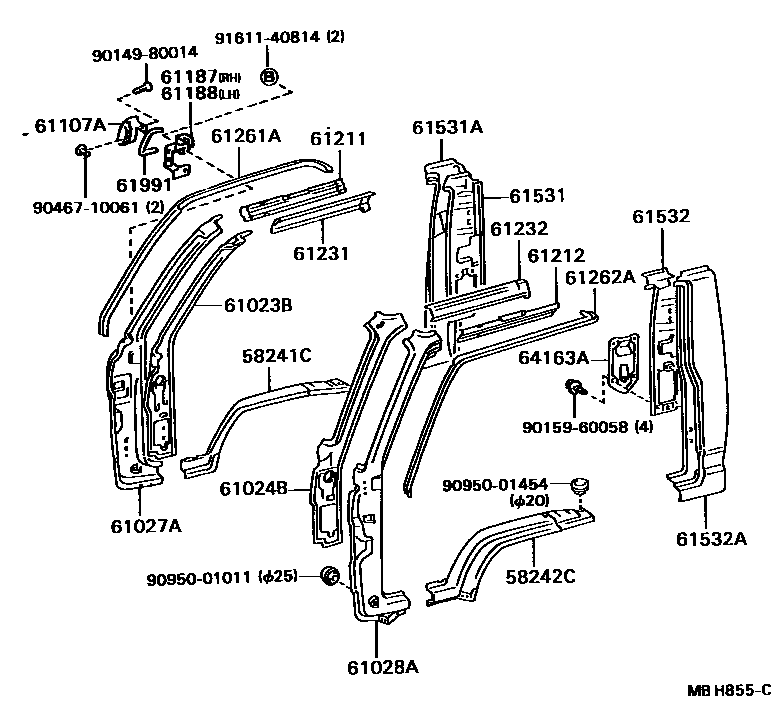

SIDE MEMBER

0001 1 0002 1 0003 1

58241CPANEL, FLOOR SIDE, RH

main58011-95444iWU9#,YU8#..SA198409-198708

sub58011-37010

main58011-95445iYU60..EUR198409-198608

main58011-95445iYU81..LHD..IV3198608-198708

SWITZERLAND SPEC

main58241-92603iYU7#;YU60,62..TW1198409-198708

sub58241-37020

58242CPANEL, FLOOR SIDE, LH

main58012-95440iWU9#,YU8#..SA198409-198708

sub58012-37010

main58012-95441iYU81..LHD..IV3198608-198708

SWITZERLAND SPEC

main58012-95441iYU60..EUR198409-198608

main58242-92603iYU7#;YU60,62..TW1198409-198708

sub58242-37030

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iRU85,WU9#,YU60,62,8#..RHD198409-198708

main61023-95401iRU75,85,WU9#,YU6#,7#,8#..LHD198409-198708

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iRU85,WU9#,YU60,62,8#..RHD198409-198708

sub61024-95403

main61024-95401iRU75,85,WU9#,YU6#,7#,8#..LHD198409-198708

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95400iRU85,WU9#,YU60,62,8#..RHD198409-198708

W/RADIO

sub61027-37010

main61027-95401iRU75,85,WU9#,YU6#,7#,8#198409-198708

sub61027-37020

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95400iRU75,85,WU9#,YU6#,70,80198409-198708

sub61028-37030

main61028-95401iRU75,85,WU9#,YU6#,7#,8#..LHD198409-198708

W/RADIO

sub61028-37040

61107ACOVER SUB-ASSY, FRONT PILLAR DOOR HINGE

main61107-95415iWU90,YU60,62..ARL198409-198708

RH

main61108-95416iWU90,YU60,62..ARL198409-198708

LH

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iWU90,YU60,62..ARL198409-198708

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iWU90,YU60,62..ARL198409-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iRU75,85,WU9#,YU6#,8#198409-198708

LWR

main61225-92601iYU7#198409-198708

UPR

sub61225-37020

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iRU75,85,WU9#,YU6#,8#198409-198708

LWR

main61226-92601iYU7#198409-198708

UPR

sub61226-37020

61231RAIL, ROOF SIDE, INNER RH

main61231-92600iYU7#;YU60,62..TW1198508-198708

main61231-92601iYU70;YU60..TW1198409-198508

main61231-95405iRU75,85,WU9#,YU6#,80..L2,T1,T3198409-198708

main61231-95406iRU75,85,WU9#,YU6#,8#..LHD..(L1,L2,T1,T3)198508-198708

61232RAIL, ROOF SIDE, INNER LH

main61232-92601iYU60,62..TW1198409-198708

main61232-95405iYU60..T1,T3;RU75,85,WU9#,YU61,70,80198409-198708

sub61232-95406

main61232-95406iRU85,WU9#,YU60,62,8#..RHD198508-198708

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61261-92600iYU7#198409-198708

main61261-92601iYU60,62..TW1198409-198708

main61261-95404iRU75,85,WU9#,YU6#,8#..L1,L2,T1,T3198409-198708

main61261-95406iWU9#..LHD..IV3198610-198708

PORTUGAL SPEC

sub61261-95407

sub61267-95400

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61262-92600iYU7#198409-198708

main61262-92601iYU60,62..TW1198409-198708

main61262-95404iRU75,85,WU9#,YU6#,8#..L1,L2,T1,T3198409-198708

main61262-95406iWU9#..LHD..IV3198610-198708

PORTUGAL SPEC

sub61262-95407

sub61268-95400

61531PANEL, BACK CORNER, INNER RH

main64015-95400iYU6#,8#..(L1,L2,T1,T3)..(GEN,SA)198409-198708

sub64015-95411

main64015-95401iYU60,62..ARL,EUR198409-198708

W/*ELR

sub64015-95411

main64015-95402iRU75,85,WU9#..GEN,SA198409-198708

main64015-95403iWU9#..GEN..IV3198409-198708

W/*ELR

61531APANEL, BACK CORNER, OUTER RH

main64103-95401iRU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(GEN,SA)198409-198708

sub64103-95403

main64103-95402iYU60..EUR198409-198608

main64103-95403iYU60,62..ARL198409-198708

W/*ELR

main64103-95403iYU60..EUR..CBU198508-198608

main64103-95404iWU9#..GEN..IV3198409-198708

W/*ELR

61532PANEL, BACK CORNER, INNER LH

main64016-95400iYU6#,8#..(L1,L2,T1,T3)..(GEN,SA)198409-198708

sub64016-95404

main64016-95401iYU60,62..ARL,EUR198409-198708

W/*ELR

sub64016-95415

main64016-95402iRU75,85,WU9#..GEN,SA198409-198708

main64016-95403iWU9#..GEN..IV3198409-198708

W/*ELR

main64016-95405iWU95..GEN198409-198708

ALGERIA SPEC

61532APANEL, BACK CORNER, OUTER LH

main64104-95401iRU75,85,WU9#,YU6#,8#..(L1,L2,T1,T3)..(GEN,SA)198409-198708

sub64104-95403

main64104-95402iYU60..EUR198409-198608

main64104-95403iYU60,62..ARL198409-198708

W/*ELR

main64104-95403iYU60..EUR..CBU198508-198608

main64104-95404iWU9#..GEN..IV3198409-198708

W/*ELR

main64104-95406iRU75,85,WU9#,YU8#..LHD198510-198708

*SAA & *47

sub64104-95416

main64104-95406iRU75,85,YU6#,80..LHD..WT..GEN198409-198510

*SAA

sub64104-95416

61991PROTECTOR, FRONT PILLAR DOOR HINGE

main61991-95400iWU90,YU60,62..ARL198409-198708

RH

sub61991-37010

main61992-95400iWU90,YU60,62..ARL198409-198708

LH

sub61992-37010

64163ACOVER, BACK CORNER, INNER

main64163-87302iYU7#;YU60,62..TW1198412-198708

main64163-95403iRU75,85,WU9#,YU6#,70,80..GEN,SA198409-198708

main64163-95404iWU9#..GEN..IV3198409-198708

W/*ELR

9014980014

main90149-80014

9015960058

main90159-60058

9046710061

main90467-10061

9095001011

main90950-01011

9095001454

main90950-01454

9161140814

main91611-40814

27 parts on this diagram · 3 diagrams in section
