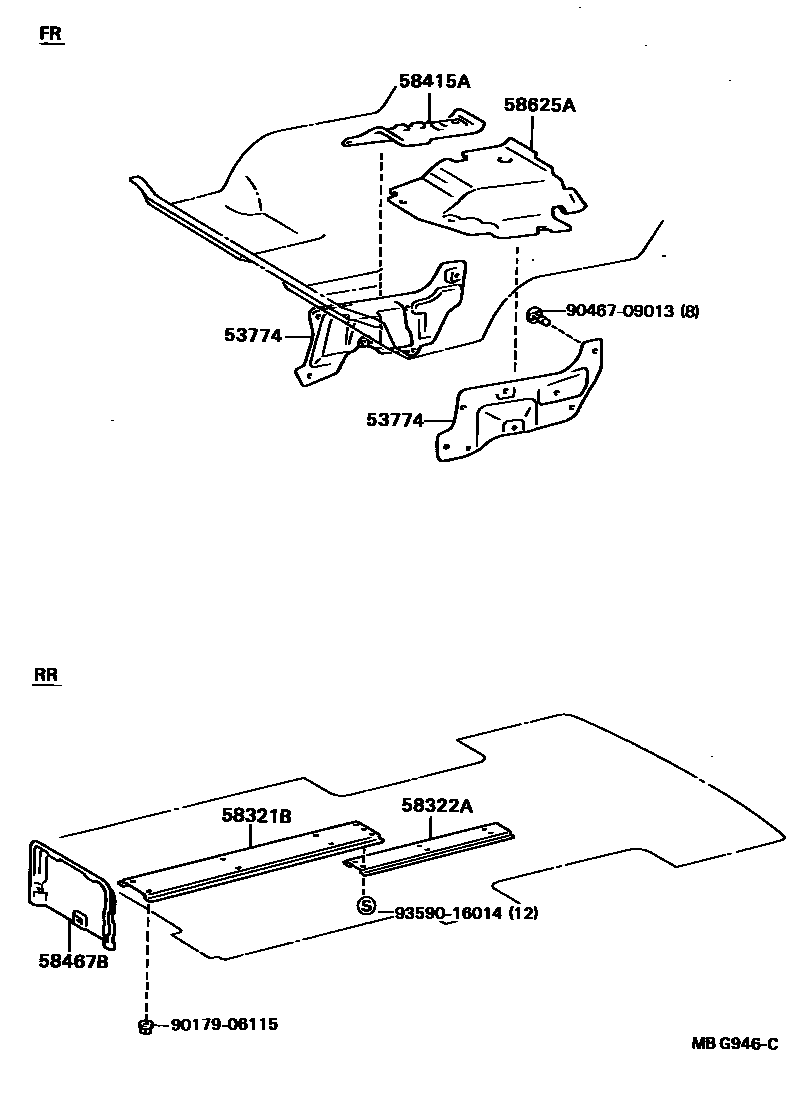

FLOOR INSULATOR

53774INSULATOR, APRON FRONT FENDER

main53774-95400iYU60..EUR¥6,700198409-198708

LH

main53774-95401iWU90..ARL¥7,600198409-198708

LH

main53783-95400iYU81..LHD..IV3¥6,700198409-198708

RH

main53783-95401iWU90..ARL¥7,600198409-198708

RH

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-92602iYU7#¥2,840198409-198708

sub58321-37010¥2,820

58322AINSULATOR, REAR FLOOR HEAT, REAR

main58045-92600iYU7#¥2,830198508-198708

main58322-92601iYU70198409-198508

58415AINSULATOR, SUB-COVER

main59268-95400iWU9#,YU60,80..RHD198409-198508

main59268-95401iRU75,85,WU9#,YU6#,70,80..LHD198409-198608

main59268-95402iRU85,WU9#,YU60,62,8#..RHD¥4,260198508-198708

sub59268-95404¥7,500

main59268-95403iRU75,85,WU9#,YU6#,71,81..LHD¥4,230198608-198708

58467BINSULATOR, MISSION SERVICE HOLE COVER

main58327-92601iYU7#;YU60,62..TW1¥7,600198409-198708

sub58327-37020¥5,700

58625AINSULATOR, ENGINE SERVICE MAIN HOLE COVER

main59258-95400iRU85,WU9#,YU60,62,8#..RHD¥7,600198409-198708

sub59258-95402¥7,900

main59258-95401iRU75,85,WU9#,YU6#,7#,8#..LHD¥7,600198409-198708

9017906115

main90179-06115¥120

9046709013

main90467-09013¥80

9359016014

main93590-16014¥280

9 parts on this diagram · 1 diagram in section
