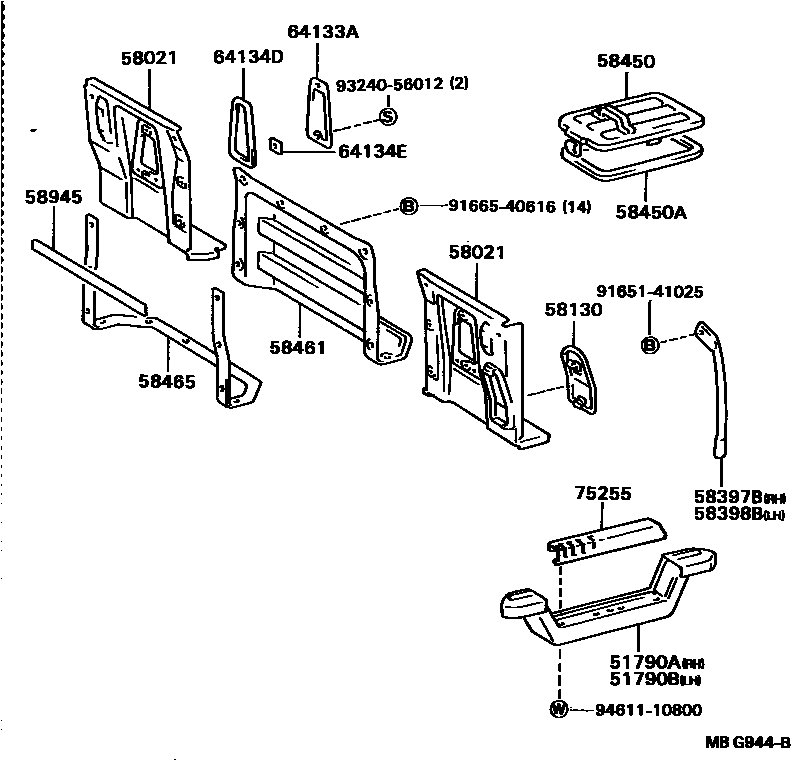

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51790APLATE SUB-ASSY, REAR STEP, RH

51790BPLATE SUB-ASSY, REAR STEP, LH

58021PANEL SUB-ASSY, HEADER

main58021-92602iYU60,62..TW1198409-198708

RH

main58021-92604iYU7#198409-198708

RH

main58022-92602iYU60,62..TW1198409-198708

LH

main58022-92604iYU7#198409-198708

LH

main58022-92607iYU60,62..TW1198409-198708

LH,W/RR HEATER

58130COVER ASSY, RESERVE TANK SERVICE HOLE

main58130-92600iYU7#;YU60,62..TW1198409-198708

58397BSTAY, REAR STEP, RH

main58397-95400iYU60,62..TW1198409-198708

58398BSTAY, REAR STEP, LH

main58398-95400iYU60,62..TW1198409-198708

58450COVER ASSY, BATTERY SERVICE HOLE

main65305-95401iYU60..TW1198409-198508

main65305-95A03iYU60,62..TW1198508-198708

main65306-92605iYU7#198409-198708

58450APACKING, BATTERY SERVICE HOLE COVER

main58414-95400iYU60..TW1198409-198508

main65352-92607iYU7#198409-198708

sub65352-37010

main65352-95A02iYU60,62..TW1198508-198708

58461COVER, TRANSMISSION SERVICE HOLE

main58207-92604iYU60,62..TW1198409-198708

main58207-92605iYU7#198409-198708

sub58207-37020

58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

main58465-92601iYU7#;YU60,62..TW1198409-198708

58945PACKING, TRANSMISSION SERVICE HOLE COVER

main58265-92601iYU7#;YU60,62..TW1198409-198708

64133ACOVER, HEADER PANEL

main64133-95400iYU7#;YU60,62..TW1198409-198708

64134DPACKING, HEADER PANEL COVER

main64134-95400iYU7#;YU60,62..TW1198409-198708

64134ESEAL, HEADER PANEL COVER

main64138-95400iYU7#198409-198708

75255COVER, STEP PLATE REAR, NO.1

main75253-95402iYU60,62..TW1198409-198708

9165141025

main91651-41025

9166540616

main91665-40616

9324056012

main93240-56012

9461110800

main94611-10800

19 parts on this diagram · 2 diagrams in section
