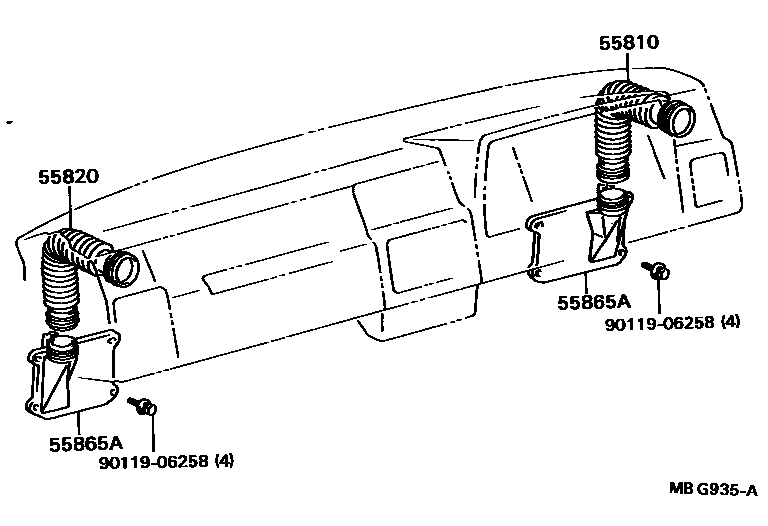

FRONT VENTILATOR

0001 1 0002 1 0003 1

55810DUCT ASSY, SIDE VENTILATOR, RH

main55863-95405iWU90..RHD..GEN198409-198708

55820DUCT ASSY, SIDE VENTILATOR, LH

main55863-95405iWU90..RHD..GEN198409-198708

main55863-95406iRU75,85,WU9#..LHD198409-198708

55865ABOX, INSTRUMENT VENTILATOR

main55084-95400iWU90..RHD..GEN198409-198708

RH

main55084-95400iWU90,YU62,81..RHD..GEN198608-198708

RH,W/FOOT VENTILATOR

main55084-95400iWU90,YU62,81..RHD..GEN198608-198708

LH,W/FOOT VENTILATOR

main55085-95400iRU75,85,WU9#..LHD198409-198708

LH

main55810-95403iRU75,85,WU9#,YU6#,81..LHD198608-198708

RH,W/FOOT VENTILATOR

main55810-95403iRU75,85,WU9#,YU6#,81..LHD198608-198708

LH,W/FOOT VENTILATOR

9011906258

main90119-06258

4 parts on this diagram · 3 diagrams in section
