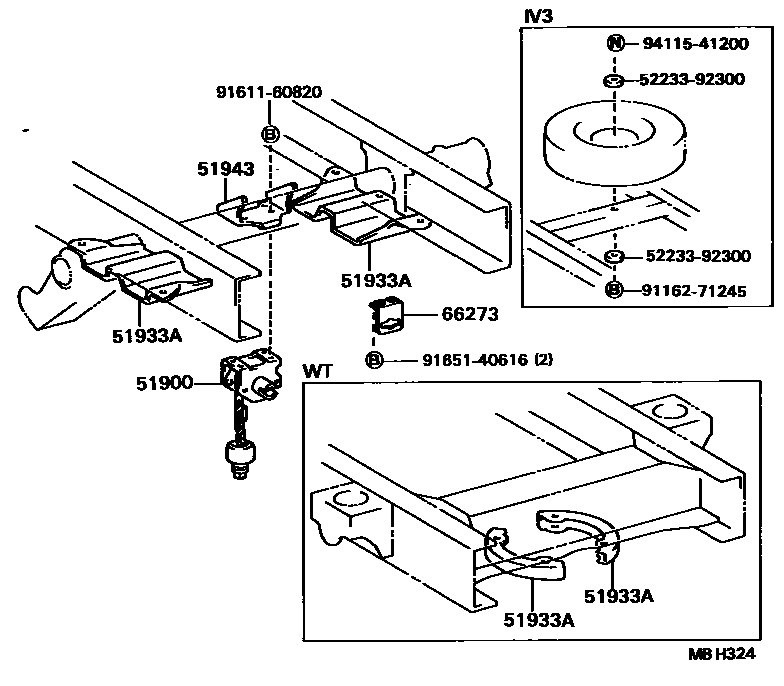

SPARE WHEEL CARRIER

0001 1 0002 1 0003 1

51900CARRIER ASSY, SPARE WHEEL

main51900-36050iWU9#198409-198708

main51900-36080iRU75,85,YU60,70,80198409-198607

sub51900-36100

main51900-36100iRU75,85,YU60,62,7#,8#198607-198708

sub51900-36101

main51900-93100iYU61,63..L2198409-198708

main51900-93101iYU61,63..L1198508-198708

51933BOLT, SPARE WHEEL CARRIER EYE

main51933-93102iYU61,63..L1198508-198708

51933ASTOPPER, SPARE WHEEL, NO.1

main51903-36040iWU9#198409-198708

main51933-36010iRU75,85,YU60,62,8#..WT198409-198708

main51933-36040iYU60,62,7#..ST198409-198708

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-36020iYU60,62,7#..ST198409-198708

main65103-93100iYU61,63..L1198508-198708

RH

main65104-93100iYU61,63..L1198508-198708

LH

66273GUIDE, SPARE TIRE CARRIER

main51923-36010iWU9#198409-198708

main66273-95400iYU60..T1,TW1198409-198601

5223392300WASHER, CAB REAR MOUNTING, UPPER

main52233-92300

9116271245

main91162-71245

9161160820

main91611-60820

9165140616

main91651-40616

9411541200

main94115-41200

10 parts on this diagram · 3 diagrams in section
