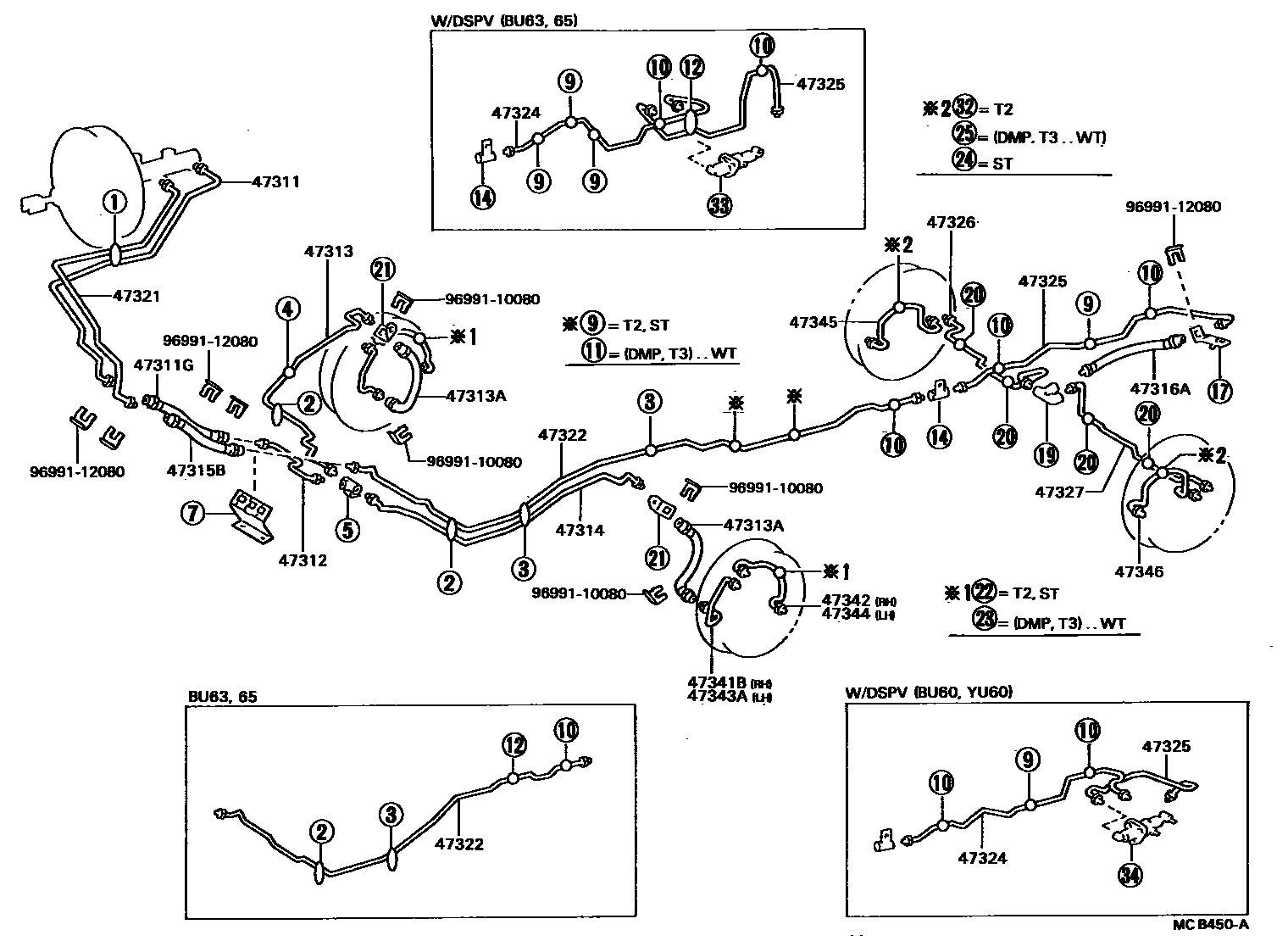

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36290iRU75,85198409-198508

main47311-36300iRU85,WU9#..RHD198409-198708

main47311-36310iRU85,WU9#..LHD198508-198708

main47311-36320iYU60,62,8#..RHD198409-198708

main47311-36330iYU6#,7#,8#..LHD198409-198708

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96932-33705iYU6#,7#,8#198409-198708

main96932-34305iRU75,85,WU9#198409-198708

sub96932-34307

47312TUBE, FRONT BRAKE, NO.2

main47312-36230iRU85,WU9#..RHD198409-198708

sub47312-36231

main47312-36240iRU75,85,WU9#..LHD198409-198708

main47312-36250iYU6#,7#,8#198409-198708

47313TUBE, FRONT BRAKE, NO.3

main47313-36140iRU75,85198409-198508

main47313-36150iWU9#198409-198508

main47313-36160iYU60,62,7#,8#198409-198708

main47313-36170iYU61,63198409-198708

sub47313-36210

main47313-36180iRU75,85198508-198708

main47313-36190iWU9#198508-198708

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02469×2iYU60,62,7#..ST198409-198708

sub90947-02531

main90947-02470×2iYU6#,8#..WT198409-198708

main90947-02471×2iRU75,85,WU9#198409-198708

main96940-33305×2iYU60,62..WT198409-198708

FR DISC

main96940-34005×2iRU75198409-198708

FR DISC

47314TUBE, FRONT BRAKE, NO.4

main47314-36200iRU75,85198409-198508

main47314-36210iWU9#198409-198508

main47314-36230iYU60,62,7#,8#198409-198708

main47314-36240iYU61,63198409-198708

sub47314-36290

main47314-36250iRU75,85198508-198708

main47314-36260iWU9#198508-198708

47315TUBE, FRONT BRAKE, NO.5

main96932-34305

main96932-33705

47315BHOSE, FLEXIBLE(FOR BRAKE TUBE)

main96932-33705iYU6#,7#,8#198409-198708

main96932-34305iRU75,85,WU9#198409-198708

sub96932-34307

47316TUBE, FRONT BRAKE, NO.6

main96912-34005

main96912-34105

main96912-33605

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96912-33605iYU61,63198409-198708

sub96912-33607

main96912-34005iYU60,62,7#,8#198409-198708

main96912-34105iRU75,85,WU9#198409-198708

sub96912-34107

47321TUBE, REAR BRAKE, NO.1

main47321-36190iRU75,85198409-198508

main47321-36200iRU85,WU9#..RHD198409-198708

main47321-36210iWU9#..LHD198409-198508

main47321-36220iYU60,62,8#..RHD198409-198708

main47321-36230iYU6#,7#,8#..LHD198409-198708

47322TUBE, REAR BRAKE, NO.2

main47322-36180iRU75,85,WU9#..LHD198409-198508

main47322-36190iWU9#..RHD198409-198508

main47322-36210iYU60,62,7#,8#..LHD198409-198705

main47322-36211iYU6#,71,81..LHD198705-198707

main47322-36212iYU6#,71,81..LHD198707-198708

main47322-36220iYU61,63198409-198708

main47322-36240iYU60,62,8#..RHD198409-198705

main47322-36241iYU62,81..RHD198705-198708

main47322-36270iRU75,85,WU9#..LHD198508-198708

main47322-36280iRU85,WU9#..RHD198508-198708

47324TUBE, REAR BRAKE, NO.4

main47324-36080iRU85..SA198608-198708

main47324-36090iWU90..ARL,SA198409-198708

main47324-36100iWU95..SA198409-198708

main47324-36110iYU60..EUR198409-198708

main47324-36120iYU60,62..ARL;YU60,62,7#..ST198409-198708

main47324-36150iYU8#..SA198409-198708

47325TUBE, REAR BRAKE, NO.5

main47325-36120iRU75,WU95..GEN198409-198708

main47325-36130iRU85,WU90..ARL,GEN198409-198708

main47325-36150iRU85..SA198608-198708

main47325-36160iWU9#..ARL,SA198409-198708

W/LSPV

main47325-36170iYU60,8#..EUR,SA198409-198708

sub47325-36171

main47325-36180iYU60,62..WT..GEN198409-198708

main47325-36190iYU60,62..ARL;YU60,62,7#..ST198409-198708

main47325-36200iYU61198409-198508

main47325-36240iYU8#..GEN198409-198708

main47325-36250iYU61,63198508-198708

47326TUBE, REAR BRAKE, NO.6

main47326-36130iYU61,63198409-198708

main47326-36140iRU75,YU60,62,8#..WT198409-198708

main47326-36150iRU85,YU60,62,8#..WT..GEN198409-198708

W/12 IN DIFF

main47329-36140iYU60,62,7#..ST198409-198708

main47329-36180iWU9#198409-198708

47327TUBE, REAR BRAKE, NO.7

main47327-36110iYU61,63198409-198708

main47327-36130iYU60,62,7#..ST198409-198708

main47327-36140iRU75,YU60,62,8#..WT198409-198708

main47327-36180iRU85,YU60,62,8#..WT..GEN198409-198708

W/12 IN DIFF

main47331-36210iWU9#198409-198708

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36060iWU9#198409-198708

main47341-36070iYU60,62,7#..ST198409-198708

main47341-36090iRU75,85,YU6#,8#..WT198409-198708

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36020×2iYU60,62,7#..ST198409-198708

main47342-36030iRU75,85,YU6#,8#..WT198409-198708

main47342-36050iWU9#198409-198708

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36060iWU9#198409-198708

main47343-36070iYU60,62,7#..ST198409-198708

main47343-36090iRU75,85,YU6#,8#..WT198409-198708

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36020iYU60,62,7#..ST198409-198708

main47342-36030iRU75,85,YU6#,8#..WT198409-198708

main47342-36050iWU9#198409-198708

47345TUBE, WHEEL CYLINDER, REAR RH

main47342-36050iWU9#198409-198708

main47345-36011iYU60,62,7#..ST198409-198708

main47345-36040×2iRU75,85,YU6#,8#..WT198409-198708

47346TUBE, WHEEL CYLINDER, REAR LH

main47342-36050iWU9#198409-198708

main47345-36011iYU60,62,7#..ST198409-198708

main47345-36040iRU75,85,YU6#,8#..WT198409-198708

9699110080

main96991-10080

9699112080

main96991-12080

24 parts on this diagram · 9 diagrams in section
