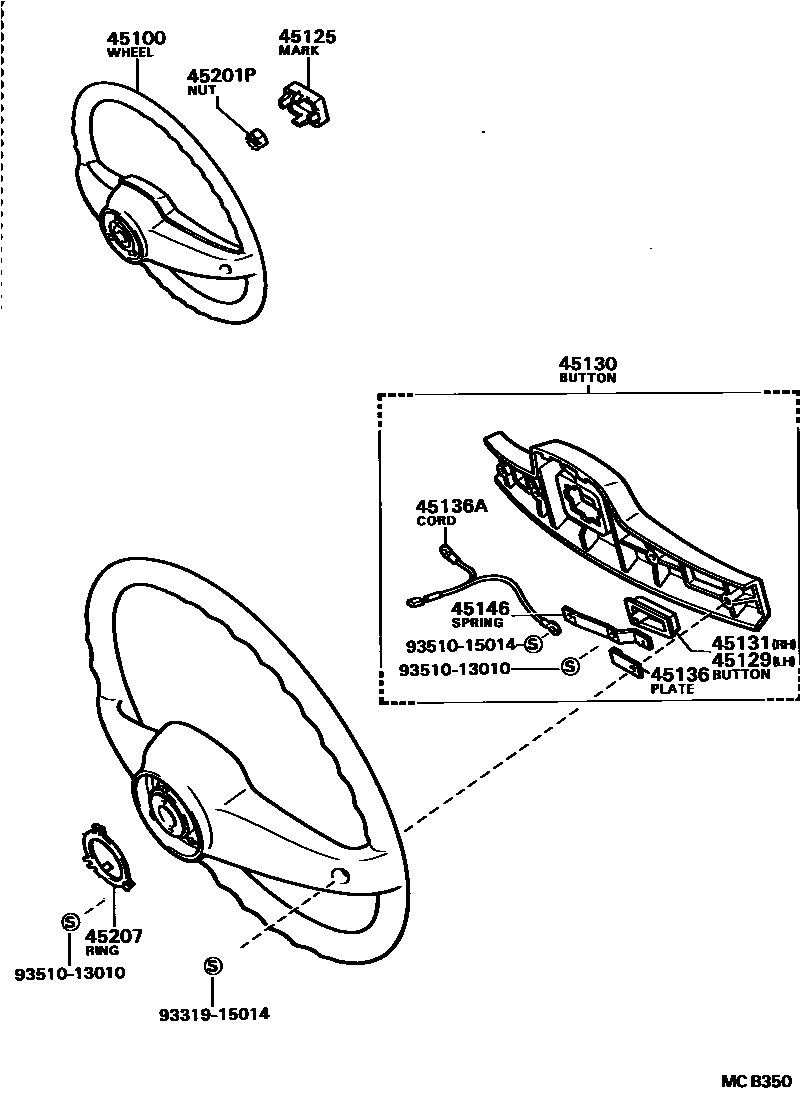

STEERING WHEEL

0001 1W/POWER STEERING 0003 1

45100WHEEL ASSY, STEERING

main45100-25080-01iWU9#..ARL,GEN198508-198708

BLACK

sub45100-25080

main45100-25080-01iWU9#..ARL,GEN198508-198708

W/POWER STEERING,BLACK

sub45100-25080

main45100-36090iWU9#..GEN,SA198409-198708

sub45100-36091

main45100-36100iRU75,85,YU6#,70,80198409-198508

sub45100-25080

45125MARK, STEERING WHEEL PAD

main45125-25030-01iWU9#..ARL,GEN198508-198708

BLACK

sub45125-25030

main45125-36030iRU75,85,YU6#,70,80198409-198508

sub45125-25020

45129BUTTON, HORN, NO.2

main45129-36010iRU75,85,YU6#,7#,8#198409-198708

45130BUTTON ASSY, HORN

main45130-25060-01iRU75,85,YU6#,7#,8#198508-198708

W/POWER STEERING,BLACK

sub45130-25060

main45130-25060-01iRU75,85,YU6#,7#,8#198508-198708

BLACK

sub45130-25060

main45130-36070iWU9#..GEN,SA198409-198708

main45130-36080iRU75,85,YU6#,70,80198409-198508

sub45130-25060

45131BUTTON, HORN, NO.1

main45131-36050iRU75,85,YU6#,7#,8#198409-198708

45136PLATE, HORN BUTTON CONTACT

main45136-26020iRU75,85,YU6#,7#,8#198409-198708

main45136-26020iWU9#..ARL,GEN198508-198708

W/POWER STEERING

main45136-36020iWU9#..GEN,SA198409-198708

45136ACORD(FOR HORN CONTACT RING)

main90945-02013iRU75,85,YU6#,70,80198409-198508

main90945-02040iRU75,85,YU6#,7#,8#198508-198708

45146SPRING, HORN BUTTON CONTACT

main45146-36010iRU75,85,YU6#,7#,8#198409-198708

45201PNUT, STEERING WHEEL SET

main90179-12086iRU75,85,WU9#,YU6#,7#,8#198409-198708

45207RING, HORN CONTACT

main45176-20030iRU75,85,YU6#,7#,8#198409-198708

9331915014

main93319-15014

9351013010

main93510-13010

9351015014

main93510-15014

13 parts on this diagram · 2 diagrams in section
